Bosch NDN-50022-A3 ip dome 1080p hd camera avf
Precio especial $8,934.00 IVA incluido + Envio $150 MXN
Antes $10,363.00
Disponible 0 Pzas
Antes $10,363.00
Disponible 0 Pzas
Agotado
pub
MX0000099269

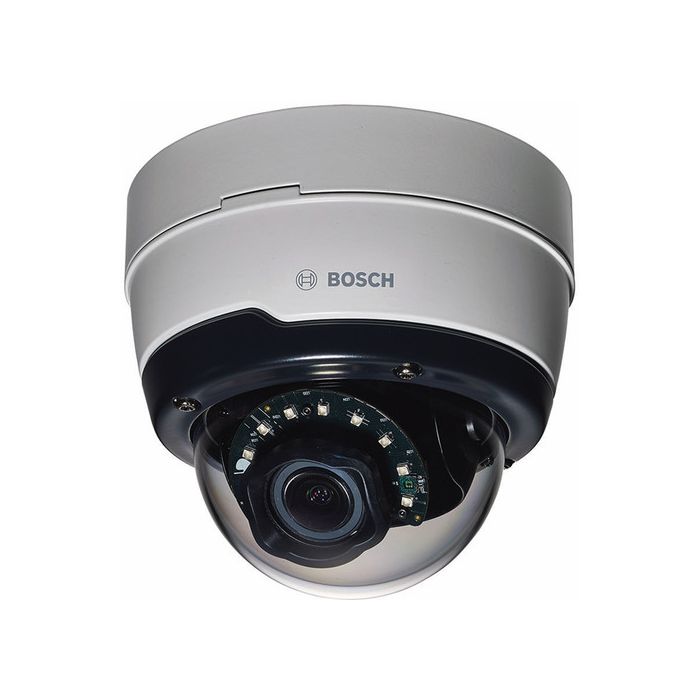

Bosch NDN-50022-A3 FLEXIDOME Outdoor 5000 HD D/N H.264 Vandal-Resistant IP Dome Camera with 3-10mm F1.3 Lens
NDN-50022-A3
Bosch NDN-50022-A3
Sensor
| Sensor Type |
1/2.7' CMOS
|
| Active Pixels |
1952 x 1092 (2 MP)
|
| Sensitivity |
At 3200K, reflectivity 89%, F1.5, 30IRE
Color: 0.24 lux Mono: 0.05 lux |
| Dynamic Range |
76 dB
|
| Video Resolution |
1080p HD: 1920 X 1080
720p HD: 1280 x 720 D1 4:3 (cropped): 704 x 480 SD Upright 9:16 (cropped): 400 x 720 480p SD: Encoding: 704 x 480; Displayed: 854 x 480 432p SD: 768 x 432 288p SD: 512 x 288 240p SD: Encoding: 352 x 240; Displayed: 432 x 240 144p SD: 256 x 144 |
Functions
| Day/Night |
Color, Monochrome, Auto
|
| Adjustable |
Contrast, Saturation, Brightness
|
| White Balance |
4 automatic modes, manual mode and measure
|
| Shutter |
Automatic Electronic Shutter (AES); Fixed (1/12 to 1/15000) selectable; Default shutter
|
| Backlight Compensation |
On/off
|
| Noise Reduction |
Intelligent Dynamic Noise Reduction with separate temporal and spatial adjustments
|
| Contrast Enhancement |
On/off
|
| Sharpness |
Sharpness enhancement level selectable
|
| Defog |
Intelligent Defog automatically adjusts parameters for best picture in foggy or misty scenes (switchable)
|
| Privacy Masking |
Eight independent areas, fully programmable
|
| Video Motion Analysis |
MOTION+
|
| Other Functions |
Image mirror, Image flip, Pixel counter, Video watermarking, Display stamping, Scene modes, Location
|
Optical
| Lens Type |
3 to 10 mm Automatic Varifocal (AVF) lens, IR corrected, DC Iris F1.3 - 360
|
| Lens Mount |
Board mounted
|
| Adjustment |
Motorized zoom/focus
|
| Iris Control |
Automatic iris control
|
| Day/Night |
Switched mechanical IR filter
|
| Maximum HFOV |
36° - 117°
Vertical field of view: 20° - 61° |
Input/Output
| Analog Video Out |
SMB connector, CVBS (PAL/NTSC), 1 Vpp, 75 Ohm
|
| Audio Line In |
0.707 VRMS max, 10 kOhm typical, jack connector
|
| Audio Line Out |
0.707 VRMS at 16 Ohm typical, jack connector
|
| Alarm Input |
1 input
|
| Activation |
Short or 5 VDC activation
|
| Alarm Output |
1 output
|
| Alarm Output |
30 VDC, maximum load 0.5 A
|
| Ethernet |
RJ-45
|
Streaming Performance
| Audio Streaming |
Standard: G.711, 8 kHz sampling rate
L16, 16 kHz sampling rate AAC-LC, 48 kbps at 16 kHz sampling rate AAC-LC, 80 kbps at 16 kHz sampling rate |
| Signal-to-Noise Ratio |
>50 dB
|
| Streaming Method |
Full-duplex / half duplex
|
| Video Streaming |
Video compression: H.264 (MP); MJPEG
|
| Streaming |
Multiple configurable streams in H.264 and MJPEG, configurable frame rate and bandwidth, Regions of Interest (ROI)
|
| Overall IP Delay |
Minimum 120 ms, Maximum 340 ms
|
| GOP Structure |
IP, IBP, IBBP
|
| Interval |
1 to 25 [30] ips
|
| Region |
Eight independent areas for setting encoder quality to optimize bit-rate
|
Local Storage
| RAM |
10 sec pre-alarm recording
|
| Memory Card Slot |
Supports up to 32 GB microSDHC / 2 TB microSDXC card. (An SD card of Class 6 or higher is recommended for HD recording)
|
| Recording |
Continuous recording, ring recording, alarm/ events/schedule recording
|
Software
| Software Features |
Unit discovery: IP Helper
Unit configuration: Via web browser or Configuration Manager Firmware update: Remotely programmable Software viewing: Web browser; Video Security Client; Video Security App; Bosch Video Management System; Bosch Video Client; or third party software |
Network
| Protocols |
IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, MIBII), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, digest authentication
|
| Encryption |
TLS 1.0, SSL, DES, 3DES
|
| Ethernet |
10/100 Base-T, auto-sensing, half/full duplex
|
| Connectivity |
Auto-MDIX
|
| Interoperability |
ONVIF Profile S; GB/T 28181
|
Power
| Input Voltage |
+12 VDC or Power-over-Ethernet (48 VDC nominal)
|
| Power Consumption |
3.8 W maximum
|
| PoE |
IEEE 802.3af (802.3at Type 1)
Power level: Class 2 |
Certifications and Approvals
| Standards |
EN 60950-1
UL 60950-1 UL 60950-22 CAN/CSA-C22.2 NO. 60950-1-03 CAN/CSA-C22.2 NO. 60950-22 EN 50130-4 EN 50130-5 FCC Part15 Subpart B, Class B EMC directive 2004/108/EC EN 55022 class B EN 55024 AS/NZS CISPR 22 (equal to CISPR 22) |
Environmental
| Operating Temperature |
-22 to +122°F (-30 to +50°C)
|
| Storage Temperature |
-22 to +158°F (-30 to +70°C)
|
| Humidity |
20 to 90% relative humidity (non-condensing)
|
Mechanical
| 3-Axis Adjustment |
Pan/Tilt/Rotation: 350/130/330°
|
| Color |
RAL 9004, RAL 9010
|
| Dimensions |
5.71 x 5.14' (145 x 131 mm)
|
| Weight |
Approximately 2.43 lb (1.1 kg)
|
Packaging Info
| Package Weight |
3.75 lb
|
| Box Dimensions (LxWxH) |
8.8 x 7.2 x 6.7'
|
| Marca | Bosch |
|---|---|
| MPN: | NDN-50022-A3 |
