Axis 01004-001 communications m3048-p
Precio especial $4,598.00 IVA incluido + Envio $150 MXN
Antes $5,334.00
Disponible 0 Pzas
Antes $5,334.00
Disponible 0 Pzas
Agotado
pub
MX0000099258

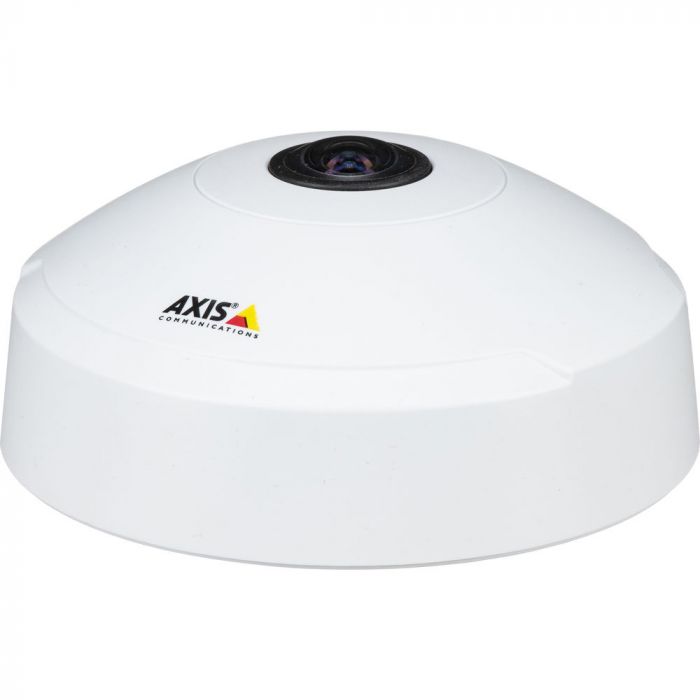

Axis Communications M3048-P 12MP 360° Panoramic Network Mini Dome Camera
01004-001
Camera
| Image Sensor |
12 MP 1/1.7' progressive scan RGB CMOS
|
| Lens |
1.6mm, f/2.8, fixed iris, fixed focus
Horizontal Field of View: 185° Vertical Field of View: 185° |
| Minimum Illumination |
0.35 lux at 50 IRE f/2.8
|
| Shutter Time |
1/25,000 to 1/2 seconds
|
| Camera Angle Adjustment |
Rotation ±180°
|
Video
| Compression |
H.264 (MPEG-4 Part 10/AVC) baseline, main, and high profiles
MJPEG |
| Resolution |
360° Overview: 2880 x 2880 to 480 x 480
Panorama: 2560 x 720 to 640 x 240 Double Panorama: 2560 x 1440 to 480 x 360 Quad View: 2560 x 1440 to 480 x 360 View Area: 2048 x 1152 to 480 x 360 Corner Left or Right: 1920 x 720 to 640 x 240 Double Corner: 1920 x 1440 to 480 x 360 Corridor: 2560 x 1440 to 640 x 360 |
| Frame Rate |
360° overview only, up to 2880 x 2880: 30/25 fps at 60/50 Hz
Dewarped View in Max Resolution + 360° Overview Up to 2048 x 2048: 15/13 fps at 60/50 Hz |
| Streaming |
Multiple, individually configurable streams in H.264 and MJPEG
Axis Zipstream technology in H.264 Controllable frame rate and bandwidth VBR/MBR H.264 HDMI |
| Multi-View Streaming |
360° overview. Dewarped panorama, corridor, corner, and quad views. Two individually cropped out and dewarped view areas.
The 360° overview can be streamed simultaneously with two view areas or one other dewarped view. |
| HDMI Output |
720p at 50/60 fps (50/60 Hz)
|
| Image Settings |
Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, WDR - dynamic contrast, noise reduction, rotation: 0, 180°, text and image overlay, privacy masks, mirroring of images
|
| Pan/Tilt/Zoom |
Digital PTZ of view areas, preset positions, guard tour, digital tilt of panorama, and quad views
|
Network
| Security |
Password protection, IP address filtering, HTTPS encryption, IEEE802.1X network access control, digest authentication, user access log, centralized certificate management
|
| Supported Protocols |
IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, HDMI 1.4b
|
System Integration
| Application Programming Interface |
Open API for software integration, including VAPIX and AXIS Camera Application Platform
AXIS Video Hosting System (AVHS) with One-Click Connection ONVIF Profiles S and G |
| Analytics |
Included
AXIS Video Motion Detection, Active Tampering Alarm Support for AXIS Camera Application Platform enabling installation of third-party applications |
| Event Triggers |
Analytics, edge storage events, virtual inputs through API
|
| Event Actions |
Record video: SD card and Network Share
Upload of Images or Video Clips: FTP, SFTP, HTTP, HTTPS, Network Share, and Email Pre- and post-alarm video or image buffering for recording or upload Notification: Email, HTTP, HTTPS, TCP, and SNMP trap Overlay text |
| Data Streaming |
Event data
|
| Built-In Installation Aids |
Pixel counter
|
General
| Casing |
Aluminum and plastic casing, encapsulated electronics
Color: White NCS S 1002-B |
| Sustainability |
PVC free, 70% recycled plastics
|
| Memory |
1024 MB RAM, 256 MB flash
|
| Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2
Typical 5.6 W, max 6.49 W |
| Connectors |
RJ45 10Base-T/100Base-TX PoE
HDMI type D |
| Storage |
Support for microSD/SDHC/SDXC card
Support for recording to dedicated network-attached storage (NAS) |
| Operating Conditions |
32 to 104°F / 0 to 40°C
Humidity 10-85% RH (non-condensing) |
| Storage Conditions |
40 to 149°F / -40 to 65°C
|
| Approvals |
EMC
EN 55024, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 22 Class A, KCC KN32 Class A, KN35 Safety IEC/EN/UL 62368-1 Environment IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
| Video Management Software |
AXIS Companion, AXIS Camera Station, video management software from Axis Application Development Partners
|
| Languages |
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese
|
| Dimensions |
4 x 1.8' / 101 x 46 mm
|
| Weight |
0.53 lb / 240 g
|
Packaging Info
| Package Weight |
0.8 lb
|
| Box Dimensions (LxWxH) |
5.5 x 4.7 x 2.9'
|
| Marca | Axis |
|---|---|
| MPN: | 01004-001 |
