Avigilon AC-LSP-2DR-MER-LCK two door mercury dual voltage integrated power system supporting ac-mer-cont-1dr or one ac-mer-cont-2dr (mercury hardw
Antes $16,440.00
Disponible 0 Pzas
Two Door Mercury Dual Voltage Integrated Power System supporting two AC-MER-CONT-1DR or one AC-MER-CONT-2DR (Mercury hardware sold separately).
The advantage of a dual voltage power supply is the ability to power both Mercury boards and door locks from the same supply.

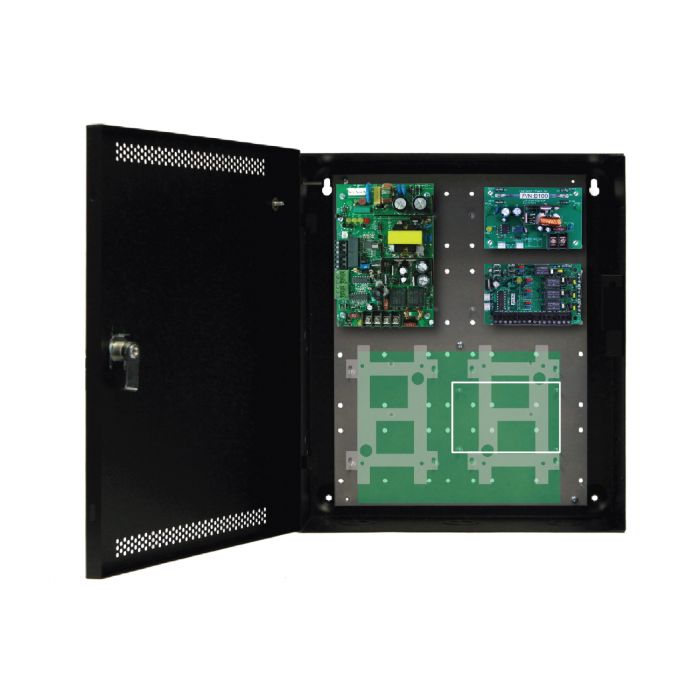

Includes a painted steel enclosure, removable pre drilled back plate, controller standoffs and mounting screws and a 75 watt 12V/2A and 24V/2A power supply-battery charger.
The power supply is pre-wired to four Class 2, Power Limited (CL2PL) outputs (C4P Board) delivering a regulated independent power connection to each Mercury board and lock power and control.
The power supply features dual outputs (12 & 24volts DC), form C fault relay contacts, a fire alarm input and network interface (interface module sold separately) to enable monitoring, reporting and control of the power system from Access Control Manager (ACM) link.
Battery space for two 12V, 8Ah batteries is available in cabinet (unless using two AC-MER-CONT-1DR).
Cabinet size: 12 x 14' x 4.5' with door lock and two (2) keys. Weight 14 lb.
| Informacion tecnica | |
|---|---|
| Propiedades del artículo | |
| numero de puertas | x2 |
| Lugar para el | 1xLP1502 |
| Corriente de voltaje | 230 Vca / 0,7 A / 83 W |
| Color | Negro |
| Dimensiones (alto x ancho x fondo) | 350 x 310 x 115 mm |
| Peso | 6,35 kilos |
| Marca | Unidad de Avigilón |
| Marca | Avigilon |
|---|---|
| MPN: | AC-LSP-2DR-MER-LCK |
