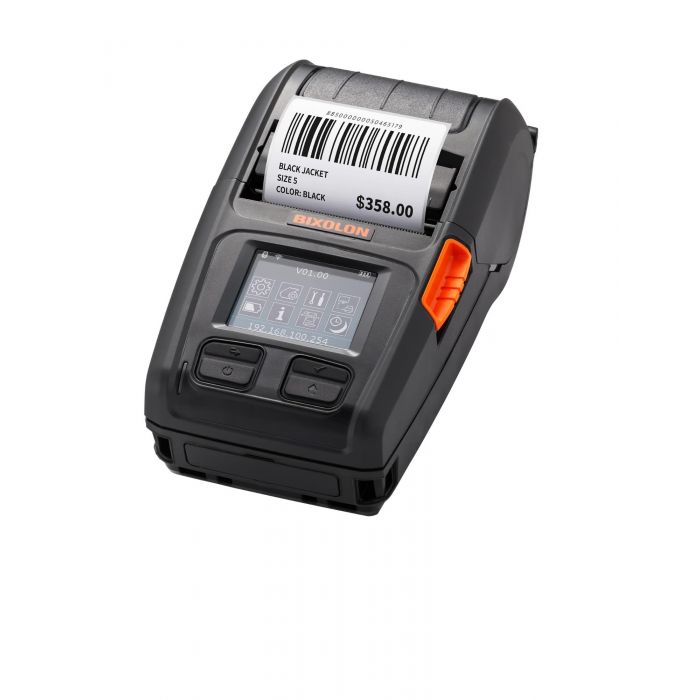

Bixolon XM7-20WK xm7-20 203 x dpi wired & wireless direct thermal mobile printer
Precio especial $15,337.00 IVA incluido + Envio $150 MXN
Antes $17,791.00
Disponible 13 Pzas
Antes $17,791.00
Disponible 13 Pzas
sku: XM7-20WK
pub
MX0000099051
XM7-20WK
Compact yet Resilient
The XM7-20 is a compact, yet rugged 2-inch (58mm) premium level Auto-ID Mobile Liner and Linerless Label printer featuring an intuitive design and value add software support. A premium level printer, capable of speeds up to 6ips at 300dpi print resolution, it provides a drop protection of 2.1 metres and an IP54 protection rating. Through a smart battery with universal USB Type-C Power delivery charging, this mobile label printer provides a wealth of battery health information through BIXOLON’s web-based printer profile management software XPM™, guaranteeing consistent performance throughout prolonged operations, making it ideal for Logistics, Manufacturing, Retail and Healthcare printing applications.
A high connective device, the XM7-20 presents USB 2-0 and Serial interfaces as standard, with optional Bluetooth V5.0 Classic (MFi Certification) and WLAN 802.11a/b/g/n wireless technology which can be connected simultaneously. Supporting easy Bluetooth pairing via NFC allows compatibility with major operations including Android™, iOS™ and Windows™. The printer also boasts compatibility with market leading command languages such as SLCS, BPL-Z™, BPL-C™ and BXL/POS to allow for seamless integration with customers’ existing systems.
Boasting a 128 MB SRAM, 256 MB Flash memory as standard and optional 256 MB SDRAM, 512 MB Flash memory enabling the storage of fonts and graphics, alongside firmware upgrades and tools. The XM7-20 can print directly from SAP® Smart Forms and is compatible with a range of label editing applications including BIXOLON’s Label Artist™, Label Artist Mobile™ for iOS™ & Android™, alongside the industry leading Bartender® software.
The XM7-20 is a compact, yet rugged 2-inch (58mm) premium level Auto-ID Mobile Liner and Linerless Label printer featuring an intuitive design and value add software support. A premium level printer, capable of speeds up to 6ips at 300dpi print resolution, it provides a drop protection of 2.1 metres and an IP54 protection rating. Through a smart battery with universal USB Type-C Power delivery charging, this mobile label printer provides a wealth of battery health information through BIXOLON’s web-based printer profile management software XPM™, guaranteeing consistent performance throughout prolonged operations, making it ideal for Logistics, Manufacturing, Retail and Healthcare printing applications.
A high connective device, the XM7-20 presents USB 2-0 and Serial interfaces as standard, with optional Bluetooth V5.0 Classic (MFi Certification) and WLAN 802.11a/b/g/n wireless technology which can be connected simultaneously. Supporting easy Bluetooth pairing via NFC allows compatibility with major operations including Android™, iOS™ and Windows™. The printer also boasts compatibility with market leading command languages such as SLCS, BPL-Z™, BPL-C™ and BXL/POS to allow for seamless integration with customers’ existing systems.
Boasting a 128 MB SRAM, 256 MB Flash memory as standard and optional 256 MB SDRAM, 512 MB Flash memory enabling the storage of fonts and graphics, alongside firmware upgrades and tools. The XM7-20 can print directly from SAP® Smart Forms and is compatible with a range of label editing applications including BIXOLON’s Label Artist™, Label Artist Mobile™ for iOS™ & Android™, alongside the industry leading Bartender® software.
Technical Information
| Printing | |
|---|---|
| Character sets | 16 BPL-Z, SLCS |
| Type | Mobile printer |
| Print technology | Direct thermal |
| Print speed | 6 ips |
| Print speed | 152 mm/sec |
| Maximum resolution | 203 x 203 DPI |
| Printable dot numbers | 8 dot |
| Performance | |
| Character sets | 16 BPL-Z, SLCS |
| Security algorithms | 40-bit WEP, WPA2, 104-bit WEP, WPA |
| Type | Mobile printer |
| Print technology | Direct thermal |
| Print speed | 6 ips |
| Print speed | 152 mm/sec |
| Maximum resolution | 203 x 203 DPI |
| Built-in barcodes | 1D, 2D, AZTECCODE, CODABAR (NW-7), Codablock, Code 11, Code 39, Code 49, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, GS1 DataBar, IMB, Industrial 2/5, Interleaved 2/5, Logmars, MSI, MaxiCode, MicroPDF417, PDF417, POSTNET, Plessey, QR Code, Standard 2/5, TLC39, UPC-A, UPC-E |
| Paper handling | |
| Media thickness | 0.07 ± 0.19 mm |
| Supported paper width | 25 - 58 mm |
| Maximum roll diameter | 2.24' (5.7 cm) |
| Maximum printing width | 1.89' (4.8 cm) |
| Ports & interfaces | |
| Connectivity technology | Wired & Wireless |
| Bluetooth | No |
| USB port | Yes |
| USB connector | USB Type-C |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Network | |
| Security algorithms | 40-bit WEP, WPA2, 104-bit WEP, WPA |
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Print technology | |
| Type | Mobile printer |
| Print technology | Direct thermal |
| Print speed | 6 ips |
| Print speed | 152 mm/sec |
| Print quality | |
| Maximum resolution | 203 x 203 DPI |
| Maximum printing width | 1.89' (4.8 cm) |
| Technical details | |
| International Protection (IP) code | IP54 |
| Media thickness | 0.07 ± 0.19 mm |
| Display type | LCD |
| Character sets | 16 BPL-Z, SLCS |
| Windows operating systems supported | Yes |
| Security algorithms | 40-bit WEP, WPA2, 104-bit WEP, WPA |
| Mobile operating systems supported | Android, iOS |
| Linux operating systems supported | Yes |
| Maximum printing width | 1.89' (4.8 cm) |
| Product colour | Black |
| Built-in barcodes | 1D, 2D, AZTECCODE, CODABAR (NW-7), Codablock, Code 11, Code 39, Code 49, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, GS1 DataBar, IMB, Industrial 2/5, Interleaved 2/5, Logmars, MSI, MaxiCode, MicroPDF417, PDF417, POSTNET, Plessey, QR Code, Standard 2/5, TLC39, UPC-A, UPC-E |
| Sustainability certificates | ENERGY STAR |
| Harmonized System (HS) code | 84433210 |
| Features | |
| International Protection (IP) code | IP54 |
| Media thickness | 0.07 ± 0.19 mm |
| Character sets | 16 BPL-Z, SLCS |
| Security algorithms | 40-bit WEP, WPA2, 104-bit WEP, WPA |
| Internal memory | 128 MB |
| Flash memory | 256 MB |
| Product colour | Black |
| Built-in barcodes | 1D, 2D, AZTECCODE, CODABAR (NW-7), Codablock, Code 11, Code 39, Code 49, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, GS1 DataBar, IMB, Industrial 2/5, Interleaved 2/5, Logmars, MSI, MaxiCode, MicroPDF417, PDF417, POSTNET, Plessey, QR Code, Standard 2/5, TLC39, UPC-A, UPC-E |
| Page description languages | CPCL-native, ZPL II |
| Storage media | Flash |
| Design | |
| Display type | LCD |
| Colour display | No |
| Display resolution | 240 x 320 pixels |
| Product colour | Black |
| Built-in display | Yes |
| Display | |
| Display type | LCD |
| Colour display | No |
| Display resolution | 240 x 320 pixels |
| Built-in display | Yes |
| Memory | |
| Internal memory | 128 MB |
| Flash memory | 256 MB |
| Power | |
| Power source type | Battery |
| Battery voltage | 7.2 V |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 2850 mAh |
| Operational conditions | |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating temperature (T-T) | -15 - 50 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| System requirements | |
| Windows operating systems supported | Yes |
| Mobile operating systems supported | Android, iOS |
| Linux operating systems supported | Yes |
| Mac compatibility | Yes |
| Weight & dimensions | |
| Width | 3.66' (92.9 mm) |
| Depth | 6.62' (168.2 mm) |
| Height | 2.72' (69.2 mm) |
| Weight | 21.2 oz (600 g) |
| Packaging content | |
| Drivers included | Yes |
| Software | |
| Windows operating systems supported | Yes |
| Mobile operating systems supported | Android, iOS |
| Linux operating systems supported | Yes |
| Mac compatibility | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84433210 |
| Other features | |
| International Protection (IP) code | IP54 |
| Marca | Bixolon |
|---|---|
| MPN: | XM7-20WK |
