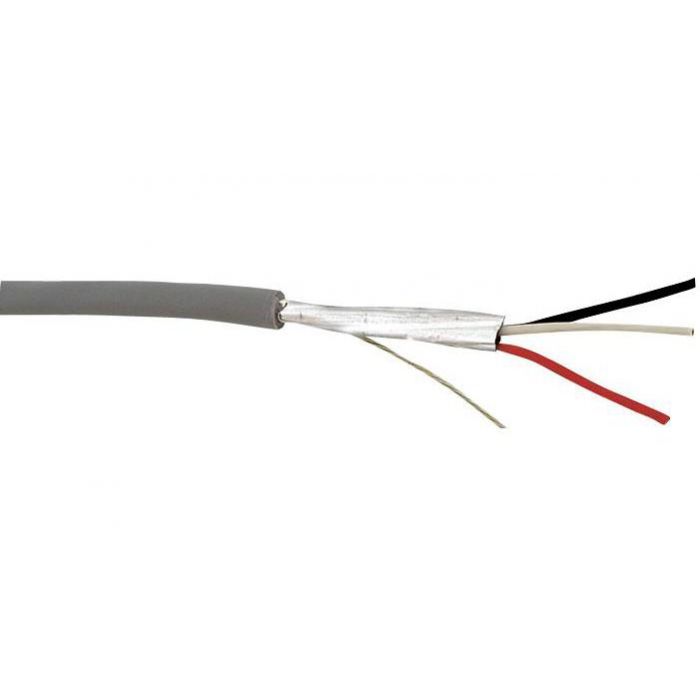

Belden 1036A 0101000 1 triada 18 awg bare coper black 1000f

Precio especial $20,516.00 IVA incluido + Envio $150 MXN
Antes $23,799.00
Disponible 10 Pzas
sku: 1036A 0101000
pub
MX0000098988
Precios sujetos a cambios sin previo aviso
Pagos 100% seguros
Entrega Aprox.
Envio Nacional | Condicion: Nuevo
Logo

1036A 0101000

Color Black
Putup Type Reel
Length 1,000 ft
UPC 612825105152
Footnote C

Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, …),RTD, control circuits, distributed control system (DCS),programmable logic controller (PLC), Solenoids, Valves, actuators, positioners

Mechanical Characteristics
TEMPERATURE
UL Temperature Operating
105°C -30°C to +105°C
BEND RADIUS
Stationary Min. Installation Min.
3.2 in (81 mm) 3.2 in (81 mm)

Max. Pull Tension

81 lbs (37 kg)

Bulk Cable Weight

38 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial

Flammability / Reaction to Fire

UL 1685 FT4 Loading, FT4, IEEE 1202 FT4

NEC / UL Compliance

Article 725, Article 727, Article 800, CMG, ITC, PLTC

AWM Compliance

AWM 2464

CEC / C(UL) Compliance

CMG

European Directive Compliance

EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Más información
MarcaBelden
MPN:1036A 0101000
