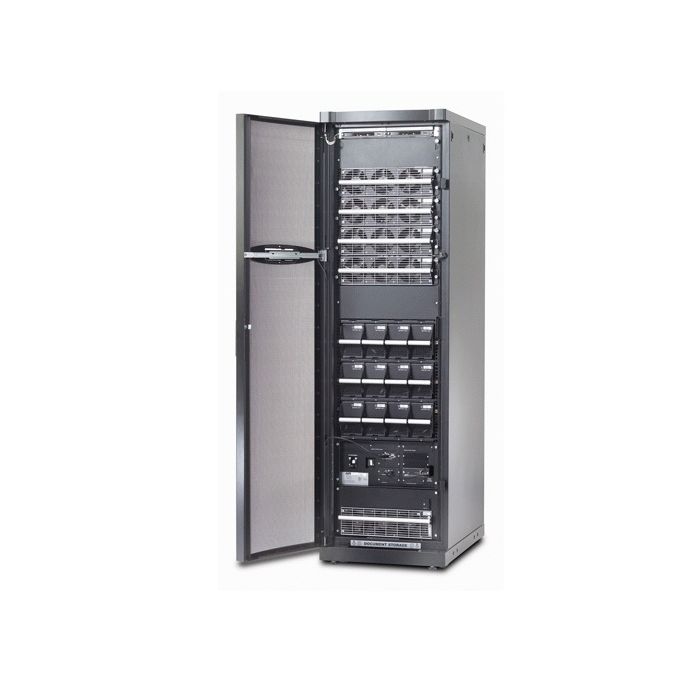

Schneider Electric SY30K40F apc symmetra px 30kw scalable to 40kw rack-mountable ups 30 kva 30000 w
Precio especial $799,384.00 IVA incluido + Envio $150 MXN
Antes $927,285.00
Disponible 0 Pzas
Antes $927,285.00
Disponible 0 Pzas
Agotado
pub
MX0000098952
SY30K40F
- Provides high availabilty through redundancy by allowing configuration with one more Power Module than is necessary to support the connected load. - Provides higher availability to the UPS connected loads by giving redundant communication paths to critical UPS functions. - Enhances availability by allowing immediate, seamless recovery from isolated module failures. - Delivers higher availability through redundant batteries. - Ensures clean, uninterrupted power to protected equipment during Power Module replacement. - Ensures clean, uninterrupted power to protected equipment during Intelligence Module replacement. - Ensures clean, uninterrupted power to protected equipment while batteries are being replaced - Provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules. - Supplies utility power to the connected loads in the event of a UPS overload condition or fault. - Ensures clean, uninterrupted power to protected equipment when generator power is used. - Periodic battery self-test ensures early detection of a battery that needs to be replaced. - Maximizes battery performance, life, and reliability through intelligent, precision charging. - Reduces preventative maintenance service needs by monitoring the health and status of the external batteries and their expected runtime.
Technical Information
| Power | |
|---|---|
| Output power | 30000 W |
| Emergency Power Off (EPO) | Yes |
| Output power capacity | 30 kVA |
| Input frequency | 60 Hz |
| Ports & interfaces | |
| Cable length | 72' (1.83 m) |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Noise level | 64 dB |
| Audible alarm(s) | Yes |
| Features | |
| Output power | 30000 W |
| Emergency Power Off (EPO) | Yes |
| Noise level | 64 dB |
| Audible alarm(s) | Yes |
| Output power capacity | 30 kVA |
| Input frequency | 60 Hz |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery recharge time | 2 h |
| Typical backup time at half load | 14.2 min |
| Typical backup time at full load | 3.7 min |
| Hot-swap battery | No |
| Replacement battery cartridge | SYBT4 |
| Design | |
| Product colour | Black |
| Cable length | 72' (1.83 m) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2' (0 - 3000 m) |
| Packaging data | |
| Package dimensions (WxDxH) | 29.5 x 41.5 x 91' (749 x 1054 x 2311 mm) |
| Package weight | 1588.4 lbs (720.5 kg) |
| Weight & dimensions | |
| Weight | 1438.1 lbs (652.3 kg) |
| Package weight | 1588.4 lbs (720.5 kg) |
| Other features | |
| Interface | DB-9/RS-232 |
| Input connection type | NEMA 5-15P |
| Dimensions (WxDxH) | 23.6 x 35.5 x 81.5' (600 x 902 x 2070 mm) |
| Package dimensions (WxDxH) | 29.5 x 41.5 x 91' (749 x 1054 x 2311 mm) |
| Mac compatibility | No |
| I/O ports | 1 x RJ-45 |
| Marca | Schneider Electric |
|---|---|
| MPN: | SY30K40F |
