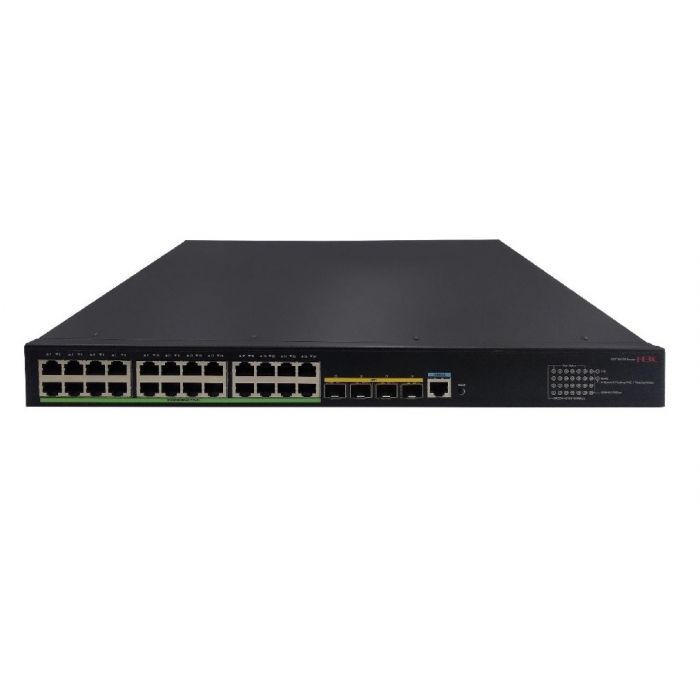

H3c 9801A3PV switch s5170 28s hpwr ei l2 ethernet with 24 10/100/1000base t ports and 4 1g/10g base x sfp plus (ac) poe
Precio especial $14,079.00 IVA incluido + Envio $150 MXN
Antes $16,332.00
Disponible 5 Pzas
Antes $16,332.00
Disponible 5 Pzas
sku: 9801A3PV
pub
MX0000098927
| Specifications | |
| Product Code | 9801A3PV |
| Hardware Specifications | |
| Feature | S5170-28S-HPWR-EI |
| Port Switching capacity(bps) | 128Gbps |
| System Switching Capacity(bps) | 598Gbps |
| Forwarding capacity | 96Mpps |
| Flash | 512M |
| SDRAM | 1G |
| Buffer(byte) | 2M |
| CPU | 1GHz, 2Cores |
| Dimensions (W x D x H) | 440mm x 320mm x 43.6mm |
| Weight | ≤5kg |
| 10/100/1000Base-T port | 24 |
| SFP+ port | 4 |
| Input | AC: |
| voltage | Rated voltage range: 100V~240V AC, 50/60Hz |
| Max voltage range: 90V~ 264V AC, 47~63HZ | |
| Power consumption (full configuration) | 460W (including 370w PoE) |
| Number of Fan | 2 |
| MTBF(Year) | 44.59 |
| MTTR(Hour) | 1 |
| Operating temperature | -5~45°C |
| Storage temperature | -40~+70°C |
| Operating & storage relative humidity (noncondensing) | 5%~95% |
| Software Specifications | |
| Feature | S5170-EI switch series |
| Port aggregation | GE/10GE port aggregation |
| Dynamic aggregation | |
| Static aggregation | |
| Cross-device aggregation | |
| Broadcast/Multicast/Unicast storm suppression | Storm suppression based on port bandwidth percentage |
| Storm suppression based on PPS | |
| Storm suppression based on BPS | |
| Broadcast traffic/Multicast traffic/Unknown unicast traffic suppression | |
| IRF2 | Distributed device management, distributed link aggregation, and distributed resilient routing |
| Stacking through standard Ethernet interfaces | |
| Local device stacking and remote device stacking | |
| MAC address table | Static MAC address |
| Blackhole MAC address | |
| VLAN | Port-based VLAN |
| MAC-based VLAN | |
| Protocol-based VLAN | |
| QinQ and selective QinQ | |
| VLAN mapping | |
| Voice VLAN/Private VLAN/Super VLAN | |
| GVRP | |
| DHCP | DHCP Client |
| DHCP Snooping | |
| DHCP Snooping option82 | |
| DHCP Relay | |
| DHCP Server | |
| DHCP auto-config | |
| IP routing | Static routing |
| RIPv1/v2 and RIPng | |
| OSPFv1/v2 and OSPFv3 | |
| IS-IS | |
| Multicast | IGMP Snooping V2/V3 |
| MLD Snooping | |
| Multicast VLAN | |
| PIM-SM/PIM-SSM/PIM-DM | |
| MSDP | |
| Layer 2 ring network protocol | STP/RSTP/MSTP/PVST/PVST+ |
| Smart Link | |
| RRPP | |
| G.8032 ERPS (Ethernet Ring Protection Switching) | |
| ACL | Packet filtering at Layer 2 through layer 4 Traffic classification based on source MAC addresses, destination MAC addresses, source IPv4/IPv6 addresses |
| Time range-based ACL | |
| VLAN-based ACL | |
| Bidirectional ACL | |
| QoS | Port rate limit (receiving and transmitting) |
| Packet redirection | |
| Committed access rate (CAR) | |
| Eight output queues on each port | |
| Flexible queue scheduling algorithms based on ports and queues, including SP, WRR and SP+WRR | |
| 802.1p DSCP remarking | |
| Traffic statistic | Sflow |
| Mirroring | Port mirroring |
| RSPAN | |
| Security | Hierarchical user management and password protection |
| AAA authentication support | |
| RADIUS authentication | |
| HWTACACS | |
| SSH2.0 | |
| Port isolation | |
| 802.1X authentication, centralized MAC authentication | |
| Port security | |
| Flow control | |
| IP Source Guard | |
| HTTPs | |
| EAD | |
| Management and | Loading and upgrading through XModem/FTP/TFTP |
| maintenance | Zero Touch Provisioning |
| Configuration through CLI, Telnet, and console port | |
| SNMPv1/v2c/v3 and Web-based NMS | |
| Restful | |
| Python | |
| Remote monitoring (RMON) alarm, event, and history recording | |
| IMC NMS | |
| System log, alarming based on severities, and output of debugging information | |
| NTP | |
| Ping, Tracert | |
| Virtual cable test (VCT) | |
| Device link detection protocol (DLDP) | |
| Loopback-detection | |
| EMC | FCC Part 15 Subpart B CLASS A |
| ICES-003 CLASS A | |
| VCCI-CISPR 32 CLASS A | |
| EN 55032 CLASS | |
| AS/NZS CISPR32 CLASS A | |
| CISPR 24 | |
| EN 55024 | |
| EN 61000-3-2 | |
| EN 61000-3-3 | |
| ETSI EN 300 386 | |
| GB/T 9254 | |
| YD/T 993 | |
| Safety | CAN/CSA C22.2 No 60950-1 |
| IEC 60950-1 | |
| EN 60950-1 | |
| AS/NZS 60950-1 | |
| FDA 21 CFR Subchapter J | |
| GB 4943.1 |
| Marca | Otros |
|---|---|
| MPN: | 9801A3PV |
