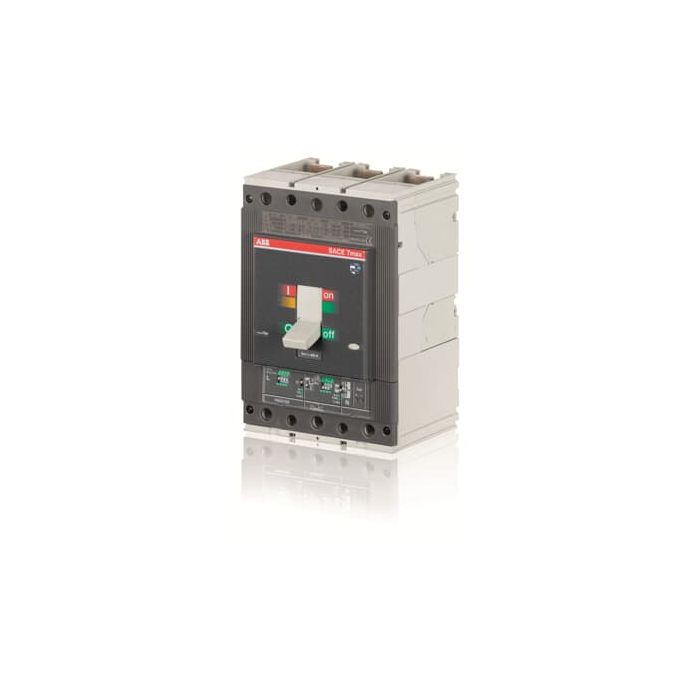

Abb 1SDA054348R1 t5h 320 a relevador pr221ds-lsi 3 polos sin terminales
Precio especial $19,950.00 IVA incluido + Envio $150 MXN
Antes $23,142.00
Disponible 0 Pzas
Antes $23,142.00
Disponible 0 Pzas
Agotado
pub
MX0000098899
1SDA054348R1
| Informacion tecnica | |
Ordering |
|
| E-Number (Finland) | 3655327 |
| EAN | 8015644554460 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
Dimensions |
|
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 5.1 kg |
Container Information |
|
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 5.1 kg |
| Package Level 1 EAN | 8015644554460 |
Additional Information |
|
| Electrical Durability | 7000 cycle ,60 cycles per hour |
| Mechanical Durability | 20000 cycle,120 cycles per hour |
| Number of Poles | 3 |
| Power Loss | at Rated Operating Conditions per Pole 10.6 W |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Rated Current (In) | 320 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA,(230 V AC) 100 kA,(380 V AC) 70 kA,(400 V AC) 70 kA,(415 V AC) 70 kA,(440 V AC) 65 kA,(500 V AC) 50 kA,(690 V AC) 40 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 5 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 100 kA,(230 V AC) 100 kA,(380 V AC) 70 kA,(400 V AC) 70 kA,(415 V AC) 70 kA,(440 V AC) 65 kA,(500 V AC) 50 kA,(690 V AC) 40 kA |
| Rated Uninterrupted Current (Iu) | 400 A |
| Release | PR221DS-LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | H |
| Standards | IEC |
| Sub-type | T5 |
| Suitable For | T5 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Terminal Connection Type | Fixed Circuit-Breakers,Front |
| Test Voltage Max (Utest) | 3500 V |
| Test Voltage at Industrial Frequency for 1 Minute | 3500 V |
| Version | F |
| Marca | Abb |
|---|---|
| MPN: | 1SDA054348R1 |
