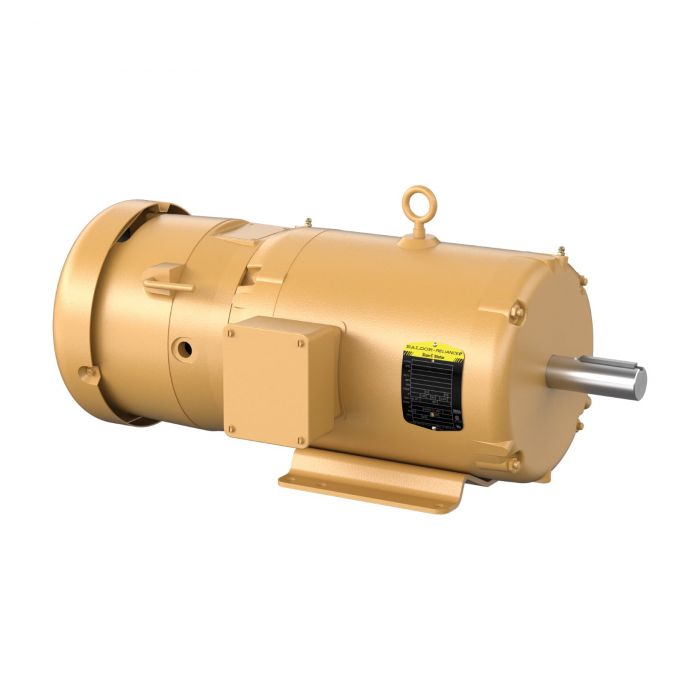

Abb EBM3710T motor de freno, 7.5 hp, 1770 rpm, 3ph, 60hz, tefc, f, baldor -
Precio especial $70,112.00 IVA incluido + Envio $150 MXN
Antes $81,330.00
Disponible 16 Pzas
Antes $81,330.00
Disponible 16 Pzas
sku: EBM3710T
pub
MX0000098898
Interruptores de baja tensión > Interruptor para protección de transformadores, generadores y sistemas
| Informacion tecnica | |
| Catalog Number | EBM3710T |
| Enclosure | TEFC |
| Frame | 213T |
| Frame Material | Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 7.500 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 1800 RPM @ 60 HZ |
| Voltage @ Frequency | 230.0 V @ 60 HZ 460.0 V @ 60 HZ |
| Haz Area Class and Group | None |
| Haz Area Division | Not Applicable |
| Agency Approvals | CSA EEV NEMA PREMIUM NEMA_PREMIUM UR |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Current @ Voltage | 9.500 A @ 460.0 V 20.000 A @ 208.0 V 19.000 A @ 230.0 V |
| Design Code | A |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 91.7 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 9.5 a |
| Front Face Code | Brake Mounting |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Inverter Ready |
| IP Rating | NONE |
| KVA Code | J |
| Lifting Lugs | Standard Lifting Lugs |
| Locked Bearing Indicator | No Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 9 @ 14 AWG |
| Motor Type | 3738M |
| Mounting Arrangement | F1 |
| Number of Poles | 4 |
| Overall Length | 27.20 IN |
| Power Factor | 80 |
| Product Family | General Purpose |
| Product Type | BRAKE MOTOR |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| RoHS Status | ROHS COMPLIANT |
| Service Factor | 1.15 |
| Shaft Diameter | 1.375 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 1770 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
| Marca | Abb |
|---|---|
| MPN: | EBM3710T |
