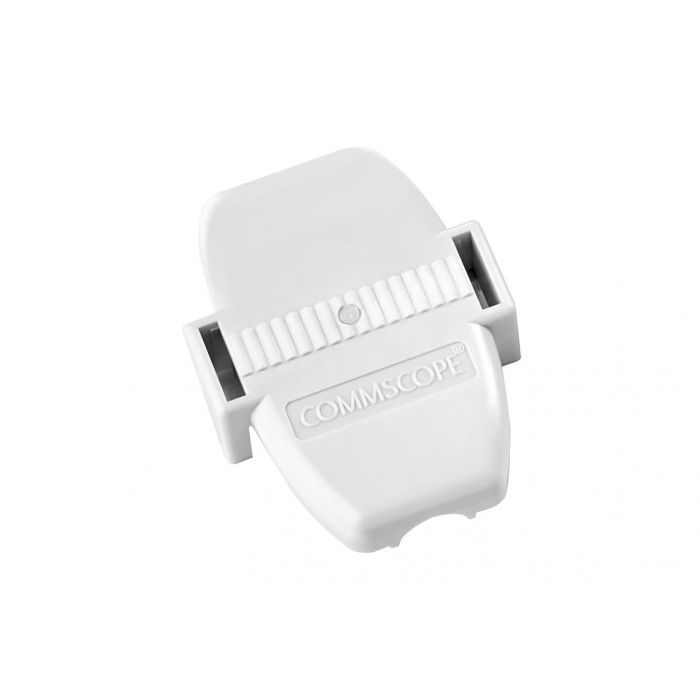

Commscope 760234921 unshielded ceiling connector assembly (cca) without cordage, white
Precio especial $312.00 IVA incluido + Envio $150 MXN
Antes $362.00
Disponible 528 Pzas
Antes $362.00
Disponible 528 Pzas
sku: 760234921
pub
MX0000098572
760234921
Product Classification
Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
Portfolio | CommScope® |
Product Type | Connector kit |
General Specifications
ANSI/TIA Category | 6 | 6A |
Cable Type | U/UTP (unshielded) |
Color | Electrical white |
Conductor Type | Solid | Stranded |
Dimensions
Height | 27.178 mm | 1.07 in |
Width | 35.56 mm | 1.4 in |
Depth | 51.816 mm | 2.04 in |
Compatible Conductor Gauge, solid | 26–22 AWG |
Compatible Conductor Gauge, stranded | 26–22 AWG |
Electrical Specifications
Contact Resistance Variation, maximum | 20 mOhm |
Contact Resistance, maximum | 100 mOhm |
Current Rating at Temperature | 1.5 A @ 20 °C | 1.5 A @ 68 °F |
Dielectric Withstand Voltage, RMS, contact-to-contact | 1,000 Vac @ 60 Hz |
Insulation Resistance, minimum | 500 mOhm |
Material Specifications
Contact Plating Material | Precious metals |
IDC Termination Material | Phosphor Bronze |
Material Type | High-impact, flame retardant, thermoplastic | Phosphor Bronze |
Mechanical Specifications
Plug Insertion Life, minimum | 750 times |
Plug Retention Force, minimum | 44.645 kg/m | 30 lb/ft |
Environmental Specifications
Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
Relative Humidity | Up to 95%, non-condensing |
Environmental Space | Low Smoke Zero Halogen (LSZH) | Plenum |
Flammability Rating | UL 94 V-0 |
Safety Standard | ETL | cETL |
Packaging and Weights
Packaging quantity | 1 |
Regulatory Compliance/Certifications
Agency | Classification |
ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
ROHS | Compliant |
CHINA-ROHS | Below maximum concentration value |
REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
UK-ROHS | Compliant |
Marca | Otros |
---|---|
MPN: | 760234921 |
