Asus RNUC13ANKI50000 intel nuc 13 pro kit nuc13anki5 ucff black i5-1340p
Precio especial $8,743.00 IVA incluido + Envio $150 MXN
Antes $10,142.00
Disponible 0 Pzas
Antes $10,142.00
Disponible 0 Pzas
Agotado
pub
MX0000098551
RNUC13ANKI50000

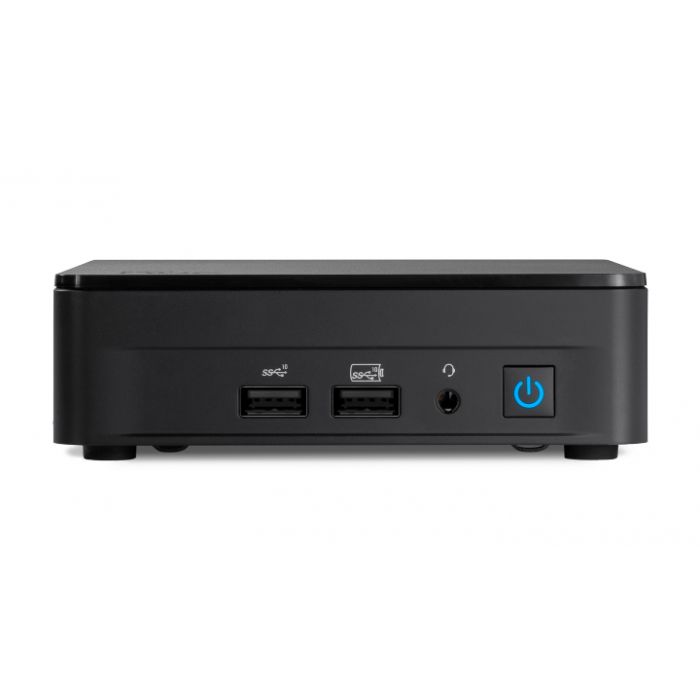

Intel NUC 13 Pro Kit NUC13ANKi5. Chassis type: UCFF, Product type: Mini PC barebone. Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: SSD, Storage drive interface: PCI Express, Serial ATA. Ethernet LAN (RJ-45) ports: 1. Wi-Fi standards: Wi-Fi 6E (802.11ax), Bluetooth version: 5.3. Cooling type: Active
Technical Information
| Motherboard | |
|---|---|
| Motherboard form factor | UCFF |
| Processor | |
| Built-in processor | Yes |
| Processor family | Intel® Core™ i5 |
| Processor model | i5-1340P |
| Processor threads | 16 |
| Processor cores | 12 |
| Processor boost frequency | 4.6 GHz |
| Processor manufacturer | Intel |
| Processor codename | Raptor Lake |
| CPU configuration (max) | 1 |
| Processor cache | 12 MB |
| Performance cores | 4 |
| Efficient cores | 8 |
| Performance-core boost frequency | 4.6 GHz |
| Efficient-core boost frequency | 3.4 GHz |
| Processor generation | 13th gen Intel® Core™ i5 |
| Memory | |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Supported memory types | DDR4-SDRAM |
| Supported memory clock speeds | 3200 MHz |
| Memory voltage | 1.2 V |
| Memory channels | Dual-channel |
| Maximum internal memory | 64 GB |
| ECC | No |
| Non-ECC | Yes |
| Number of DIMM slots | 2 |
| Storage | |
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| Storage drive interface | PCI Express, Serial ATA |
| Number of storage drives supported | 2 |
| SSD form factor | M.2 |
| NVMe | Yes |
| Graphics | |
| On-board graphics card | No |
| Graphics card family | Intel |
| Number of displays supported | 4 |
| Maximum resolution | 7680 x 4320 pixels |
| On-board graphics card model | Intel Iris Xe Graphics |
| Audio | |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Built-in speaker(s) | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| LAN controller | Intel I226-V |
| Bluetooth version | 5.3 |
| Bluetooth | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| Serial port via internal header | No |
| Number of SATA III connectors | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Combo headphone/mic port | Yes |
| M.2 card slot (wireless) | 2230 (E-key) (E) |
| USB ports quantity | 4 |
| M.2 card slot (storage) | 2280 NVMe (M); 2242 SATA (B) |
| Thunderbolt 4 ports quantity | 2 |
| Expansion slots | |
| PCI Express slots version | 4.0 |
| Number of M.2 (M) slots | 1 |
| Design | |
| Chassis type | UCFF |
| ARK ID | 233097 |
| Cooling type | Active |
| Product type | Mini PC barebone |
| On/off switch | Yes |
| Motherboard form factor | UCFF |
| LED indicators | Yes |
| Product colour | Black |
| Product family | Intel NUC |
| Product codename | Arena Canyon |
| Status | Launched |
| Performance | |
| Windows operating systems supported | Windows 10 IoT Enterprise, Windows 11 x64 |
| Operating system installed | No |
| Number of displays supported | 4 |
| Motherboard form factor | UCFF |
| Maximum resolution | 7680 x 4320 pixels |
| Linux operating systems supported | RedHat EL Linux, Yes |
| Compatible operating systems | Windows 10 IoT Enterprise*|Ubuntu*|Linux* |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Harmonized System (HS) code | 8471500150 |
| Export Control Classification Number (ECCN) | 5A992C |
| Software | |
| Operating system installed | No |
| Compatible operating systems | Windows 10 IoT Enterprise*|Ubuntu*|Linux* |
| Processor special features | |
| Intel® Optane™ Memory Ready | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel ME Firmware Version | 16.1 |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Execute Disable Bit | Yes |
| Embedded options available | No |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Logistics data | |
| Harmonized System (HS) code | 8471500150 |
| Power | |
| Power supply type | External AC adapter |
| Weight & dimensions | |
| Width | 4.61' (117 mm) |
| Depth | 4.41' (112 mm) |
| Height | 1.46' (37 mm) |
| Technical details | |
| ARK ID | 233097 |
| Other features | |
| DC input voltage | 12 - 20 V |
| Additional headers | Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector |
| Launch date | Q1’23 |
| Marca | Asus |
|---|---|
| MPN: | RNUC13ANKI50000 |
