Eaton 9PX11KPM modulo de potencia 9px 11000va /10000watts, hardwired 208v
Precio especial $50,862.00 IVA incluido + Envio $150 MXN
Antes $59,000.00
Disponible 3 Pzas
Antes $59,000.00
Disponible 3 Pzas
sku: 9PX11KPM
pub
MX0000098136

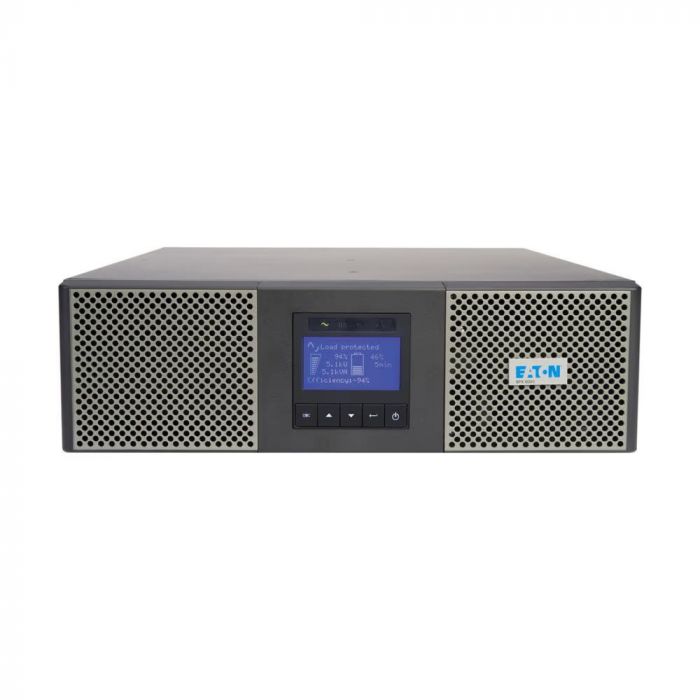

Eaton 9PX power module, Network card included, 3U, 11 kVA, 10 kW, Hardwired input, Outputs: Hardwired, 208V
| Informacion tecnica | |
|---|---|
| GENERAL SPECIFICATIONS | |
| PRODUCT NAME | Eaton 9PX power module |
| CATALOG NUMBER | 9PX11KPM |
| UPC | 743172039262 |
| PRODUCT LENGTH/DEPTH | 27.56 in |
| PRODUCT HEIGHT | 5.1 in |
| PRODUCT WIDTH | 17.3 in |
| PRODUCT WEIGHT | 62 lb |
| WARRANTY | 3 year limited |
| COMPLIANCES | CE Marked FCC Part 15 CISPR22 Class A / FCC part 15 Class A |
| CERTIFICATIONS | cULus Listed IEC 62040-2:2006 Cat C2 NOM ENERGY STAR certified |
| CATALOG NOTES | Add up to 5 extended battery modules (EBM) with UPS; add up to 12 EBMs with SC240RT supercharger module |
| BATTERY | |
| BATTERY MANAGEMENT | ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement) |
| BATTERY TYPE | Sealed, lead-acid |
| EXTENDED BATTERY CAPABILITY | Yes |
| ELECTRICAL OUTPUT | |
| RECEPTACLE | Hardwired |
| TOPOLOGY | Online/Double-conversion |
| WATTAGE | 10 kW |
| VA RATING | 11 kVA |
| OUTPUT WAVEFORM | True sine wave |
| VOLTAGE | 208 V |
| OUTPUT POWER FACTOR | 0.91 |
| OUTPUT NOMINAL VOLTAGE | 208V default (200/208/220/230/240/250V) |
| OUTPUT VOLTAGE RANGE | ±1% steady-state |
| OUTPUT FREQUENCY | 50/60 Hz |
| ELECTRICAL INPUT | |
| INPUT CONNECTION | Hardwired |
| INPUT NOMINAL VOLTAGE | 208V default (200/208/220/230/240/250V) |
| INPUT FREQUENCY RANGE | 60 Hz: 50–70 Hz, 50 Hz: 40–60 Hz |
| INPUT POWER FACTOR | >0.99 typical |
| COMMUNICATIONS | |
| COMMUNICATION | Web/SNMP in MiniSlot expansion port + 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay Communication slot |
| EXPANSION SLOTS | (1) Mini-Slot (MS) expansion port with Gigabit Network Card (NETWORK-M2) included |
| ETHERNET INTERFACE | Yes |
| INCLUDES NETWORK CARD | Yes |
| SOFTWARE COMPATIBILITY | Intelligent Power Software Suite |
| USER INTERFACE | Graphical display, 5-button programmable menu |
| ENVIRONMENTAL | |
| ALTITUDE | <1000m for nominal power, 10% power degrading every 1000m (up to 3000m) |
| BTU RATING | Online: 1920, Battery: 2900 |
| NOISE LEVEL | <45 dB at 1 meter |
| RELATIVE HUMIDITY | 0-95% non-condensing |
| TEMPERATURE RANGE | 0° to 40°C (32° to 104°F) |
| ADDITIONAL SPECIFICATIONS | |
| SPECIAL FEATURES | Gigabit Network Card (NETWORK-M2) included |
| FORM FACTOR | Rack/tower |
| RACK SIZE | 3U |
| RACK MOUNTING KIT | Yes |
| EFFICIENCY | 94% |
| PACKAGE CONTENTS |
|
| INTERNAL BYPASS | Yes |
WARRANTY AND SUPPORT
STANDARD FACTORY WARRANTY
- 3-YEAR FACTORY WARRANTY
- - 3 years
- - Parts, electronics and batteries coverage
- - Standard ground shipping
- - Technical support
EXTENDED SERVICE PLANS
- ADVANCED DEPOT EXCHANGE
- - 5-year depot repair: 9SW5Y-11000UC
- - Expedited parts coverage for 5 years
- - Parts, electronics and UPS batteries coverage
- - Next business day shipping
- - Technical support
- 5-YEAR ON-SITE PLAN: WFLN75XX-11000UC
- - On-site parts and labor coverage for years 5
- - Parts, electronics and UPS batteries coverage
- - 24x7 on-site labor coverage, next-day response
- - Next-day shipping
- - Technical support
| Marca | Eaton |
|---|---|
| MPN: | 9PX11KPM |
