Hoffman M800800300GSS gabinete de montaje en pared serie gl66 304 ss acero inoxidable gris -

Precio especial $24,628.00 IVA incluido + Envio $150 MXN
Antes $28,568.00
Disponible 0 Pzas
Agotado
pub
MX0000098006
Precios sujetos a cambios sin previo aviso
Pagos 100% seguros
Entrega Aprox.
Envio Nacional | Condicion: Nuevo

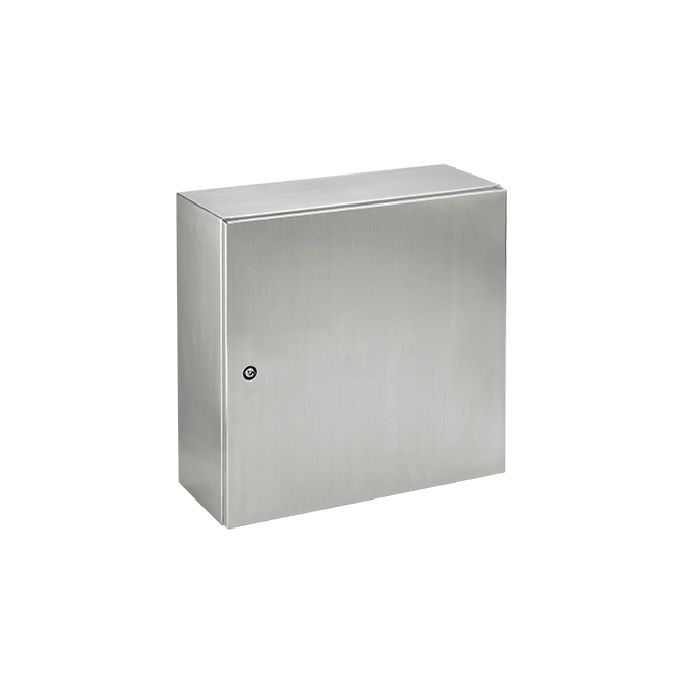

GL66 Wallmount 1/4 Turn Latch Type 4X, 800x800x300mm, Brushed, SS 304

Catalog#: M800800300GSS

With streamlined styling and an attractive finish, these enclosures are an excellent option when style and function are key. Manufactured in Type 304 stainless steel, these enclosures are ideal for indoor or outdoor applications which require corrosion protection from chemicals and water. The enclosures contain an external body flange to prevent contaminants from entering the enclosure; a strong door with removable hinges; a conductive panel and quarter-turn latch with 3mm double-bit insert for a secure closure.

Features

  • Removable hinges and double-bit latch insert
  • Dimensions in millimeters
  • Minimum-width body flange provides maximum body opening
  • Pre-cut gland plate openings in the bottom of the enclosure with a seal to ensure protection
  • External formed 90 degree body flange
  • Door opens 210 degrees
  • Mounting holes in back of body for direct mounting or for optional external mounting brackets
  • Type 316 stainless steel hinge pins
  • Corner-formed doors are easily removed by pulling clip-style hinge pins
  • Quarter-turn latches furnished with 3mm double-bit insert

Article Number 26802
Material Stainless Steel 304
Finish Brushed #3
Color Unpainted
Gland Plate Quantity 2
Height 800 mm
Width 800 mm
Depth 300 mm
Thickness 2 mm
Panel Size 755 x 755 mm
UPC 783510268022
Standard Packaging Quantity 1.0000
Packing Quantity 1.0000



Más información
MarcaHoffman
MPN:M800800300GSS
