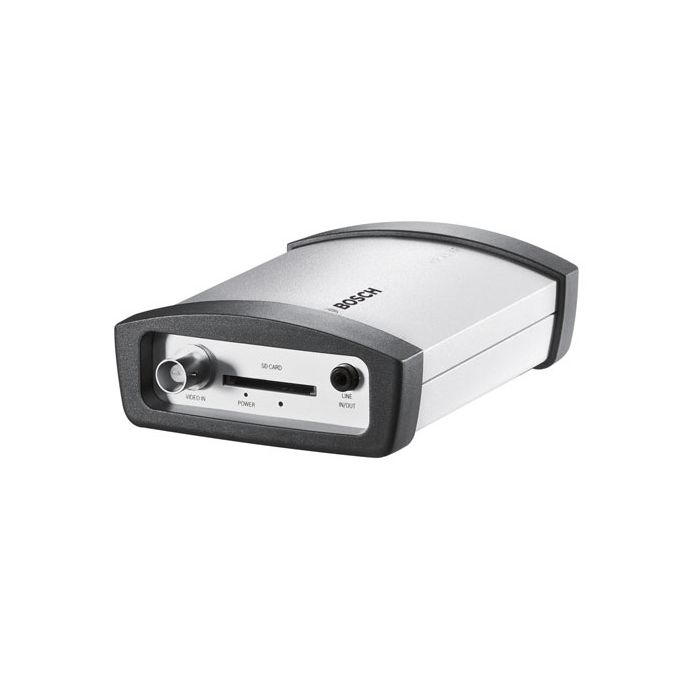

Bosch VIP-X1XF-E vip x1 xf e video servers/encoder 704 x 576 pixels 60 fps
Precio especial $6,311.00 IVA incluido + Envio $150 MXN
Antes $7,321.00
Disponible 13 Pzas
Antes $7,321.00
Disponible 13 Pzas
sku: VIP-X1XF-E
pub
MX0000097897
VIP-X1XF-E
- Single-channel H.264 encoder with Dual Streaming
- SD card and iSCSI recording
- Multicast and Internet streaming
- Alarm input and relay output
- ONVIF conformant
VIP X1 XF E features DVD-like quality H.264 video, at up to 25/30 images per second, over IP networks. The unit supports PAL and NTSC sources and provides a basic motion detector.
The encoder provides bidirectional audio communication in parallel to video.
- SD card and iSCSI recording
- Multicast and Internet streaming
- Alarm input and relay output
- ONVIF conformant
VIP X1 XF E features DVD-like quality H.264 video, at up to 25/30 images per second, over IP networks. The unit supports PAL and NTSC sources and provides a basic motion detector.
The encoder provides bidirectional audio communication in parallel to video.
Technical Information
| Video | |
|---|---|
| Video compression formats | H.264, M-JPEG |
| Maximum video resolution | 704 x 576 pixels |
| Maximum frame rate | 60 fps |
| Performance | |
| PTZ control | No |
| Firmware upgradeable | Yes |
| Bitrate at maximum video resolution | 6 Mbit/s |
| Design | |
| Wall mountable | Yes |
| LED indicators | Activity, Link, Power |
| Certification | UL, CE. |
| Network | |
| Wi-Fi | No |
| Supported network protocols | RTP, Telnet, UDP, TCP, IP, HTTP, HTTPS, FTP, DHCP, IGMP V2/V3, ICMP, ARP, SMTP, SNTP, SNMP, RTSP, 802.1x, iSCSI, DynDNS, UPnP |
| Security | |
| Security algorithms | SSL/TLS |
| Ports & interfaces | |
| RS-232 ports | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| BNC input ports | 1 |
| Power | |
| Power consumption | 300 mA |
| Power requirements | 12 VDC |
| Power consumption (typical) | 3.6 W |
| Weight & dimensions | |
| Weight | 250 g |
| Dimensions (WxDxH) | 88 x 118 x 36 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Technical details | |
| Wall mountable | Yes |
| PTZ control | No |
| Bitrate at maximum video resolution | 6 Mbit/s |
| Certificates | |
| Certification | UL, CE. |
| Indication | |
| LED indicators | Activity, Link, Power |
| Management features | |
| Firmware upgradeable | Yes |
| Marca | Bosch |
|---|---|
| MPN: | VIP-X1XF-E |
