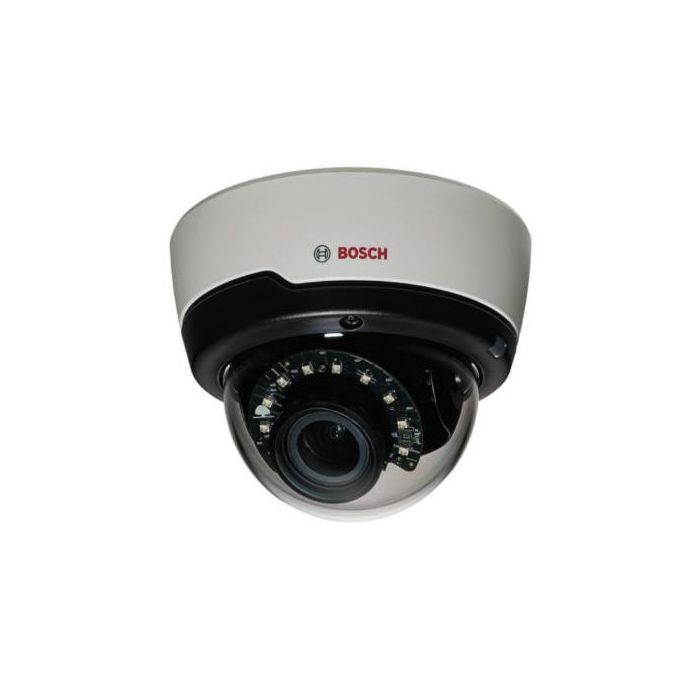

Bosch NIN-50022-A3 flexidome ip indoor 5000 hd dome security camera 1920 x 1080 pixels ceiling/wall
Precio especial $10,274.00 IVA incluido + Envio $150 MXN
Antes $11,918.00
Disponible 1 Pzas
Antes $11,918.00
Disponible 1 Pzas
sku: NIN-50022-A3
pub
MX0000097895
NIN-50022-A3
The HD indoor dome cameras from Bosch are professional surveillance cameras that provide high quality HD images for demanding security and surveillance network requirements. These domes are true day/night cameras offering excellent performance day or night.
There is a version with a built-in active infrared illuminator that provides high performance in extreme low-light environments.
There is a version with a built-in active infrared illuminator that provides high performance in extreme low-light environments.
Technical Information
| Performance | |
|---|---|
| Infrared (IR) cut-off filter | Yes |
| Fog proof | Yes |
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Indoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Certification | EN 60950-1 UL 60950-1 CAN/CSA-C22.2 NO. 60950-1-07 EN 50130-4; EN 50130-5 FCC EMC 2004/108/EC EN 55022 class B EN 55024 VCCI J55022 V2/V3 AS/NZS CISPR 22 ICES-003 Class B EN 50121-4; EN 50121-3-2 EN 50132-5-2; IEC 62676-2-3 CE, FCC, UL, cUL, C-tick, CB, VCCI |
| Design | |
| Fog proof | Yes |
| Form factor | Dome |
| Product colour | Black, White |
| Mounting type | Ceiling/wall |
| Camera | |
| Minimum illumination | 0.05 lx |
| Tilt angle range | 0 - 130° |
| Pan range | 0 - 350° |
| White balance | Auto, Manual |
| Angle of rotation | 330° |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/15000 - 1/12 s |
| Lens viewing angle, horizontal | 117° |
| Lens viewing angle, vertical | 61° |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7') |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 1.3 |
| Focal length range | 3 - 10 mm |
| Night vision | |
| Night vision | No |
| Video | |
| Full HD | Yes |
| Noise reduction | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation |
| Privacy masking | Yes |
| Flip & mirror | Yes |
| Region of Interest (ROI) encoding | Yes |
| Back Light Compensation (BLC) | Yes |
| Video compression formats | H.264, M-JPEG |
| Maximum resolution | 1920 x 1080 pixels |
| Supported graphics resolutions | 256 x 144, 352 x 240, 512 x 288, 704 x 480, 768 x 432, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Supported video modes | 240p, 480p, 720p, 1080p |
| Analog signal format system | NTSC, PAL |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Total megapixels | 2 MP |
| Audio | |
| Voice codecs | G.711 |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Built-in microphone | Yes |
| Audio system full duplex | Yes |
| Audio system | 2-way |
| Audio formats supported | LC-AAC |
| Audio detection | Yes |
| Network | |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Quality of Service (QoS) support | Yes |
| Ethernet LAN | Yes |
| Cabling technology | 10/100Base-T(X) |
| Wi-Fi | No |
| Supported network protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/ RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, MIB- II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP |
| Storage | |
| Maximum memory card size | 2 TB |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Ports & interfaces | |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Composite video out | 1 |
| Interface | RJ-45/SMB |
| Connectivity technology | Wired |
| Security | |
| Alert notification type | |
| Video motion detection | Yes |
| Security algorithms | 3DES, 802.1x RADIUS, DES, HTTPS, SSL/TLS |
| Active tampering alarm | Yes |
| Password protection | Yes |
| Digital watermark | Yes |
| Management features | |
| Web browser | Yes |
| Remotely operated | Yes |
| Web-based management | Yes |
| Firmware upgradeable | Yes |
| Power | |
| Power source type | DC, PoE |
| Power consumption (max) | 3.8 W |
| DC output voltage | 12 |
| Certificates | |
| Certification | EN 60950-1 UL 60950-1 CAN/CSA-C22.2 NO. 60950-1-07 EN 50130-4; EN 50130-5 FCC EMC 2004/108/EC EN 55022 class B EN 55024 VCCI J55022 V2/V3 AS/NZS CISPR 22 ICES-003 Class B EN 50121-4; EN 50121-3-2 EN 50132-5-2; IEC 62676-2-3 CE, FCC, UL, cUL, C-tick, CB, VCCI |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Width | 135 mm |
| Depth | 135 mm |
| Height | 102 mm |
| Weight | 450 g |
| Packaging content | |
| Number of cameras | 1 |
| Other features | |
| Video compression formats | H.264, M-JPEG |
| Marca | Bosch |
|---|---|
| MPN: | NIN-50022-A3 |
