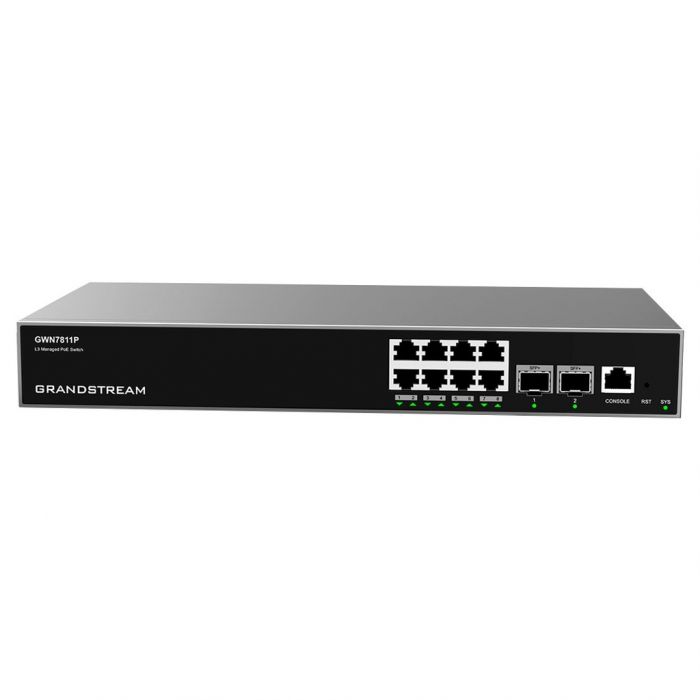

Grandstream GWN7811P networks network switch managed l3 gigabit ethernet (10/100/1000) power over (poe) gray
Precio especial $3,744.00 IVA incluido + Envio $150 MXN
Antes $4,343.00
Disponible 1 Pzas
Antes $4,343.00
Disponible 1 Pzas
sku: GWN7811P
pub
MX0000097735
GWN7811P
The GWN7810 series are Layer 3 managed network switches that allow enterprises to build scalable, secure, and high-performance business networks that are fully manageable.
GWN.Cloud
GWN.Cloud is a enterprise-grade, management platform for Grandstream networking products. Secure networks can be deployed in seconds using GWN.Cloud mobile app or the web browser interface, then later managed from the same interface. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application, then later managed from either interface.
GWN Manager
GWN Manager is a on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products. Typically deployed on a customer’s private network, this solution offers simplified configuration and management. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application.
Embedded Controller
Grandstream’s GWN networking products include an embedded controller software at no extra cost and it is simply built-in to the product’s web user interface. Our embedded controllers can auto discovery and auto-provision any in-network GWN series networking product which also offers a centralized provisioning and management interface.
GWN.Cloud
GWN.Cloud is a enterprise-grade, management platform for Grandstream networking products. Secure networks can be deployed in seconds using GWN.Cloud mobile app or the web browser interface, then later managed from the same interface. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application, then later managed from either interface.
GWN Manager
GWN Manager is a on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products. Typically deployed on a customer’s private network, this solution offers simplified configuration and management. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application.
Embedded Controller
Grandstream’s GWN networking products include an embedded controller software at no extra cost and it is simply built-in to the product’s web user interface. Our embedded controllers can auto discovery and auto-provision any in-network GWN series networking product which also offers a centralized provisioning and management interface.
Technical Information
| Network | |
|---|---|
| IGMP snooping | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Access Control List (ACL) IPv6 entries | 2000 |
| Access Control List (ACL) IPv4 entries | 2000 |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Number of VLANs | 4000 |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| 10G support | Yes |
| Virtual LAN features | Tagged VLAN |
| Virtual LAN features | |
| Number of VLANs | 4000 |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
| Data transmission | |
| Number of VLANs | 4000 |
| MAC address table | 16000 entries |
| Switching capacity | 56 Gbit/s |
| Store-and-forward | Yes |
| Packet buffer memory | 12 MB |
| Static route | Yes |
| Forwarding rate | 41.644 Mpps |
| Throughput | 28 Gbit/s |
| IPv4 & IPv6 features | |
| Access Control List (ACL) IPv6 entries | 2000 |
| Access Control List (ACL) IPv4 entries | 2000 |
| Performance | |
| Packet buffer memory | 12 MB |
| Management features | |
| Switch layer | L3 |
| Switch type | Managed |
| Traffic shaping | Yes |
| ARP inspection | Yes |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 2 |
| Security | |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Security algorithms | 802.1x RADIUS, SNMP |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Queue scheduling algorithms | SP, WFQ, WFQ+SP, WRR+SP, Weighted Round Robin (WRR) |
| Password protection | Yes |
| Authentication type | AAA, RADIUS, TACACS+ |
| Access Control List (ACL) IPv6 entries | 2000 |
| Access Control List (ACL) IPv4 entries | 2000 |
| DHCP features | DHCP Option 82, DHCP relay, DHCP server, DHCP snooping |
| Protocols | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Design | |
| Rack mounting | Yes |
| Product colour | Gray |
| LED indicators | Yes |
| Mobile network | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Power | |
| Power source | DC/PoE |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet (PoE) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 120 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 6.93' (176 mm) |
| Depth | 13' (330 mm) |
| Height | 1.73' (44 mm) |
| Weight | 4.78 lbs (2.17 kg) |
| Packaging data | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| Packaging content | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| Marca | Otros |
|---|---|
| MPN: | GWN7811P |
