Grandstream GWN7832 networks network switch managed l3 10g ethernet (100/1000/10000) gray
Precio especial $5,199.00 IVA incluido + Envio $150 MXN
Antes $6,031.00
Disponible 2 Pzas
Antes $6,031.00
Disponible 2 Pzas
sku: GWN7832
pub
MX0000097731

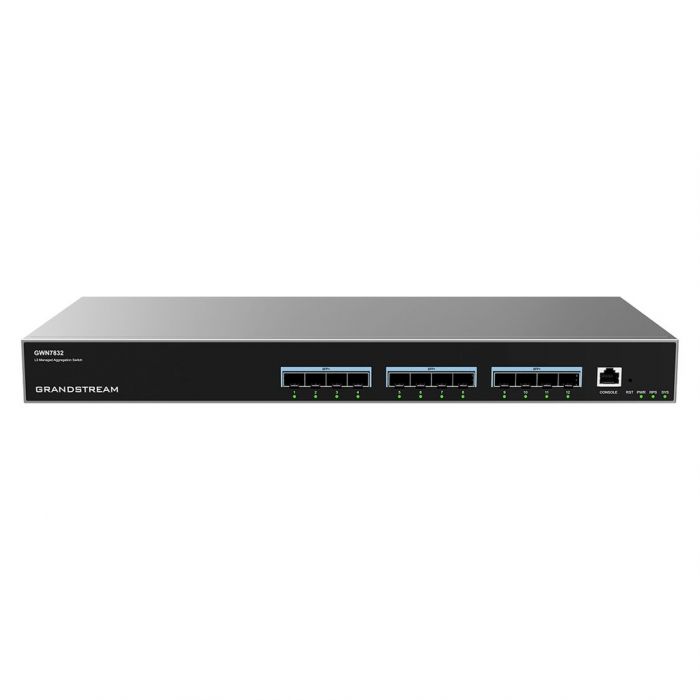

GWN7832
Layer 3 Aggregation Managed Switches
The GWN7830 series are Layer 3 aggregation managed switches that allow enterprises to build scalable, secure, high performance and smart business networks that are fully manageable. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, comprehensive security capabilities against potential attacks. GWN7830 series can be managed in a number of ways, including the local Web user interface of the switch and CLI, the command-line interface. And also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-remise network management platform. With complete end-to-end quality of service and flexible security settings, the GWN7830 series are the best value enterprise-grade aggregation managed switches.
The GWN7830 series are Layer 3 aggregation managed switches that allow enterprises to build scalable, secure, high performance and smart business networks that are fully manageable. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, comprehensive security capabilities against potential attacks. GWN7830 series can be managed in a number of ways, including the local Web user interface of the switch and CLI, the command-line interface. And also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-remise network management platform. With complete end-to-end quality of service and flexible security settings, the GWN7830 series are the best value enterprise-grade aggregation managed switches.
Technical Information
| Network | |
|---|---|
| IGMP snooping | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Access Control List (ACL) IPv6 entries | 4000 |
| Access Control List (ACL) IPv4 entries | 4000 |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Number of VLANs | 4000 |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| 10G support | Yes |
| Virtual LAN features | Tagged VLAN |
| Virtual LAN features | |
| Number of VLANs | 4000 |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
| Data transmission | |
| Number of VLANs | 4000 |
| MAC address table | 32000 entries |
| Switching capacity | 240 Gbit/s |
| Store-and-forward | Yes |
| Packet buffer memory | 16 MB |
| Static route | Yes |
| Forwarding rate | 80.352 Mpps |
| Throughput | 120 Gbit/s |
| IPv4 & IPv6 features | |
| Access Control List (ACL) IPv6 entries | 4000 |
| Access Control List (ACL) IPv4 entries | 4000 |
| Performance | |
| Packet buffer memory | 16 MB |
| Management features | |
| Switch layer | L3 |
| Switch type | Managed |
| Traffic shaping | Yes |
| ARP inspection | Yes |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 12 |
| Security | |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Security algorithms | 802.1x RADIUS, SNMP |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Queue scheduling algorithms | SP, WFQ, WFQ+SP, WRR+SP, Weighted Round Robin (WRR) |
| Password protection | Yes |
| Authentication type | AAA, RADIUS, TACACS+ |
| Access Control List (ACL) IPv6 entries | 4000 |
| Access Control List (ACL) IPv4 entries | 4000 |
| DHCP features | DHCP Option 82, DHCP relay, DHCP server, DHCP snooping |
| Protocols | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Design | |
| Rack mounting | Yes |
| Product colour | Gray |
| LED indicators | Yes |
| Number of fans | 2 fan(s) |
| Mobile network | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Power | |
| Power supply included | Yes |
| Power consumption (typical) | 60 W |
| Input voltage | 12 V |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 7.87' (200 mm) |
| Depth | 17.3' (440 mm) |
| Height | 1.73' (44 mm) |
| Packaging data | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| Other features | |
| Input voltage | 12 V |
| Packaging content | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| Marca | Otros |
|---|---|
| MPN: | GWN7832 |
