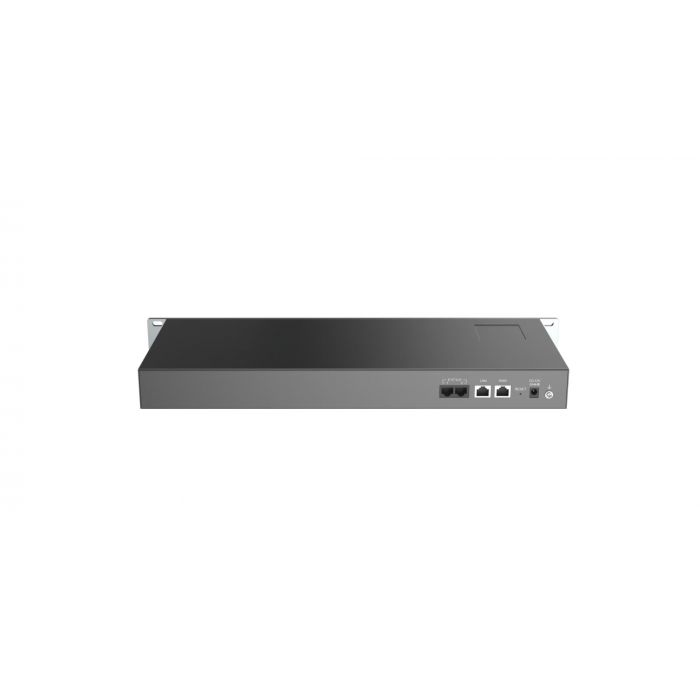

Grandstream GXW4501 networks gateway/controller 10, 100, 1000 mbit/s
Precio especial $11,578.00 IVA incluido + Envio $150 MXN
Antes $13,430.00
Disponible 0 Pzas
Antes $13,430.00
Disponible 0 Pzas
Agotado
pub
MX0000097716
GXW4501
The GXW4500 series are E1/T1 Digital VoIP Gateways that allow digital PSTN and ISDN trunks to be integrated with VoIP networks. By connecting the GXW4500 series with a VoIP network and a traditional PBX or E1/T1/J1 provider, businesses can drastically increase the amount of PSTN/ISDN trunks integrated with their VoIP network. The GXW4500 series offers three models that provide 1, 2 or 4 T1/E1/J1 spans and support 30, 60 or 120 concurrent calls to cater to the VoIP needs of large and medium sized enterprises.
The GXW4500 series supports PRI, SS7 and MFC R2 digital signaling protocols and nearly all major voice codecs including Opus, G.722, G.711, G.729, G.723, iLBC, G.726, GSM-FR, etc. This digital VoIP gateway series includes dual Gigabit network ports with a configurable integrated NAT router, two USB 3.0 ports, and one SD card interface. By adding echo cancellation, jitter buffer, T.38 fax support, TLS and SRTP security encryption as well as automated provisioning by HTTP/TFTP with XML config files, the GXW4500 series is able to cater to the VoIP needs of large and medium enterprises.
The GXW4500 series supports PRI, SS7 and MFC R2 digital signaling protocols and nearly all major voice codecs including Opus, G.722, G.711, G.729, G.723, iLBC, G.726, GSM-FR, etc. This digital VoIP gateway series includes dual Gigabit network ports with a configurable integrated NAT router, two USB 3.0 ports, and one SD card interface. By adding echo cancellation, jitter buffer, T.38 fax support, TLS and SRTP security encryption as well as automated provisioning by HTTP/TFTP with XML config files, the GXW4500 series is able to cater to the VoIP needs of large and medium enterprises.
Technical Information
| Design | |
|---|---|
| Certification | FCC, CE, RCM, ITU-T K.21, T1, E1 |
| Rack capacity | 2U |
| Product colour | Black |
| Performance | |
| Display type | LCD |
| Control display unit | Yes |
| Certification | FCC, CE, RCM, ITU-T K.21, T1, E1 |
| Rack capacity | 2U |
| Product colour | Black |
| Protocols | |
| STUN server | Yes |
| Supported network protocols | TCP/UDP/IP, RTP/RTCP, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE, STUN, SRTP, TLS, LDAP, PPP, Frame Relay (pending), IPv6, OpenVPN |
| Network | |
| Networking standards | IEEE 802.1Q |
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Modulation | DTMF |
| Cabling technology | 10/100/1000Base-T(X) |
| Differentiated services (DiffServ) supported | Yes |
| Security | |
| Security algorithms | 802.1x RADIUS, HTTPS, SRTP, SSH, SSL/TLS |
| Authentication method | RFC2833, SIP INFO |
| Blacklist | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Management features | |
| Syslog | Yes |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Power | |
| Output current | 2 A |
| Input voltage | 100 - 240 V |
| Input frequency | 50/60 Hz |
| DC input voltage | 12 V |
| Weight & dimensions | |
| Weight | 5.18 lbs (2.35 kg) |
| Width | 19.1' (485 mm) |
| Height | 1.82' (46.2 mm) |
| Depth | 7.52' (191 mm) |
| Package weight | 6.9 lbs (3.13 kg) |
| Packaging data | |
| Package weight | 6.9 lbs (3.13 kg) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Technical details | |
| Package weight | 6.9 lbs (3.13 kg) |
| Modulation | DTMF |
| Harmonized System (HS) code | 85176990 |
| Display | |
| Touchscreen | No |
| Display type | LCD |
| Display resolution | 128 x 32 pixels |
| Control display unit | Yes |
| Certificates | |
| Certification | FCC, CE, RCM, ITU-T K.21, T1, E1 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Marca | Otros |
|---|---|
| MPN: | GXW4501 |
