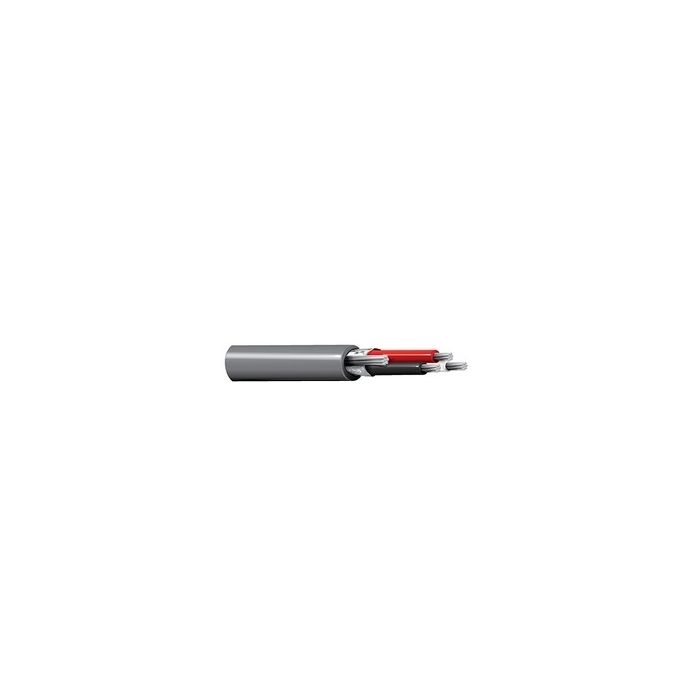

Belden 8770 06010000 multi-conductor cable, 3 conductors, 18 awg, 16x30 strands, tinned copper, pe insulation, pvc jacket
Precio especial $55,012.00 IVA incluido + Envio $150 MXN
Antes $63,814.00
Disponible 15314 Pzas
Antes $63,814.00
Disponible 15314 Pzas
sku: 8770 06010000
pub
MX0000097604
BELDEN
8770 06010000 Multi-Conductor Cable, 3 Conductors, 18 AWG, 16x30 Strands, Tinned Copper, PE Insulation, PVC Jacket
18 AWG stranded (16x30) tinned copper conductors, conductors cabled, polyethylene insulation, overall Beldfoil shield (100% coverage), 20 AWG stranded tinned copper drain wire, PVC jacket
Informacion tecnica | |
Specifications |
|
Type | Electronic, Audio, Control and Instrumentation Cable |
Conductor Type | Stranded |
Conductor Count | 3 |
Conductor Size | 18 AWG |
Conductor Material | Tinned Copper |
Voltage | 300V |
Jacket Material | PVC |
Jacket Color | Chrome |
Insulation | Polyethylene |
Jacket Rating | CM, FT1 |
Conductor Stranding | 16x30 Str |
Nominal OD | 1/4 in. |
Length | 10,000 ft. |
Shielded | STP |
Shield Type | Overall Beldfoil® Tape |
Shield Material | 100% Bi-Laminate (Aluminum/Poly) Tape, Tinned Copper Drainwire |
Package | Crate Reel Put-Up |
Approval Listings | UL-1685, CE-Marked, IEC-60332-1-2, NEC/UL-Article 800, AWM 2093, CEC/cUL-CM, ECA |
Marca | Belden |
---|---|
MPN: | 8770 06010000 |
