Commscope F4-HMDM-3M-D d-class heliax 1/2" superflexible sureflex jumper with interface types 4.3-10 male and 7-16 din male, 3 m

Precio especial $1,188.00 IVA incluido + Envio $150 MXN
Antes $1,378.00
Disponible 0 Pzas
Agotado
pub
MX0000097455
Precios sujetos a cambios sin previo aviso
Pagos 100% seguros
Entrega Aprox.
Envio Nacional | Condicion: Nuevo

F4-HMDM-3M-D

  • Product Brand: HELIAX® | SureFlex®
  • Product Series: RSJ4-50
  • Product Type: SureFlex® D-CLASS | dynamic PIM
  • Body Style, Connector A: Straight
  • Body Style, Connector B: Straight
  • Interface, Connector A: 4.3-10 Male
  • Interface, Connector B: 7-16 DIN Male
  • Length: 3 m | 9.843 ft

F4-HMDM-3M-D

Product Classification

Product Type SureFlex® D-CLASS, dynamic PIM
Product Brand HELIAX® | SureFlex®
Product Series RSJ4-50

General Specifications

Body Style, Connector A Straight
Body Style, Connector B Straight
Interface, Connector A 4.3-10 Male
Interface, Connector B 7-16 DIN Male
Specification Sheet Revision Level A

Dimensions

Length 3 m | 9.843 ft
Cable Length Unit Meters
Nominal Size 1/2 in



Electrical Specifications

3rd Order IMD Dynamic -116 dBm
3rd Order IMD Dynamic Test Method Two +43 dBm carriers per IEC 62037
DTF, Connector A -34 dB
DTF, Connector B -34 dB

Return Loss/VSWR

Frequency Band VSWR Return Loss (dB)
698–960 MHz 1.065 30.04
1700–2200 MHz 1.065 30.04
2200–2700 MHz 1.106 25.96
3400–3800 MHz 1.222 20.01

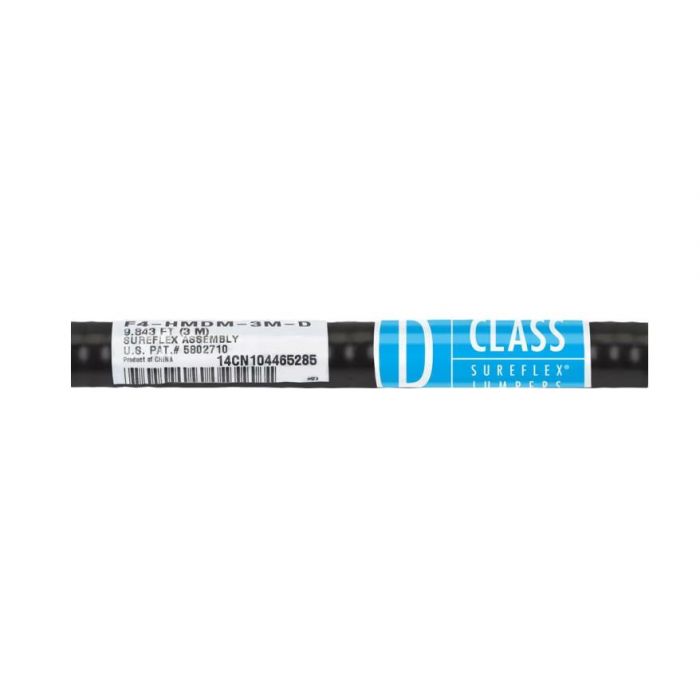

Jumper Assembly Sample Label

Click on image to enlarge.

Environmental Specifications

Immersion Test Method Meets IEC 60529:2001, IP68 in mated condition

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
UK-ROHS Compliant, Compliant/Exempted
Más información
MarcaOtros
MPN:F4-HMDM-3M-D
