Multi-conductor - Databus ISA/SP-50 FOUNDATION Fieldbus Or PROFIBUS Cable TW PR 18 AWG PP FS PVC Orange

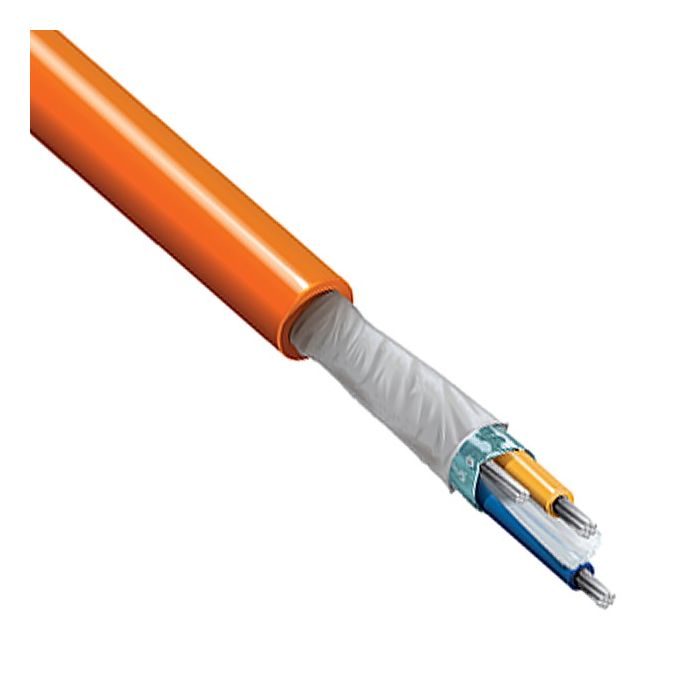

1 pair 18 AWG stranded (7x26) tinned copper conductors, polyolefin insulation, polyolefin filler, Beldfoil shield (100% coverage), tinned copper drain wire, binder, PVC jacket. Fieldbus Foundation Registered Product.
Informacion tecnica | |
Specifications |
|
Type | Industrial Protocol/Data Bus Cable |
Conductor Type | Stranded |
Conductor Count | 1 Pair |
Conductor Size | 18 AWG |
Conductor Material | Tinned Copper |
Voltage | 150, 300 V |
Jacket Material | PVC |
Jacket Color | Orange |
Jacket Rating | CMG |
Insulation | Polypropylene |
Conductor Strands | 7x26 Str |
Nominal OD | 0.28 in. |
Temperature Rating | -40° to +105°C |
Length | 5000 ft. |
Shielded | STP |
Shield Type | Overall Beldfoil® |
Shield Material | 100% Aluminum/Polyester Tape |
Package | Crate Reel |
Approval Listings | UL-1666, FT4, 1202, CE-Marked, IEC-60332-1-2, IEEE-383, ISA/SP-50 Type A, NEC Article 725, 727, 800, WEEE Compliant |
Marca | Belden |
---|---|
MPN: | 3076F 0035000 |
