Belden 8760 06010000 multi-pair cable, 1 pair, 18 awg, 16x30 strands, tinned copper, twisted pe insulation, pvc jacket
Precio especial $40,063.00 IVA incluido + Envio $150 MXN
Antes $46,473.00
Disponible 43533 Pzas
Antes $46,473.00
Disponible 43533 Pzas
sku: 8760 06010000
pub
MX0000097314
*Validar unida de medida 1000 ft
BELDEN 8760 06010000

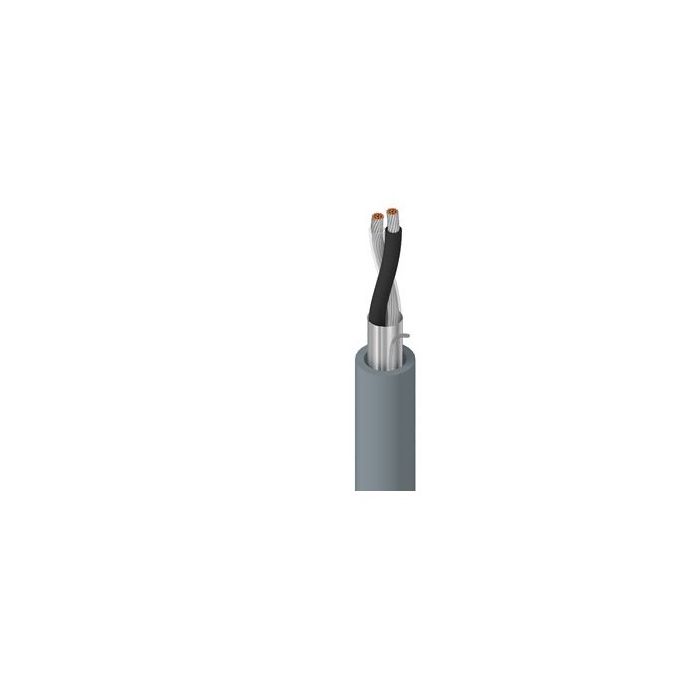

Multi-Pair Cable, 1 Pair, 18 AWG, 16x30 Strands, Tinned Copper, Twisted Pair, PE Insulation, PVC Jacket
Product Overview
Suitable Applications | low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring |
Mechanical Characteristics
Max. Pull Tension | 54 lbs |
Bulk Cable Weight | 25 lbs/1000ft |
Standards and Compliance
Environmental Suitability | Indoor |
Informacion tecnica | |
Specifications |
|
Type | Electronic Multi-Conductor Cable |
Conductor Type | Stranded |
Conductor Count | 2 |
Conductor Size | 18 AWG |
Conductor Material | Tinned Copper |
Voltage | 300V |
Jacket Material | PVC |
Jacket Color | Chrome |
Insulation | Polyethylene |
Jacket Rating | CM |
Conductor Stranding | 16x30 Str |
Nominal OD | 0.22 in. |
Temperature Rating | -20° to +60°C |
Length | 10,000 ft. |
Shielded | STP |
Shield Type | Beldfoil® Tape |
Shield Material | Aluminum Foil, Polyester Tape |
Package | Reel |
Approval Listings | UL-1685, CE-Marked, IEC-60332-1-2, EU 2015/863/EU/2011/65/EU/2012/19/EU, WEEE Compliant |
Marca | Belden |
---|---|
MPN: | 8760 06010000 |
