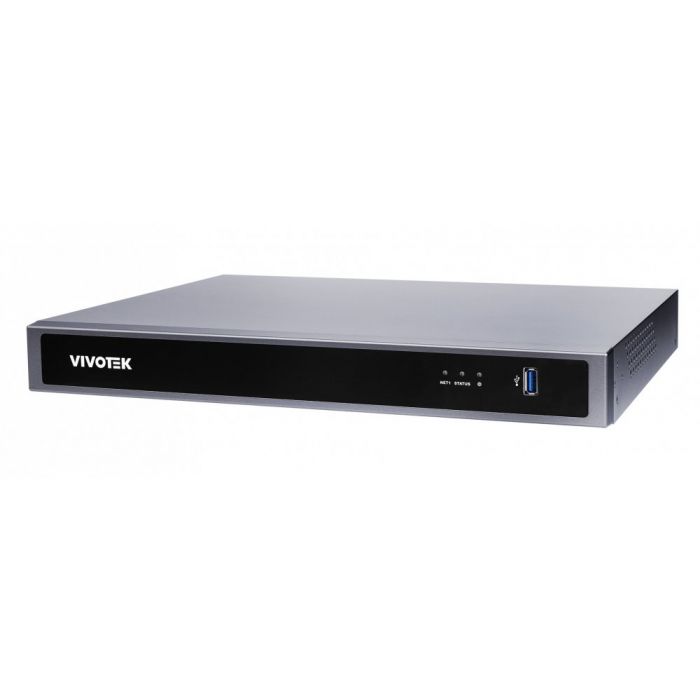

Vivotek ND9426P - grabador nvr 16 canales, 2 bahias, puertos poe ge, 1 puerto hdmi 4k, vga, ciberseguridad trend micro, deep search, smart vca ndaa, onvif
Precio especial $6,665.00 IVA incluido + Envio $150 MXN
Antes $7,731.00
Disponible 22 Pzas
Antes $7,731.00
Disponible 22 Pzas
sku: ND9426P
pub
MX0000096828
ND9426P
H.265 16-CH Embedded PoE NVR
Key Features
- 4K Camera Supported
- Decoding Ability Up to 1080P 480 fps
- More VIVOTEK VCA Event Supported
- VIVOTEK Smart VCA Camera Supported for Event Search & Recording
- Simplify Judgment with Deep Search
- Chrome Browser Supported without Plugins
- Manage with VORTEX and VAST Security Station (VSS)
- Made in Taiwan
| Informacion tecnica | |
|---|---|
| Technical Specifications | Device |
| Model | ND9426P |
| Watchdog | Hardware + Software |
| Power Restoration | System Restart Automatically after Power Recovery |
| Reset Button | YES |
| Display | |
| LiveView Display | 16 Channels Multi Layout Display: 1x1, 2x2, 3x3, 4x4, 1M+5,1M+12, 1P+3,1P+6,2P+3, 3V |
| Video Output | HDMI x1, VGA x1 |
| Display Resolution | 3840x2160, 1920x1080, 1280x720 HDMI up to 3840 x2160, VGA up to 1920 x1080p |
| Fisheye Dewarp | Local: 1O, 1P, 1R, 1O3R, 1O8R, 1P3R Web: 1O, 1R, 1P |
| PTZ Operation | Direction Control, Home, Iris, Preset, Patrol (Group) |
| Video | |
| Video Format | MJPEG, H.264, H.265 |
| Graphic Decoder | Hardware decoding |
| Decoding Resolution | Up to 7680x2560 |
| Decoding Capability | H.265/H.264: 3840x2160 @ 120 fps 1920x1080 @ 480 fps |
| Audio | |
| Audio Format | G.711, G.726, MPEG-2 AAC-LC |
| Audio In/Out | 3.5 Phone Jack Audio Output x1 3.5 Phone Jack Audio Input x1 |
| Record | |
| Recording Time (sec.) | Pre-Record: 5 (Max. 10) Post-Record: 20 (Max. 300) |
| Recording Throughput | 192 Mbps |
| Recording Mode | Continuous, Schedule, Manual, Event |
| Recording Setting | Recycle (unit: Day) |
| Storage & Backup | |
| HDD Devices | Internal x2 (3.5') *HDD purchased separately. |
| RAID | RAID 0,1 |
| Disk Management | Create, Format and Remove Disk HDD S.M.A.R.T |
| External Storage | USB Storage (USB 3.0) |
| Video Clip Export | USB Dongle (FAT Format) |
| Schedule Backup | FTP |
| Playback | |
| Playback Display | 4 Channels Multi Layout Display |
| Playback Control | Regular (Play, Pause, Stop), Rewind, Next / Previous Frame, Speed Control, Calendar, Event, Timeline, Timeline Scale, Thumbnail (Storyboard) |
| Video Search | By calendar, date/time, and alarm |
| Thumbnail Explorer (Storyboard) | Listing the thumbnail of recorded video (Max. 2 CH) |
| Snapshot | JPEG |
| Video Clip Export | Supported |
| Network | |
| Ethernet | 10/100/1000Mbps Ethernet (RJ-45) x2 |
| Network Throughput Input/Output Total | 224Mbps |
| PoE | 802.3at/af compliant PoE ports x 16 (total Max. 200W) * DO NOT suggest connecting any non-PD device with this NVR PoE port in order to avoid potential risk. |
| PoE Management | Supported |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS |
| External Interface | |
| USB | Front x1 (USB 3.0) Back x2 (USB 2.0) |
| Alarm In | 4 |
| Alarm Out | 1 |
| Audio In/ Out | 3.5 Phone Jack Audio Output x1 3.5 Phone Jack Audio Input x1 (reserved) |
| System | |
| Camera Integration | ONVIF Profile S |
| Event | Motion Detection, Smart VCA Event, Cyber Attack, PIR Detection, Tampering Detection, Camera DI/DO, Camera Disconnected, Disk Failure, Disk Full, NVR DI/DO, PoE error, Video loss |
| Event Action | Record, Email (Text), Email (Snapshot), FTP, Buzzer, ePTZ Control (Go to Preset), NVR DO, Camera DO, APP Notification by cloud service |
| User Management | User level: administrator, regular user |
| Log | System, Recording, User, Error |
| Date & Time | Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time |
| Language | Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Polish, Russian, Spanish, Simplified Chinese, Traditional Chinese, Arabic |
| Deep Search | |
| Object Search | People, Vehicle |
| Scene Search | Line crossing, Intrusion, Loitering |
| Attribute Search | People: Gender, Age, Clothing Color, Accessories Vehicles: Type, Color |
| Advanced Features | |
| VCA Counting Solution | Supported |
| VCA Event Search | Supported |
| Smart Search II | Supported |
| Trend Micro IoT Security | Supported |
| Cybersecurity Management | Supported |
| Remote Client | |
| Software AP | Shepherd, VSS (VAST Security Station) |
| Mobile/Tablet App | iViewer , VIVOCloud, VORTEX(Android & iOS) |
| Web Browser | Chrome |
| General | |
| Power Input | 100-240V AC, 50/60Hz |
| Power Consumption | Max. 270 W |
| Dimensions | 365 (W) x 315 (D) x 44 (H) mm |
| Weight | 2.78 kg |
| Operating Temperature | -10°C ~ 55°C (14°F ~ 131°F) |
| Humidity | 0 ~ 95% |
| Safety Certifications | CE, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS |
| Marca | Vivotek |
|---|---|
| MPN: | ND9426P |
