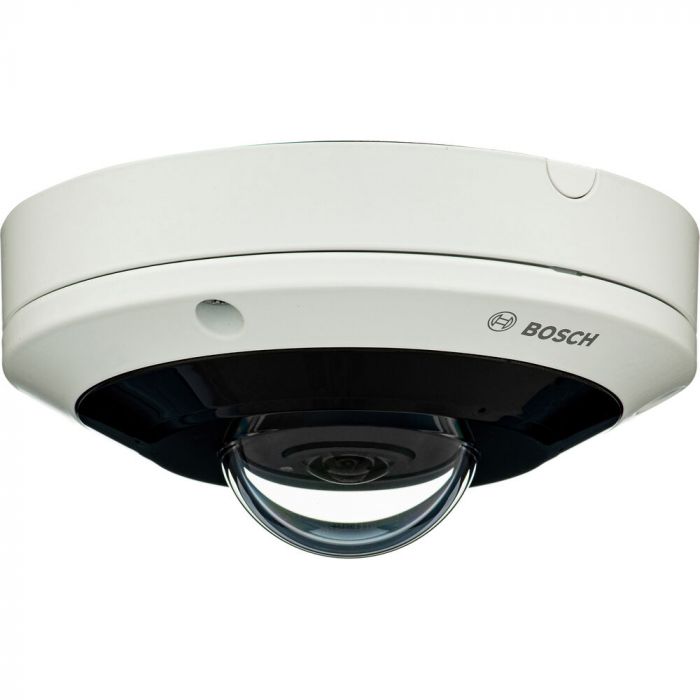

Bosch NDS-5703-F360LE v_nds5703f360le- domo fijo 6mp 360º ip66 ir/flexidome panoramic 5100i ir
Precio especial $23,350.00 IVA incluido + Envio $150 MXN
Antes $27,086.00
Disponible 0 Pzas
Antes $27,086.00
Disponible 0 Pzas
Agotado
pub
MX0000096809
NDS-5703-F360LE
| Sensor |
6 MP 1/1.8' CMOS
|
| Focal Length |
1.15mm
|
| Lens Field of View |
Horizontal: 182°
Vertical: 182° |
| Built-In Mic |
Yes
|
| Power Source |
AC, DC, PoE 802.3af (15 W), PoE 802.3at (30 W)
|
| Environmental Protection |
Advertised as Outdoor Use/Water Resistant/Weather Resistant
*Manufacturer Testing: IP66 |
| Illumination |
850 nm IR LEDs up to 65.6 / 20 m
|
Camera
| Sensor |
6 MP 1/1.8' CMOS
|
| Focal Length |
1.15mm
|
| Maximum Aperture |
f/2
|
| Lens Field of View |
Horizontal: 182°
Vertical: 182° |
| IR Cut Filter |
Mechanical
|
| Day/Night |
Yes
|
| Minimum Illumination |
Color: 0.099 Lux
B&W: 0 Lux |
| Shutter Speed |
1/150,000 to 53/100 Seconds
|
| Camera Angle Adjustment |
Rotation: 0 to 355°
|
| DORI Coverage |
With 1.155mm Lens:
Detect: at 93 / at 28.3 m Observe: at 38 / at 11.6 m Recognize: at 18 / at 5.5 m Identify: at 7 / at 2.1 m |
Video
| Streaming Resolution |
2112 x 2112 at 30 fps
|
| Supported Video Compression |
H.264, H.265, MJPEG
|
| Multi-View Streaming |
Yes
|
Audio
| 1- or 2-Way Audio |
Two-Way
|
| Audio Formats |
AAC-LC, G.711, L16
|
| Built-In Mic |
Yes
|
Pan & Tilt
| Pan/Tilt |
No
|
Networking
| Security |
Centralized Certificate Management, Digest Authentication, HTTPS, IEEE 802.1X, Password Protection
|
| Supported Protocols |
APIPA, ARP, CHAP, DDNS, DHCP, DNS, DiffServ, FTP, HTTP, ICMP, IGMP, IPv4/v6, LLDP, NTP, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SNTP, SOAP, TCP, UDP, UPnP, iSCSI
|
System Integration
| Application Programming Interface (API) |
ONVIF Profiles G, M, S & T
|
| Analytics |
Bosch Intelligent Video Analytics, Intelligent Audio Analytics, Camera Trainer
|
| Built-In Installation Aids |
Pixel Counter
|
Sensors & Alarms
| Event Trigger |
Yes
|
| Event Action |
Recording, Notification, Alarm
|
| Data Streaming |
Yes
|
| Alarm I/O |
1 / 1
|
Hardware
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC/microSDXC [2 TB Maximum]
|
| Internal Storage |
No
|
| External Storage Options |
Cloud
|
Power
| Power Source |
AC, DC, PoE 802.3af (15 W), PoE 802.3at (30 W)
|
| Power Consumption |
11.4 W
|
Environmental
| Operating Temperature |
-40 to 131°F / -40 to 55°C
|
| Storage Temperature |
-40 to 158°F / -40 to 70°C
|
| Operating Humidity |
5 to 100%
|
| Environmental Protection |
Advertised as Outdoor Use/Water Resistant/Weather Resistant
*Manufacturer Testing: IP66 |
| IK Rating |
IK10
|
General
| Inputs/Outputs |
1 x RJ45
1 x Micro-HDMI 1 x Power |
| Illumination |
850 nm IR LEDs up to 65.6 / 20 m
|
| Video Management Software |
Bosch Remote Portal
|
| Material of Construction |
Aluminum, Polymer
|
| Dimensions |
: 5.8 x H: 2.8' / : 148.0 x H: 70.0 mm
|
| Weight |
1.81 lb / 0.82 kg
|
Packaging Info
| Package Weight |
2.27 lb
|
| Box Dimensions (LxWxH) |
6.8 x 6.5 x 4.5'
|
| Marca | Bosch |
|---|---|
| MPN: | NDS-5703-F360LE |
