Dahua VTO4202F-X SERIES series/ frente de calle modular para 5 departamental y/0 fraccionamientos/ función p2p/ cámara 2 megapíxeles
Precio especial $6,282.00 IVA incluido + Envio $150 MXN
Antes $7,287.00
Disponible 9 Pzas
Antes $7,287.00
Disponible 9 Pzas
sku: VTO4202F-X SERIES
pub
MX0000096390
DAHUA VTO4202F-X SERIES/ FRENTE DE CALLE MODULAR PARA 5 DEPARTAMENTAL Y/0 FRACCIONAMIENTOS/ FUNCIÓN P2P/ CÁMARA DE 2 MEGAPÍXELES/ APERTURA REMOTA/NOTIFICACIÓN APP/ COMPATIBLE DMSS

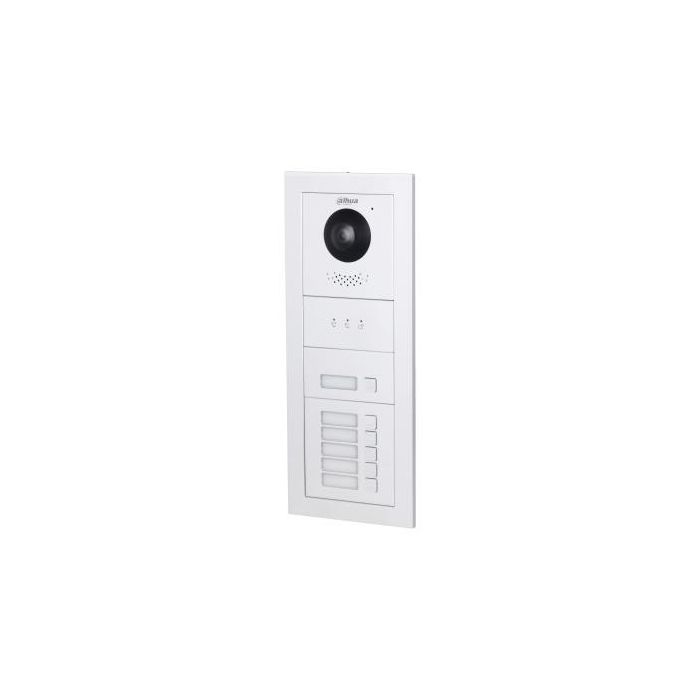

VTO4202F-X Series
2-wire IP Modular Apartment Door Station
> Anodized alumimum front panel
> CMOS low illumination 2MP HD colorful 160° fisheye camera
> Video intercom function
> Access control function that supports two locks
> Mobile phone app, talk to the visitor or unlock the door remotely on your phone
> Compatibility 2-wire Interface & RJ45 Interface
> IK07&IP65
> Support H.265
> Support surface and flush mount
> Modules make the device with great expansibility
> CMOS low illumination 2MP HD colorful 160° fisheye camera
> Video intercom function
> Access control function that supports two locks
> Mobile phone app, talk to the visitor or unlock the door remotely on your phone
> Compatibility 2-wire Interface & RJ45 Interface
> IK07&IP65
> Support H.265
> Support surface and flush mount
> Modules make the device with great expansibility
| System | |
| Main Processor | Embedded processor |
| Operating System | Embedded Linux Operation System |
| Button Type | Mechanical |
| Interoperability | ONVIF; CGI |
| Network Protocol | SIP; P2P; IPv4; UPnP; SNMP; DNS; DDNS; RTSP; RTP; TCP; UDP |
| Basic | |
| Camera | 1/2.5' 2MP CMOS Low Illumination HD Colorful Fisheye Camera |
| Field of View | Horizontal: 168.6°; vertical: 87.1; diagonal:176.7° |
| Focal Length | 1.9 mm |
| WDR | 120 dB |
| Noise Reduction | 3D DNR |
| Video Compression | H.265 |
| Video Resolution | 50Hz: Main Stream (720P@25 fps), sub stream (1080P@25 fps) 60Hz: Main Stream (720P@30 fps), sub stream (1080P@30 fps) |
| Video Frame Rate | 25 fps |
| Video Bit Rate | 256 Kbps to 4 Mbps |
| Light Compensation | Auto IR |
| Day/Night | Auto (ICR) |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 channel |
| Audio Output | Built-in speaker |
| Audio Mode | 2-way voice communication |
| Audio Enhancement | Echo suppression/digital noise reduction |
| Audio Bit Rate | 16 KHz, 16 Bit |
| Status Indicator Light | 3 |
| Port | |
| RS-485 Port | 1 |
| Alarm Output | 1 |
| Power Output | 1-ch 12 VDC 100mA |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1 |
| Network Port | One RJ45 10M/100M network port |
| General | |
| Appearance color | Silver |
| Power Supply | Dahua 2-wire switch (max. power supply distance 50 m) DC 48V 1A Standard PoE |
| Power Adapter | Optional |
| Installation | Flush/surface mount |
| Certifications | CE; FCC; UL |
| Accessory | Flush/surface mount |
| Product Dimensions | 100 mm × 100 mm × 36 mm (3.94' × 3.94' × 1.41') |
| Protection | IK07; IP65 |
| Operating Temperature | –30°C to +60°C (–22°F to 140°F) |
| Operating Humidity | 10%–90% (RH, non-condensing) |
| Operating Altitude | 0 m–3000 m |
| Power Consumption | ≤ 12W |
| Net Weight | 0.35 kg (0.77 lb) |
| Gross Weight | 0.4 kg (0.88 lb) |
| Marca | Dahua |
|---|---|
| MPN: | VTO4202F-X SERIES |
