Hoffman A48H3612SS6LP wall-mount type 4x enclosure
Precio especial $97,398.00 IVA incluido + Envio $150 MXN
Antes $112,982.00
Disponible 3 Pzas
Antes $112,982.00
Disponible 3 Pzas
sku: A48H3612SS6LP
pub
MX0000096376
A48H3612SS6LP

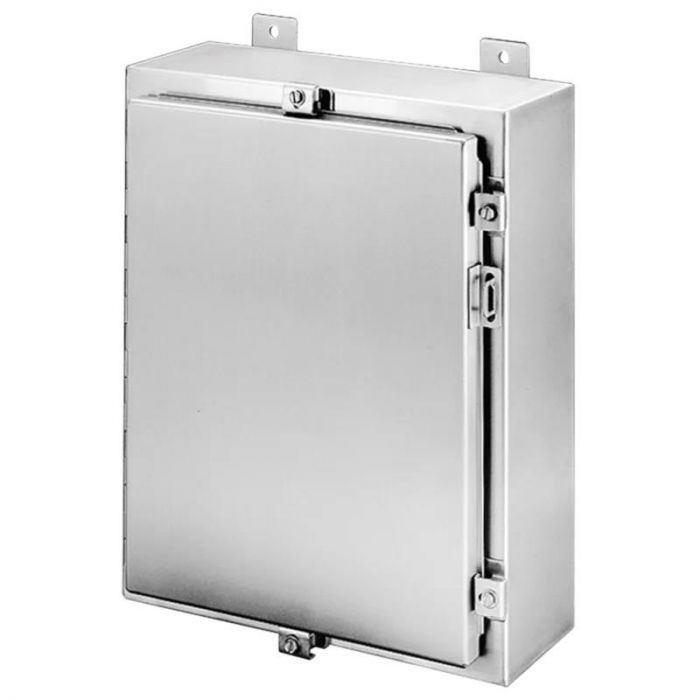

Wallmount Hinged with NEMA Clamps Type 4X, 48x36x12, Brushed, SS316
- Seams continuously welded and ground smooth
- Seamless foam-in-place gasket
- Rolled lip around three sides of door
- Stainless steel door clamp assembly
- Hasp and staple for padlocking
- Door removed by pulling stainless steel continuous hinge pin
- Data pocket is high-impact thermoplastic
- Collar studs provided for mounting optional panels
- Exterior hardware on Type 316L stainless steel enclosures matches enclosure material
- Bonding provision on door; grounding stud on body
PRODUCT ATTRIBUTES
- Height: 48 in / 1219 mm
- Width: 36 in / 914 mm
- Depth: 12 in / 305 mm
- Protection Rating: NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; IP66
- Finish: Brushed #4
- Material: Stainless Steel 316L
- Color: Unpainted
- Thickness: 14 ga / 1.98 mm
- Panel Size: 45.00 x 33.00 in / 1143 x 838 mm
- Steel Panel: A48P36
- Stainless Steel Type: 316L
- Data Pocket: Large
- Conductive Steel Panel: A48P36G
- Stainless Steel Panel: A48P36SS6
- Clamp Quantity: 8
- Weight: 133 lb
Marca | Hoffman |
---|---|
MPN: | A48H3612SS6LP |
