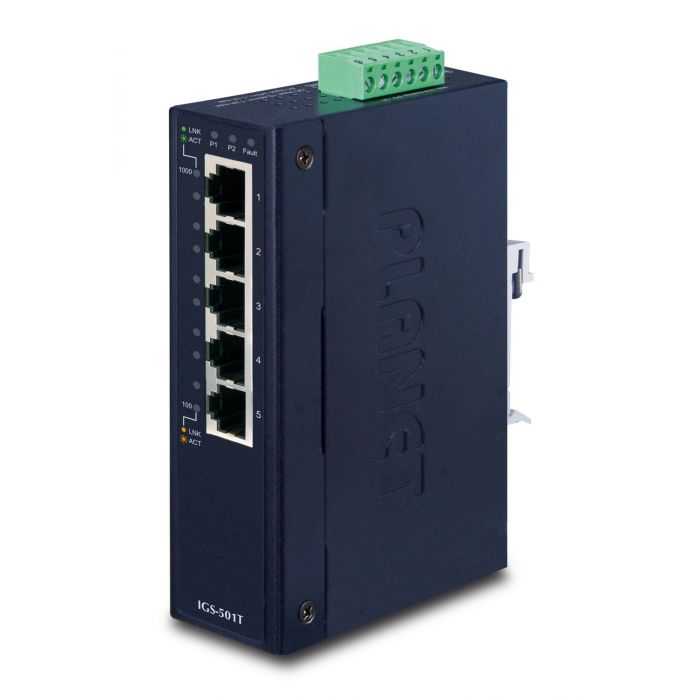

Planet IGS501T igs-501t network switch unmanaged gigabit ethernet (10/100/1000) blue
Precio especial $1,953.00 IVA incluido + Envio $150 MXN
Antes $2,265.00
Disponible 0 Pzas
Antes $2,265.00
Disponible 0 Pzas
Agotado
pub
MX0000096363
IGS-501T
Slim Type with More Practicability and Convenience The IGS-501T advanced, slim-type, industrial, hardened Gigabit Ethernet Switch with IP30 metal case consists of 5 10/100/1000Mbps auto negotiation ports and thus, it operates reliably in heavy industrial demanding environments. Its compact IP30 standard metal case features either DIN rail or wall mount for the efficient use of cabinet space. Stable Performance under Difficult Environments The IGS-501T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degrees C coupled with hazardous location certification (Class 1 Division 2), the IGS-501T can be placed in almost any difficult environment. The IGS-501T also possesses an integrated power supply source with a wide range of voltages (12 to 48V DC) for worldwide high availability applications requiring dual or backup power inputs. Plug and Play All of the RJ-45 copper interfaces in the IGS-501T support 10/100/1000Mbps auto negotiation for optimal speed detection through RJ-45 Category 6, 5 or 5e cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.
Technical Information
| Ports & interfaces | |
|---|---|
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Performance | |
| Stackable | No |
| Maximum cable length | 100 m |
| Plug and Play | Yes |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Product colour | Blue |
| Stackable | No |
| Housing material | Metal |
| Rack mounting | No |
| Management features | |
| Switch type | Unmanaged |
| Network | |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Half duplex | Yes |
| Data transmission | |
| Jumbo frames | 9000 |
| Throughput | 7.4 Mpps |
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Certificates | |
| Certification | FCC Part 15 Class A, CE |
| Design | |
| Wall mountable | Yes |
| International Protection (IP) code | IP30 |
| DIN rail mounting | Yes |
| Product colour | Blue |
| Stackable | No |
| LED indicators | Yes |
| Housing material | Metal |
| Certification | FCC Part 15 Class A, CE |
| Rack mounting | No |
| Indication | |
| LED indicators | Yes |
| Power | |
| Power supply included | No |
| Power consumption (typical) | 5.28 W |
| DC input voltage | 12 - 48 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 75 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 18 BTU/h |
| Weight & dimensions | |
| Width | 32 mm |
| Depth | 87 mm |
| Height | 135 mm |
| Weight | 456 g |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Marca | Planet |
|---|---|
| MPN: | IGS501T |
