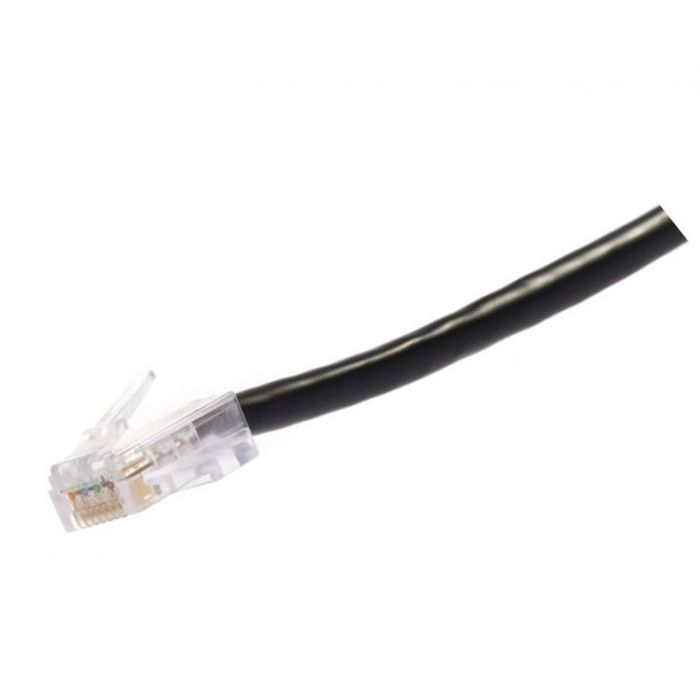

Commscope CPC6642-03F005 powersum d8ps stranded cordage modular patch cord, dark gray jacket, 5 ft
Precio especial $268.00 IVA incluido + Envio $150 MXN
Antes $311.00
Disponible 297 Pzas
Antes $311.00
Disponible 297 Pzas
sku: CPC6642-03F005
pub
MX0000095643
PowerSUM Cat 5e U/UTP RJ45 Patch Cord, Non-Plenum
CPC6642
- Portfolio: SYSTIMAX®
- Product Brand: PowerSUM
- Product Series: CPC
- Product Type: Twisted pair patch cord
- ANSI/TIA Category: 5e
- Interface, Connector A: RJ45 plug
- Interface, Connector B: RJ45 plug
- Jacket Color: Black | Blue | Dark gray | Light blue | Lilac | Orange | Red | Spring green | White | Yellow
- Interface Feature, connector A: Standard
- Interface Feature, connector B: Standard
- Cable Type: U/UTP (unshielded)
- Conductor Type: Stranded
- Environmental Space: Non-plenum
CPC6642
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | SYSTIMAX® |
| Product Type | Twisted pair patch cord |
| Product Brand | PowerSUM |
| Product Series | CPC |
| Ordering Note | Cords < 1 m are valid elements for use in a channel or as an equipment interconnect but due to their limited length are not guaranteed to meet component compliance requirements that were developed to assess the quality of longer cords | Cords > 1 m are authorized for use in channels and are an effective standalone method used to connect active devices |
General Specifications
| ANSI/TIA Category | 5e |
| Cable Type | U/UTP (unshielded) |
| Conductor Type | Stranded |
| Interface, Connector A | RJ45 plug |
| Interface Feature, connector A | Standard |
| Interface, Connector B | RJ45 plug |
| Interface Feature, connector B | Standard |
| Jacket Color | Black | Blue | Dark gray | Light blue | Lilac | Orange | Red | Spring green | White | Yellow |
| Pairs, quantity | 4 |
| Transmission Standards | IEEE 802.3bt Type 4 |
| Wiring | T568B |
Dimensions
| Cable Assembly Length Range (m) | 1 – 30 |
| Cable Assembly Length Range (ft) | 1 – 100 |
| Cable Assembly Length Range (cm) | 15 – 999 |
| Cable Assembly Length Range (in) | 6 – 999 |
| Diameter Over Jacket | 5.72 mm | 0.225 in |
| Compatible Conductor Gauge, stranded | 24 AWG |
Wiring Diagram
| Click on image to enlarge. |
|
Electrical Specifications
| dc Resistance, maximum | 0.3 ohm |
| Safety Voltage Rating | 300 V |
Ordering Tree
| Click on image to enlarge. |
|
Material Specifications
| Contact Plating Material | Precious metals |
| Material Type | Copper alloy | Polycarbonate |
Mechanical Specifications
| Plug Insertion Life, minimum | 750 times |
| Plug Retention Force, minimum | 133 N | 29.9 lbf |
Environmental Specifications
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
| Environmental Space | Non-plenum |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | Anatel | ETL | cETL |
Packaging and Weights
| Packaging quantity | 1 |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| Marca | Otros |
|---|---|
| MPN: | CPC6642-03F005 |
