Commscope NPC06UVDB-BL010F cbl assy mod 24-4pr stranded cat6 u/utp cm t568b 10ft blue
Precio especial $311.00 IVA incluido + Envio $150 MXN
Antes $361.00
Disponible 2 Pzas
Antes $361.00
Disponible 2 Pzas
sku: NPC06UVDB-BL010F
pub
MX0000095572

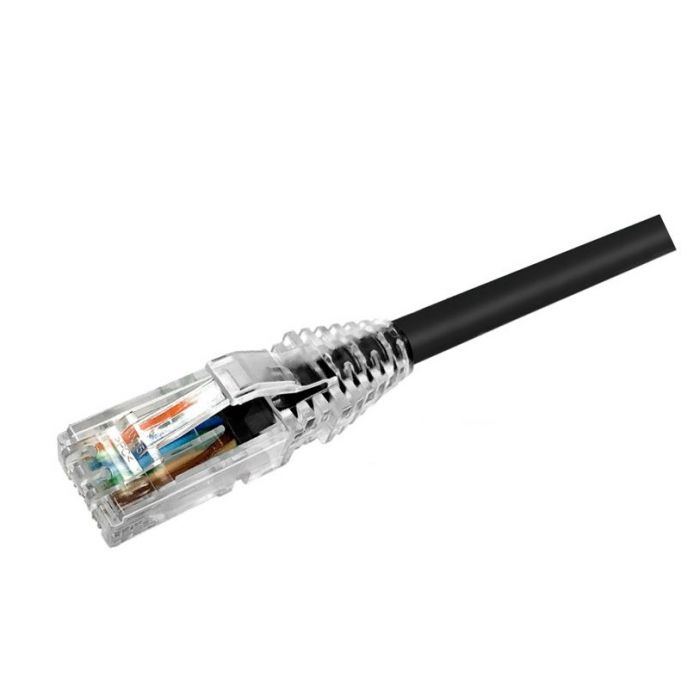

NETCONNECT Cat 6 U/UTP RJ45 Patch Cord, Non-Plenum
NPC06UVDB
- Portfolio: NETCONNECT®
- Product Series: NPC
- Product Type: Twisted pair patch cord
- ANSI/TIA Category: 6
- Interface, Connector A: RJ45 plug
- Interface, Connector B: RJ45 plug
- Jacket Color: Black | Blue | Green | Orange | Red | Slate | White | Yellow
- Interface Feature, connector A: Standard
- Interface Feature, connector B: Standard
- Cable Type: U/UTP (unshielded)
- Conductor Type: Stranded
- Environmental Space: Non-plenum
NPC06UVDB
Product Classification
| Regional Availability | Asia | Australia/New Zealand | Latin America |
| Portfolio | NETCONNECT® |
| Product Type | Twisted pair patch cord |
| Product Series | NPC |
| Ordering Note | Cords < 1 m are valid elements for use in a channel or as an equipment interconnect but due to their limited length are not guaranteed to meet component compliance requirements that were developed to assess the quality of longer cords | Cords > 1 m are authorized for use in channels and are an effective standalone method used to connect active devices |
General Specifications
| ANSI/TIA Category | 6 |
| Cable Type | U/UTP (unshielded) |
| Conductor Type | Stranded |
| Interface, Connector A | RJ45 plug |
| Interface Feature, connector A | Standard |
| Interface, Connector B | RJ45 plug |
| Interface Feature, connector B | Standard |
| Jacket Color | Black | Blue | Green | Orange | Red | Slate | White | Yellow |
| Pairs, quantity | 4 |
| Transmission Standards | IEEE 802.3bt Type 4 | ISO/IEC 11801 Class E |
| Wiring | T568B |
Dimensions
| Cable Assembly Length Range (m) | 1 – 30 |
| Cable Assembly Length Range (ft) | 1 – 100 |
| Cable Assembly Length Range (cm) | 15 – 999 |
| Cable Assembly Length Range (in) | 6 – 999 |
| Diameter Over Jacket | 5.97 mm | 0.235 in |
| Compatible Conductor Gauge, stranded | 24 AWG |
Material Specifications
| Insulation Material | Polyethylene |
| Material Type | PVC |
Mechanical Specifications
| Plug Insertion Life, minimum | 750 times |
Environmental Specifications
| Operating Temperature | -20 °C to +60 °C (-4 °F to +140 °F) |
| Relative Humidity | Up to 93%, non-condensing |
| Environmental Space | Non-plenum |
| Flammability Rating | CM |
| Safety Standard | UL 1863 |
Packaging and Weights
| Packaging quantity | 1 |
Regulatory Compliance/Certifications
| Agency | Classification |
| RCM | Compliant to electrical safety & telecommunications requirements |
| Marca | Otros |
|---|---|
| MPN: | NPC06UVDB-BL010F |
