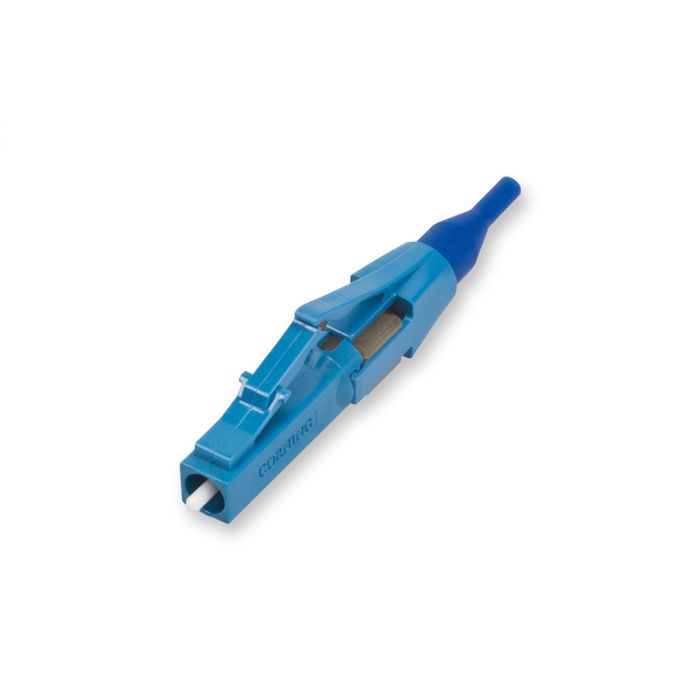

Corning 95-200-99 unicam high-performance connector, lc, single-mode (os2), ceramic ferrule, logo, single pack, blue housing, boot
Precio especial $807.00 IVA incluido + Envio $150 MXN
Antes $936.00
Disponible 93 Pzas
Antes $936.00
Disponible 93 Pzas
sku: 95-200-99
pub
MX0000095229
UniCam® Connector, LC Single-mode (OS2) Typically ships in 7 day(s)?
95-200-99
General Specifications
Product Number | 95-200-99 |
EAN Code | 4042673619437 |
Fiber Category | Single-mode (OS2) |
Product Type | Field-Installable Connectors |
Corning Logo | Yes |
Keyed (security) | No |
Technology | No-Epoxy/No-Polish |
Standards
RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
Environmental Conditions
Temperature Range, Operation | -40 °C to 75 °C (-40 °F to 167 °F ) |
Design - Connector
Connector Type | LC |
Housing Color | Blue |
Boot Color | Blue |
Ferrule Material | Ceramic |
Pinned | No |
Mechanical Specifications - Connector
Nominal Fiber Outer Diameter | 125 µm |
Tensile Strength Jacketed Cable | 44 N (9.89 lbf) |
Durability | = 0.2 dB change, 500 rematings, FOTP-21 |
Tensile Strength 900 µm Cable | 4.9 N (1.1 lb) change = 0.2 dB, FOTP-6 |
Optical Specifications - Connector
Polish | UPC |
Insertion Loss, Max. | 0.5 dB |
Reflectance | < -55 dB |
Insertion Loss, Typical | 0.2 dB |
Ordering Information
Packaging | Individual Pack |
Package Contents | 'Connector, Trigger, Crimp Band, Boot (900 µm), Boot (3.0 mm), Boot (2.0 mm)' |
Units per Delivery | 1/1 |
Marca | Otros |
---|---|
MPN: | 95-200-99 |
