Dahua DH-SD6CE245GB-HNR - camara ip ptz de 2 megapixeles/ wizsense/ 45x zoom optico/ starlight/ 250 metros ir/ autotracking 3.0/ smd 4.0/ detección rostros/ protección perimetral/ poe+/ ip67/ ik10/
Precio especial $20,859.00 IVA incluido + Envio $150 MXN
Antes $24,196.00
Disponible 72 Pzas
Antes $24,196.00
Disponible 72 Pzas
sku: DH-SD6CE245GB-HNR
pub
MX0000095058
SD6CE245GB-HNR

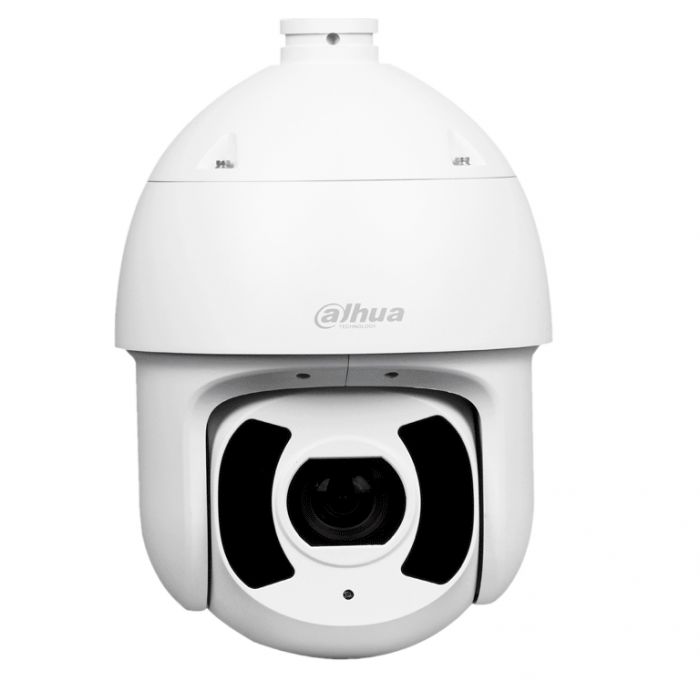

2MP 45x Starlight IR Network PTZ Camera
> 1/2.8' 2Megapixel STARVIS™ CMOS.
> 45x optical zoom.
> Starlight technology.
> Max. 25/30fps@1080P.
> IR distance up to 250 m.
> Auto-tracking 3.0.
> Perimeter protection.
> Face detection.
> SMD 4.0.
> Quick Pick.
> IP67, IK10.
> 45x optical zoom.
> Starlight technology.
> Max. 25/30fps@1080P.
> IR distance up to 250 m.
> Auto-tracking 3.0.
> Perimeter protection.
> Face detection.
> SMD 4.0.
> Quick Pick.
> IP67, IK10.
| Camera | |
| Image Sensor | 1/2.8' CMOS |
| Pixel | 2 MP |
| Max. Resolution | 1920 (H) × 1080 (V) |
| ROM | 4 GB |
| RAM | 1 GB |
| Electronic Shutter Speed | 1/1 s–1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination | Color: 0.005 Lux@F1.6; B/W: 0.0005 Lux@F1.6; 0 Lux@F1.6 (IR on) |
| Illumination Distance | 250 m (820.21 ft) |
| Illuminator On/Off Control | Zoom Prio; Manual; Smart IR; Off |
| Illuminator Number | 6 (IR) |
| Lens | |
| Focal Length | 3.95 mm–177.75 mm |
| Max. Aperture | F1.6–F4.95 |
| Field of View | H: 65.7°–1.9°V: 39.4°–1.1°D: 73.1°–2.1° |
| Optical Zoom | 45× |
| Focus Control | Auto/Semi-Auto/Manual |
| Close Focus Distance | 0.1 m–1 m (0.33 ft–3.28 ft) |
| Iris Control | Auto/Manual |
| DORI Distance | Detect |
| 2451.7 m (8043.64 ft) | 972.9 m (3191.93 ft) |
| PTZ | |
| Pan/Tilt Range | Pan: 0° to 360° endless Tilt: –20° to +90°, auto flip 180° |
| Manual Control Speed | Pan: 0.1°/s–260°/s Tilt: 0.1°/s–120°/s |
| Preset Speed | Pan: 300°/s; Tilt: 200°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Pattern; Preset; Scan; Tour |
| PTZ Protocol | DH-SD Pelco-P/D (auto recognition) |
| Intelligence | |
| IVS (Perimeter Protection) | Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking |
| Face Detection | Supports face detection, optimization, tracking, capturing pictures, uploading high-quality face snapshots, and face enhancement; Supports attributes extraction. 6 attributes and 8 expressions: Gender, age, glasses, expressions (angry, sad, hate, scary, surprise, calm, happy and confused), mask, mustache; Supports face cutout: Face, one-inch photo. Capturing strategies include real-time capturing, optimization, and quality first. |
| Auto Tracking | Yes |
| SMD | Yes |
| Quick Pick | Yes |
| Video | |
| Video Compression | H.264H; H.264B;Smart H.265+; H.264; H.265; MJPEG(Sub Stream); Smart H.264+ |
| Streaming Capability | 3 streams |
| Resolution | 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576); VGA (640 × 480); CIF (352 × 288) |
| Video Frame Rate | Main stream: 1080p/1.3M/720p@ (1–25/30 fps) Sub stream 1: D1/VGA/CIF@ (1–25/30 fps) Sub stream 2: 720p@ (1–25/30 fps) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H264: 64 kbps–10496 kbps H265: 25 kbps–6400 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| WDR | 120 dB |
| HLC | Yes |
| White Balance | Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp |
| Gain Control | Auto/Manual |
| Noise Reduction | 2D/3D |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Image Stabilization | Electronic (EIS) |
| Defog | Electronic |
| Digital Zoom | 16× |
| Image Rotation | 180° |
| Privacy Masking | Up to 24 areas can be set, with up to 8 areas in the same view |
| S/N Ratio | ≥ 55 dB |
| Audio | |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723 |
| Network | |
| Network Port | 1 × RJ-45 (10/100 Base-T) |
| Network Protocol | FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP |
| Interoperability | CGI; SDK; ONVIF (Profile S&G&T); P2P |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | Micro SD card (Up to 512 GB); FTP; NAS |
| Browser | IE 9 and later versions Chrome 41 and later versions Firefox 50 and later versions iOS 10 and later versions |
| Management Software | DSS; DMSS |
| Mobile Client | iOS; Android |
| Certification | |
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 |
| Port | |
| Analog Output | 1 channel (CVBS output, BNC) |
| RS-485 | 1(Bit range: 1200 bps–9600 bps) |
| Audio Input | 1 channel |
| Audio Output | 1 channel |
| Alarm Linkage | Capture; recording; send email; preset; tour; pattern; alarm digital output |
| Alarm Event | Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Alarm I/O | 7/2 |
| Audio I/O | 1/1 |
| Power | |
| Power Supply | 24 VDC, 2.5 A ± 25% PoE+ (802.3at) |
| Power Consumption | Basic: 13 W Max: 25 W |
| Environment | |
| Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Operating Humidity | ≤ 95% (RH) |
| Protection | IP67; IK10; TVS 8000V lightning proof; surge protection; voltage transient protection |
| Structure | |
| Product Dimensions | 337.4 mm × Φ209 mm (13.28' × Φ8.23') |
| Net Weight | 5.9 kg (13.00 lb) |
| Gross Weight | 9.6 kg (21.16 lb) |
| Marca | Dahua |
|---|---|
| MPN: | DH-SD6CE245GB-HNR |
