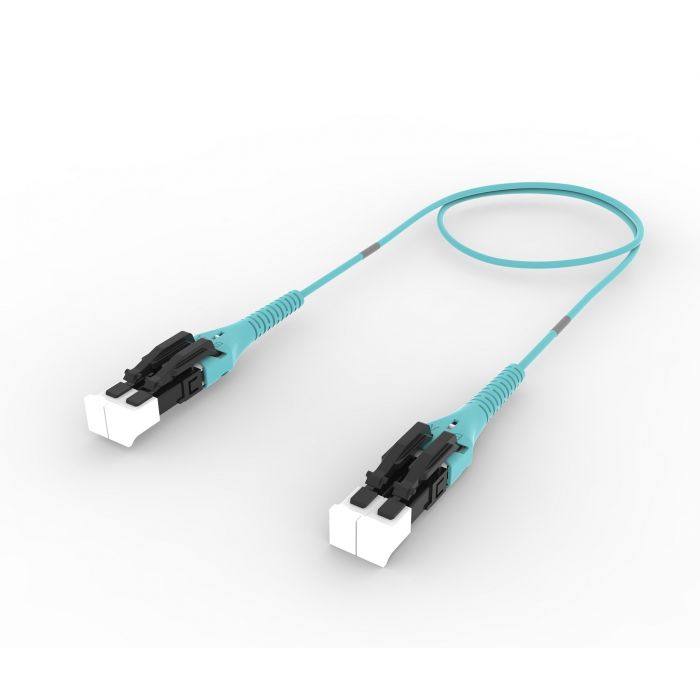

Commscope UFXLULUK2-MXM020 | ull jumper lszh,om4,1.5mm uniboot lc-lc, 20 mts
Precio especial $2,142.00 IVA incluido + Envio $150 MXN
Antes $2,485.00
Disponible 0 Pzas
Antes $2,485.00
Disponible 0 Pzas
Agotado
pub
MX0000095054
UFXLULUK2-MXM020 | UFXLULUK2-MXM020 ULL JUMPER LSZH,OM4,1.5MM UNIBOOT LC-LC, 20 MTS
UFXLULUK2
- Portfolio: CommScope®
- Product Brand: SYSTIMAX ULL
- Product Series: UFX
- Product Type: Fiber patch cord | duplex
- Fiber Mode: Multimode
- Fiber Type: OM4 | LazrSPEED®
- Total Fibers, quantity: 2
- Interface, Connector A: LC/UPC
- Interface, Connector B: LC/UPC
- Interface Feature, connector A: Uniboot
- Interface Feature, connector B: Uniboot
- Environmental Space: Dual Rated LSZH/Riser
- Jacket Color: Aqua
UFXLULUK2
Product Classification
Regional Availability | Asia | Australia/New Zealand | Europe | Latin America | Middle East/Africa | North America |
Portfolio | CommScope® |
Product Type | Fiber patch cord, duplex |
Product Brand | SYSTIMAX ULL |
Product Series | UFX |
Ordering Note | For lengths greater than 999 ft (304 m), orders must be in meters | Minimum length may vary based on cable configuration |
General Specifications
Color, connector A | Beige |
Color, connector B | Beige |
Interface, Connector A | LC/UPC |
Interface Feature, connector A | Uniboot |
Interface, Connector B | LC/UPC |
Interface Feature, connector B | Uniboot |
Jacket Color | Aqua |
Total Fibers, quantity | 2 |
Dimensions
Cable Assembly Length Range (m) | 1 – 999 |
Cable Assembly Length Range (ft) | 1 – 999 |
Diameter Over Jacket | 1.5 mm | 0.059 in |
Ordering Tree
Click on image to enlarge. |
|
Mechanical Specifications
Cable Retention Strength, maximum | 11.24 lb @ 0 ° | 4.40 lb @ 90 ° |
Optical Specifications
Fiber Mode | Multimode |
Fiber Type | OM4, LazrSPEED® |
Insertion Loss, maximum | 0.15 dB |
Insertion Loss, typical | 0.13 dB |
Return Loss, minimum | 35 dB |
Environmental Specifications
Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
Environmental Space | Dual Rated LSZH/Riser |
Regulatory Compliance/Certifications
Agency | Classification |
ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
ROHS | Compliant/Exempted |
CHINA-ROHS | Above maximum concentration value |
UK-ROHS | Compliant/Exempted |
Marca | Otros |
---|---|
MPN: | UFXLULUK2-MXM020 |
