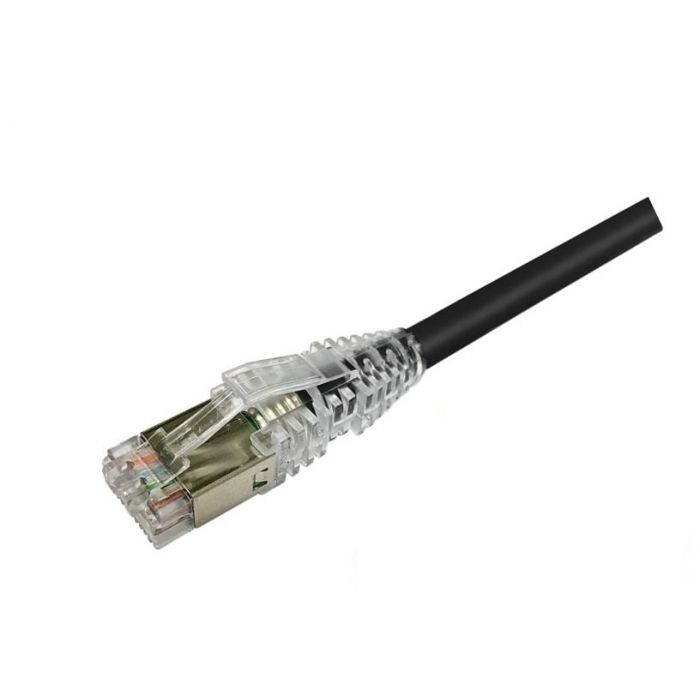

Commscope NPC6ASVDB-BL030F npc rj45 patch cord, category 6a, shielded, cm (pvc), blue, 30ft
Precio especial $1,230.00 IVA incluido + Envio $150 MXN
Antes $1,427.00
Disponible 0 Pzas
Antes $1,427.00
Disponible 0 Pzas
Agotado
pub
MX0000095041
NPC6ASVDB
Product Classification
Regional Availability | Latin America |
Portfolio | NETCONNECT® |
Product Type | Twisted pair patch cord |
Product Series | NPC |
Ordering Note | Cords < 1 m are valid elements for use in a channel or as an equipment interconnect but due to their limited length are not guaranteed to meet component compliance requirements that were developed to assess the quality of longer cords | Cords > 1 m are authorized for use in channels and are an effective standalone method used to connect active devices |
General Specifications
ANSI/TIA Category | 6A |
Cable Type | S/FTP (shielded) |
Conductor Type | Stranded |
Interface, Connector A | RJ45 plug |
Interface Feature, connector A | Standard |
Interface, Connector B | RJ45 plug |
Interface Feature, connector B | Standard |
Jacket Color | Black | Blue | Green | Orange | Red | Slate | White | Yellow |
Pairs, quantity | 4 |
Transmission Standards | IEEE 802.3bt Type 4 |
Wiring | T568B |
Dimensions
Cable Assembly Length Range (m) | 1 30 |
Cable Assembly Length Range (ft) | 1 100 |
Cable Assembly Length Range (cm) | 15 999 |
Cable Assembly Length Range (in) | 6 999 |
Diameter Over Jacket | 5.59 mm | 0.220 in |
Compatible Conductor Gauge, stranded | 26 AWG |
Ordering Tree
Click on image to enlarge. |
Material Specifications
Insulation Material | Polyethylene |
Material Type | PVC |
Mechanical Specifications
Plug Insertion Life, minimum | 750 times |
Environmental Specifications
Operating Temperature | -20 °C to +60 °C (-4 °F to +140 °F) |
Relative Humidity | Up to 93%, non-condensing |
Environmental Space | Non-plenum |
Flammability Rating | CM |
Safety Standard | UL 1863 |
Packaging and Weights
Packaging quantity | 1 |
Marca | Otros |
---|---|
MPN: | NPC6ASVDB-BL030F |
