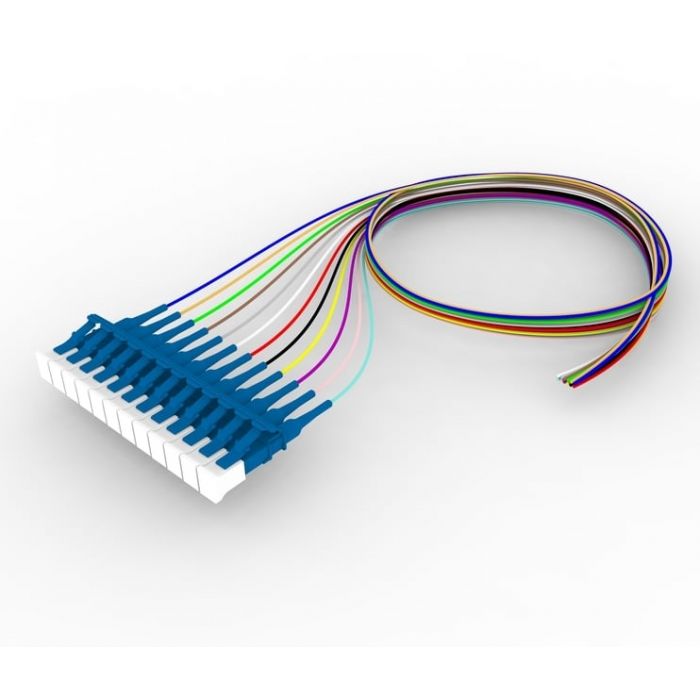

Commscope FAWLCUC0C-XXF010 12-f pigtail kit os2 0.9mm tb lc-pigtail, 10ft, teraspeed
Precio especial $4,784.00 IVA incluido + Envio $150 MXN
Antes $5,549.00
Disponible 2 Pzas
Antes $5,549.00
Disponible 2 Pzas
sku: FAWLCUC0C-XXF010
pub
MX0000094916
FAWLCUC0C
- Portfolio: CommScope®
- Product Brand: SYSTIMAX InstaPATCH® 360
- Product Type: Fiber pigtail | unjacketed
- Total Fibers, quantity: 12
- Fiber Type: G.652.D | G.657.A1 | TeraSPEED®
- Interface, Connector A: LC/UPC
- Fiber Mode: Singlemode
- Environmental Space: Unrated
FAWLCUC0C
Product Classification
Regional Availability | Asia | Australia/New Zealand | Europe | Latin America | Middle East/Africa | North America |
Portfolio | CommScope® |
Product Type | Fiber pigtail, unjacketed |
Product Brand | SYSTIMAX InstaPATCH® 360 |
Ordering Note | For lengths greater than 999 ft (304 m), orders must be in meters | Minimum length may vary based on cable configuration |
General Specifications
Color, boot A | Blue |
Color, connector A | Blue |
Interface, Connector A | LC/UPC |
Total Fibers, quantity | 12 |
Dimensions
Cable Assembly Length Range (m) | 1 – 20 |
Cable Assembly Length Range (ft) | 1 – 66 |
Mechanical Specifications
Cable Retention Strength, maximum | 1.00 lb @ 0 ° | 1.00 lb @ 90 ° |
Optical Specifications
Fiber Mode | Singlemode |
Fiber Type | G.652.D | G.657.A1, TeraSPEED® |
Insertion Loss, maximum, connector A | 0.25 dB |
Return Loss, minimum, connector A | 55 dB |
Environmental Specifications
Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
Environmental Space | Unrated |
Regulatory Compliance/Certifications
Agency | Classification |
ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
ROHS | Compliant |
CHINA-ROHS | Below maximum concentration value |
REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
UK-ROHS | Compliant |
ANATEL | Compliant |
Marca | Otros |
---|---|
MPN: | FAWLCUC0C-XXF010 |
