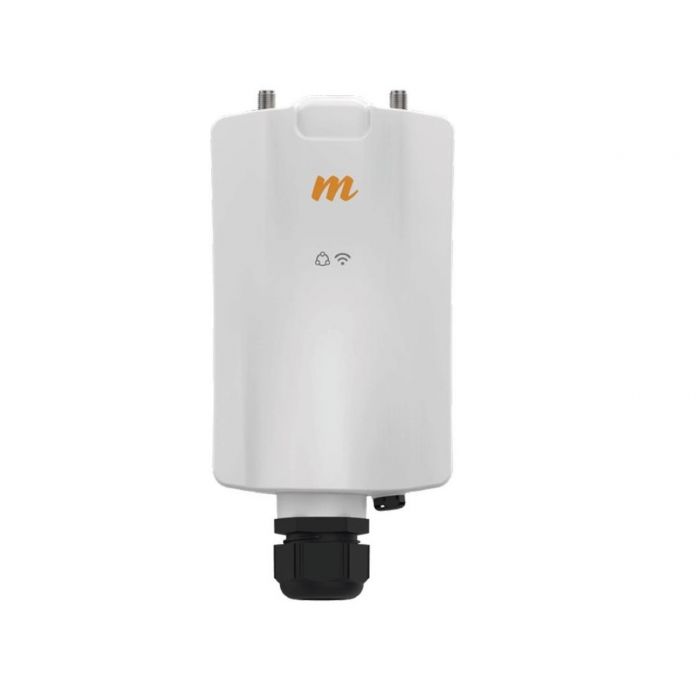

Mimosa A5C-EF ap ptmp 4x4 enlace inalambrico exterior conectorizado 4.9-6.4 ghz gps 802.11ac 1.7gbps 1 puerto rj45 10 100 1000 mbps 4 conectores tipo n hembra ip67 (incluye inyector poe 56v)
Precio especial $12,979.00 IVA incluido + Envio $150 MXN
Antes $15,056.00
Disponible 17 Pzas
Antes $15,056.00
Disponible 17 Pzas
sku: A5c-EF
pub
MX0000094900
Radio PTP/PTMP para exterior 1.7Gbps a 4.9~6.4GHz A5c Mimosa Throughput: 1Gbps Ancho de banda: 20, 40, 80 MHz Rango de frecuencias: 4.9 a 6.4 GHz Potencia máxima: 27dBm Método de alimentación: PoE pasivo 48 a 56vcd, incluye inyector. Grado de protección: Exterior IP67 Conector RF: cuatro Type N hembra SÚPER PARA SECTORESCon las velocidades de cliente más rápidas y una gran capacidad de punto de acceso, junto con la reutilización del espectro local y en toda la red, Mimosa A5c ofrece la mayor escala posible para cualquier red inalámbrica fija sin licencia. APLICACIONES Seguridad pública multipunto con licencia municipal y rural (4,9 GHz) Colocación de puntos de acceso (sincronización GPS)
A5c Specifications
| Performance | |
| Max Throughput | Up to 1.0 Gbps IP (1.7 Gbps PHY) |
| Client Capacity | 64 Clients (WiFi Interop); 44 Clients (SRS |
| Wireless Protocols | Wi-Fi Interop Mimosa GPS Sync (TDMA) |
| Radio | |
| MIMO & Modulation | 4x4:4 MIMO OFDM up to 256QAM |
| Bandwidth | 20/40/80 MHz channels Tunable in 5 MHz increments for GPS Sync Tunable to standard WiFi Channels for WiFi Interop |
| Frequency Range | 5150-6400 MHz Restricted by country of operation |
| Max Output Power | 27 dBm |
| Sensitivity ( MCS 0 ) | -87 dBm @ 80 MHz -90 dBm @ 40 MHz -93 dBm @ 20 MHz |
| Power | |
| Max Power Consumption | 25 W |
| System Power Method | 802.3at compliant |
| System Lightning & ESD Protection | 6 kV |
| PoE Power Supply | Passive PoE compliant, 48-56 V Power over Ethernet supply with IEC61000-4-5 surge protection |
| Physical | |
| Dimensions | Height: 300 mm (11.81') Width: 151 mm (12.40') Depth: 85 mm (3.35') |
| Weight | 1.75 kg (3.86 lbs) |
| Enclosure Characteristics | Outdoor UV-stabilized engineered polymer with integrated mounting panel |
| Mounting | Dual pole strap mount and slip on mount for comparable antennas |
| Connector Type | Female Type N (x4) |
| Environmental | |
| Outdoor Ingress Protection Rating | IP67 |
| Operating Temperature | -40°C to +55°C (-40°F to 131°F) |
| Operating Humidity | 5 to 100% condensing |
| Operating Altitude | 4420 m (14500 ) maximum |
| Shock & Vibration | ETS 300-019-2-4 class 4M5 |
| Features | |
| Gigabit Ethernet | 10/100/1000BASE-T |
| Collocation Synchronization | 1PPS GPS TX/RX synchronization for collocated co- channel radios; Adjustable up/downstream bandwidth ratio |
| Network Processing | Advanced AP control for capacity and subscriber management |
| Management Services | Cloud monitoring and provisioning; SNMPv2c/v3; Syslog; HTTPS; HTML 5-based Web GUI; mDNS support; IPv4 and IPv6 |
| Smart Spectrum Management | Active scan monitors/logs ongoing RF interference across channels (no service impact); Dynamic auto- optimization of channel and bandwidth use |
| Security | WPA2; AES; RADIUS; 802.1x authorization |
| VLANs | Per subscriber VLAN; Management VLAN; CPE data VLAN; Pass-through mode; Untagged traffic control; DSCP-COS mapping |
| QoS | Supports 3 user-configurable QoS levels for SRS (GPS Sync) (CBWFQ); Behavior Aggregate (BA) and CoS Classifier, with user- configurable precedence |
| GPS Location | GNSS-1 (GPS + GLONASS) |
| Regulatory + Compliance | |
| Approvals | FCC Part 15.407 and Part 90Y, IC RSS210, CE, ETSI 301 893/302 502 |
| Other National Regulations | |
| RoHS Compliance | Yes |
| Safety | UL/EC/EN/ 60950-1 + CSA-22.2 |
| Marca | Otros |
|---|---|
| MPN: | A5c-EF |
