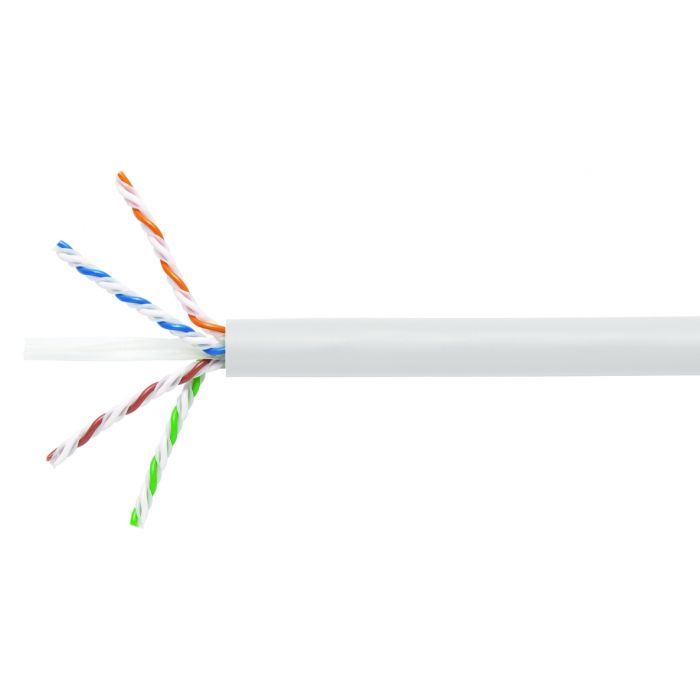

Commscope 884025504/10 cs44r etl verified category 6a u/utp cable, non-plenum, white jacket, 4 pair count, 1000 ft (305 m) length reel

Name: Commscope 884025504/10 cs44r etl verified category 6a u/utp cable, non-plenum, white jacket, 4 pair count, 1000 ft (305 m) length reel
Brand: Otros
SKU: MX0000094872
Price: 16613.00 MXN
Availability: InStock

Precio especial $16,613.00 IVA incluido + Envio $150 MXN
Antes $19,271.00
Disponible 21000 Pzas

sku: 884025504/10

pub

MX0000094872

Precios sujetos a cambios sin previo aviso
Pagos 100% seguros

Entrega Aprox.

Envio Nacional | Condicion: Nuevo

Cant.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Detalles

*Nota es necesario validar esta ficha de referencia

UN884025504/10 | CS44R WHT C6A 4/23 U/UTP RL 1KFT

Portfolio: Uniprise^®
Product Type: Twisted pair cable
Environmental Space: Non-plenum
Cable Type: U/UTP (unshielded)
Jacket Color: White
Product Number: CS44R
Packaging Type: Reel
Pairs, quantity: 4
Jacket Material: PVC
Cable Length: 304.8 m | 1000 ft

UN884025504/10

Product Classification

Regional Availability	North America
Portfolio	Uniprise®
Product Type	Twisted pair cable

General Specifications

Product Number	CS44R
ANSI/TIA Category	6A
Cable Component Type	Horizontal
Cable Type	U/UTP (unshielded)
Conductor Type, singles	Solid
Conductors, quantity	8
Jacket Color	White
Pairs, quantity	4
Separator Type	Bisector
Transmission Standards	ANSI/TIA-568.2-D \| ISO/IEC 11801 Class EA

Dimensions

Cable Length	304.8 m \| 1000 ft
Diameter Over Insulated Conductor	0.864 mm \| 0.034 in
Diameter Over Jacket, nominal	7.239 mm \| 0.285 in
Jacket Thickness	1.295 mm \| 0.051 in
Conductor Gauge, singles	23 AWG

Electrical Specifications

dc Resistance Unbalance, maximum	4 %
dc Resistance, maximum	7.61 ohms/100 m \| 2.32 ohms/100 ft
Dielectric Strength, minimum	1500 Vac \| 2500 Vdc
LP (Limited Power) Rating	0.6 A
Mutual Capacitance at Frequency	6.0 nF/100 m @ 1 kHz
Nominal Velocity of Propagation (NVP)	65 %
Operating Frequency, maximum	500 MHz
Operating Voltage, maximum	80 V
Remote Powering	Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A
Safety Voltage Rating	300 V

Electrical Cable Performance

CommScope

Std

Refers to the standard value listed under Transmission Standards in the Electrical Specifications above

Typ

Typical

Insertion Loss (dB/100m)

Near End Crosstalk (dB/100m)

ACR

Attenuation to Crosstalk Ratio (dB/100m))

PSNEXT

Power Sum Near End Crosstalk (db/100m)

PSACR

Power Sum Attenuation to Crosstalk Ratio (dB/100m)

ACRF

Attenuation to Crosstalk Ratio - Far End (dB/100m)

PSACRF

Insertion Loss (dB/100m)

Return Loss (dB)

Frequency	IL, STD	IL, TYP	NEXT, STD	NEXT, TYP	ACR, STD	ACR, TYP	PSNEXT, STD	PSNEXT, TYP	PSACR, STD	PSACR, TYP	ACRF, STD	ACRF, TYP	PSACRF, STD	PSACRF, TYP	RL, STD	RL, TYP
1.00 MHz	2.1	1.8	74.3	90.6	72.2	88.8	72.3	88.3	70.2	86.5	67.8	82.1	64.8	80.3	20.0	32.2
4.00 MHz	3.8	3.6	65.3	82.4	61.5	78.8	63.3	80.2	59.5	76.6	55.8	70.1	52.8	68.4	23.0	33.9
8.00 MHz	5.3	5.1	60.8	77.6	55.4	72.5	58.8	75.8	53.4	70.7	49.7	64.1	46.7	62.3	24.5	36.7
10.00 MHz	5.9	5.7	59.3	76.4	53.4	70.7	57.3	74.4	51.4	68.7	47.8	62.2	44.8	60.4	25.0	37.7
16.00 MHz	7.5	7.3	56.2	73.1	48.8	65.9	54.2	71.3	46.8	64.0	43.7	58.2	40.7	56.4	25.0	38.7
20.00 MHz	8.4	8.1	54.8	71.5	46.4	63.4	52.8	69.7	44.4	61.6	41.8	56.4	38.8	54.5	25.0	38.7
25.00 MHz	9.4	9.1	53.3	70.2	44.0	61.1	51.3	68.3	42.0	59.2	39.8	54.5	36.8	52.6	24.3	35.5
31.25 MHz	10.5	10.2	51.9	68.6	41.4	58.4	49.9	66.7	39.4	56.5	37.9	52.7	34.9	50.7	23.6	37.2
62.50 MHz	15.0	14.6	47.4	64.2	32.4	49.6	45.4	62.3	30.4	47.7	31.9	46.6	28.9	44.7	21.5	34.6
100.00 MHz	19.1	18.6	44.3	60.8	25.2	42.1	42.3	59.0	23.2	40.3	27.8	42.5	24.8	40.5	20.1	30.3
155.00 MHz	24.1	23.4	41.4	58.4	17.4	35.0	39.4	56.4	15.4	33.0	24.0	38.9	21.0	37.0	18.8	30.8
200.00 MHz	27.6	26.8	39.8	56.0	12.2	29.2	37.8	54.2	10.2	27.4	21.8	36.6	18.8	34.6	18.0	30.0
250.00 MHz	31.1	30.1	38.3	54.3	7.3	24.2	36.3	52.5	5.3	22.3	19.8	34.6	16.8	32.6	17.3	30.5
300.00 MHz	34.3	33.1	37.1	53.1	2.9	19.9	35.1	51.2	0.9	18.1	18.3	33.1	15.3	31.2	16.8	31.1
350.00 MHz	37.2	36.0	36.1	51.8	-1.1	15.8	34.1	49.9	-3.1	13.9	16.9	31.9	13.9	29.9	16.3	31.7
400.00 MHz	40.1	38.8	35.3	50.8	-4.8	12.0	33.3	48.8	-6.8	10.0	15.8	30.6	12.8	28.6	15.9	31.5
500.00 MHz	45.3	43.6	33.8	47.9	-11.4	4.3	31.8	45.8	-13.4	2.2	13.8	28.7	10.8	26.7	15.2	32.0
550.00 MHz	43.8	48.0	4.1	45.9	2.0	28.6	26.7	31.9
650.00 MHz	50.2	43.5	-6.7	41.5	-8.8	25.7	23.5	25.3

Material Specifications

Conductor Material	Bare copper
Insulation Material	Polyolefin
Jacket Material	PVC
Separator Material	Polyolefin

Mechanical Specifications

Pulling Tension, maximum

11.34 kg | 25 lb

Environmental Specifications

Installation temperature	0 °C to +60 °C (+32 °F to +140 °F)
Operating Temperature	-20 °C to +60 °C (-4 °F to +140 °F)
Environmental Space	Non-plenum
Temperature Rating, ETL	75 °C \| 167 °F
Flame Test Method	CMR \| NEC Article 800 \| UL 1666 \| UL 444

Packaging and Weights

Cable weight	56.610 kg/km \| 38.04 lb/kft
Packaging Type	Reel

Regulatory Compliance/Certifications

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant

Más información

Más información
Marca	Otros
MPN:	884025504/10
