Altronix TEMPO2 temporizador universal de dos etapas solo tarjeta
Precio especial $494.00 IVA incluido + Envio $150 MXN
Antes $573.00
Disponible 0 Pzas
Antes $573.00
Disponible 0 Pzas
Agotado
pub
MX0000094836

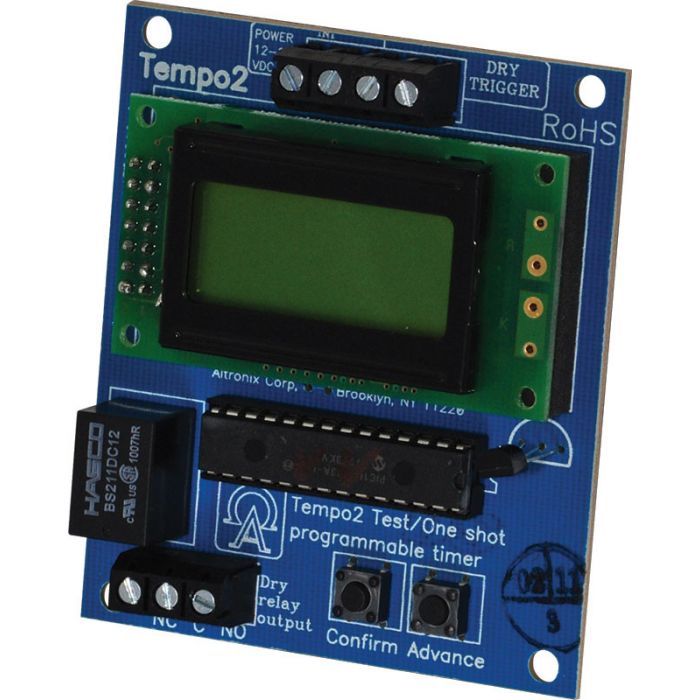

Tempo2 is a universal two stage timer for applications that require timed operations. A delayed egress feature will trigger a 1 to 60 second door release. Applications include daily/weekly test mode, one shot, door prop alarm, timed door annunciate, cut-off timer, alarm swinger eliminator, etc. Digital display facilitates ease of programming and real time information
Input
12 to 24 volts AC or DC operation
Relay
Triggers via dry contact.
Dry form 'C' contacts are rated @ 2A/120VAC/28VDC.
Current draw: stand-by 15mA, relay energized 30mA.
Simple programming. One-Shot Features (trigger activated):
Programmable relay activation at the start or end of the timing cycle.
a) Delayed Pulse Mode:
1 to 60 sec. programmable pulse at the end of timing cycle.
b) Delay Mode:
Relay can be programmed to energize or de-energize during timing cycle (Digitally adjust from 1 sec. -24hours).
Features
EE Prom memory protects against loss of programming due to power failure.
Visual Indicators
LCD displays real time countdown information.
Temperature
Operating -20ºC to 49ºC ( -4ºF to 120ºF).
Storage -25ºC to 70ºC ( -13ºF to 158ºF).
Relative Humidity 85% +/- 5%.
| Marca | Altronix |
|---|---|
| MPN: | TEMPO2 |
