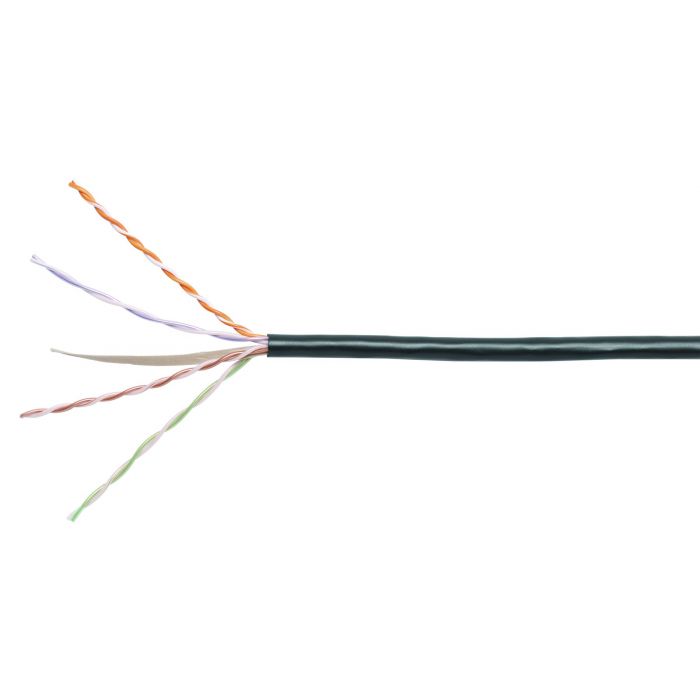

Commscope 884015814/10 cs34r etl verified category 6 u/utp cable, non-plenum, gray jacket, 4 pair count, 1000 ft (305 m) length, commpak

Name: Commscope 884015814/10 cs34r etl verified category 6 u/utp cable, non-plenum, gray jacket, 4 pair count, 1000 ft (305 m) length, commpak
Brand: Otros
SKU: MX0000094760
Price: 7490.00 MXN
Availability: InStock

Precio especial $7,490.00 IVA incluido + Envio $150 MXN
Antes $8,688.00
Disponible 1000 Pzas

sku: 884015814/10

pub

MX0000094760

Precios sujetos a cambios sin previo aviso
Pagos 100% seguros

Entrega Aprox.

Envio Nacional | Condicion: Nuevo

Cant.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Detalles

884015814/10 | CS34R GRY C6 4/23 U/UTP CPK 1KFT

Portfolio: NETCONNECT^®
Product Type: Twisted pair cable
Environmental Space: Non-plenum
Cable Type: U/UTP (unshielded)
Jacket Color: Gray
Product Number: CS34R
Packaging Type: CommPak^® box
Pairs, quantity: 4
Jacket Material: PVC
Cable Length: 304.8 m | 1000 ft

884015814/10

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America
Portfolio	NETCONNECT®
Product Type	Twisted pair cable

General Specifications

Product Number	CS34R
ANSI/TIA Category	6
Cable Component Type	Horizontal
Cable Type	U/UTP (unshielded)
Conductor Type, singles	Solid
Conductors, quantity	8
Jacket Color	Gray
Note	All electrical transmission tests include swept frequency measurements
Pairs, quantity	4
Separator Type	Tape separator
Transmission Standards	ANSI/TIA-568.2-D \| CENELEC EN 50288-6-1 \| ISO/IEC 11801 Class E

Dimensions

Cable Length	304.8 m \| 1000 ft
Diameter Over Insulated Conductor	1.054 mm \| 0.0415 in
Diameter Over Jacket, nominal	5.588 mm \| 0.22 in
Jacket Thickness	0.508 mm \| 0.02 in
Conductor Gauge, singles	23 AWG

Cross Section Drawing

Click on image to enlarge.

Electrical Specifications

Characteristic Impedance	100 ohm
dc Resistance Unbalance, maximum	5 %
dc Resistance, maximum	8 ohms/100 m \| 2.438 ohms/100 ft
Delay Skew, maximum	30 ns
Dielectric Strength, minimum	1500 Vac \| 2500 Vdc
Mutual Capacitance at Frequency	5.6 nF/100 m @ 1 kHz
Nominal Velocity of Propagation (NVP)	69 %
Operating Frequency, maximum	250 MHz
Operating Voltage, maximum	80 V
Remote Powering	Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A
Safety Voltage Rating	300 V

Electrical Cable Performance

CommScope

Std

Refers to the standard value listed under Transmission Standards in the Electrical Specifications above

Typ

Typical

Insertion Loss (dB/100m)

Near End Crosstalk (dB/100m)

ACR

Attenuation to Crosstalk Ratio (dB/100m))

PSNEXT

Power Sum Near End Crosstalk (db/100m)

PSACR

Power Sum Attenuation to Crosstalk Ratio (dB/100m)

ACRF

Attenuation to Crosstalk Ratio - Far End (dB/100m)

PSACRF

Insertion Loss (dB/100m)

Return Loss (dB)

Frequency	IL, CS	IL, STD	IL, TYP	NEXT, CS	NEXT, STD	NEXT, TYP	ACR, CS	ACR, STD	ACR, TYP	PSNEXT, CS	PSNEXT, STD	PSNEXT, TYP	PSACR, CS	PSACR, STD	PSACR, TYP	ACRF, CS	ACRF, STD	ACRF, TYP	PSACRF, CS	PSACRF, STD	PSACRF, TYP	RL, CS	RL, STD	RL, TYP
1.00 MHz	2.0	2.0	1.8	75.3	74.3	89.3	73.3	72.3	87.6	72.3	72.3	87.0	70.3	70.3	85.3	68.0	67.8	84.3	65.0	64.8	82.4	20.0	20.0	34.0
4.00 MHz	3.8	3.8	3.5	66.3	65.3	80.0	62.5	61.5	76.5	63.3	63.3	77.7	59.5	59.5	74.1	56.0	55.8	72.6	53.0	52.8	70.8	23.0	23.0	33.9
8.00 MHz	5.3	5.3	5.0	61.8	60.8	75.5	56.4	55.4	70.5	58.8	58.8	73.2	53.4	53.4	68.2	49.9	49.7	66.8	46.9	46.7	64.9	24.5	24.5	35.5
10.00 MHz	6.0	6.0	5.6	60.3	59.3	73.9	54.3	53.3	68.3	57.3	57.3	71.5	51.3	51.3	65.9	48.0	47.8	64.9	45.0	44.8	63.0	25.0	25.0	36.5
16.00 MHz	7.6	7.6	7.2	57.2	56.2	70.6	49.7	48.7	63.4	54.2	54.2	68.3	46.7	46.7	61.1	43.9	43.7	60.8	40.9	40.7	58.9	25.0	25.0	37.6
20.00 MHz	8.5	8.5	8.1	55.8	54.8	69.2	47.3	46.3	61.2	52.8	52.8	66.9	44.3	44.3	58.8	42.0	41.8	58.9	39.0	38.8	56.9	25.0	25.0	38.2
25.00 MHz	9.5	9.5	9.0	54.3	53.3	67.6	44.8	43.8	58.6	51.3	51.3	65.3	41.8	41.8	56.2	40.0	39.8	57.0	37.0	36.8	55.0	24.3	24.3	38.2
31.25 MHz	10.7	10.7	10.1	52.9	51.9	66.3	42.2	41.2	56.1	49.9	49.9	63.9	39.2	39.2	53.8	38.1	37.9	55.0	35.1	34.9	53.0	23.6	23.6	38.3
62.50 MHz	15.4	15.4	14.5	48.4	47.4	61.4	33.0	32.0	46.9	45.4	45.4	59.0	30.0	30.0	44.5	32.1	31.9	48.9	29.1	28.9	46.9	21.5	21.5	34.7
100.00 MHz	19.8	19.8	18.6	45.3	44.3	58.1	25.5	24.5	39.5	42.3	42.3	55.7	22.5	22.5	37.1	28.0	27.8	44.7	25.0	24.8	42.8	20.1	20.1	31.6
155.00 MHz	25.2	25.2	23.5	42.4	41.4	55.7	17.3	16.3	32.2	39.4	39.4	53.0	14.3	14.3	29.5	24.2	24.0	41.0	21.2	21.0	39.0	18.8	18.8	29.6
200.00 MHz	29.0	29.0	26.9	40.8	39.8	52.6	11.8	10.8	25.7	37.8	37.8	50.4	8.8	8.8	23.4	22.0	21.8	38.6	19.0	18.8	36.7	18.0	18.0	29.3
250.00 MHz	32.8	32.8	30.3	39.3	38.3	50.8	6.5	5.5	20.5	36.3	36.3	48.6	3.5	3.5	18.3	20.0	19.8	36.5	17.0	16.8	34.7	17.3	17.3	28.8
300.00 MHz	33.5	49.0	15.6	46.8	13.4	34.5	32.6	28.9
350.00 MHz	36.4	47.6	11.2	45.4	9.0	33.0	31.0	29.0
400.00 MHz	39.0	46.3	7.3	44.1	5.1	31.3	29.3	30.3
500.00 MHz	44.3	43.2	-1.1	41.2	-3.1	27.3	25.5	31.0
550.00 MHz	44.6	43.1	-0.5	41.2	-2.5	27.4	25.5	31.0
650.00 MHz	51.3	40.2	-11.1	38.4	-12.9	22.3	20.4	25.0

Material Specifications

Conductor Material	Bare copper
Insulation Material	Polyolefin
Jacket Material	PVC
Separator Material	Polyolefin

Mechanical Specifications

Pulling Tension, maximum

11.34 kg | 25 lb

Environmental Specifications

Installation temperature	0 °C to +60 °C (+32 °F to +140 °F)
Operating Temperature	-20 °C to +60 °C (-4 °F to +140 °F)
Environmental Space	Non-plenum
Flame Test Method	CMR \| NEC Article 800 \| UL 1666 \| UL 444

Packaging and Weights

Cable weight	35.091 kg/km \| 23.58 lb/kft
Packaging Type	CommPak® box

Regulatory Compliance/Certifications

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
