Atlona AT-OME-SR21 matrix switcher av 17.6 w
Precio especial $1,222,438.00 IVA incluido + Envio $150 MXN
Antes $1,418,028.00
Disponible 1 Pzas
Antes $1,418,028.00
Disponible 1 Pzas
sku: AT-OME-SR21
pub
MX0000094526
AT-OME-SR21

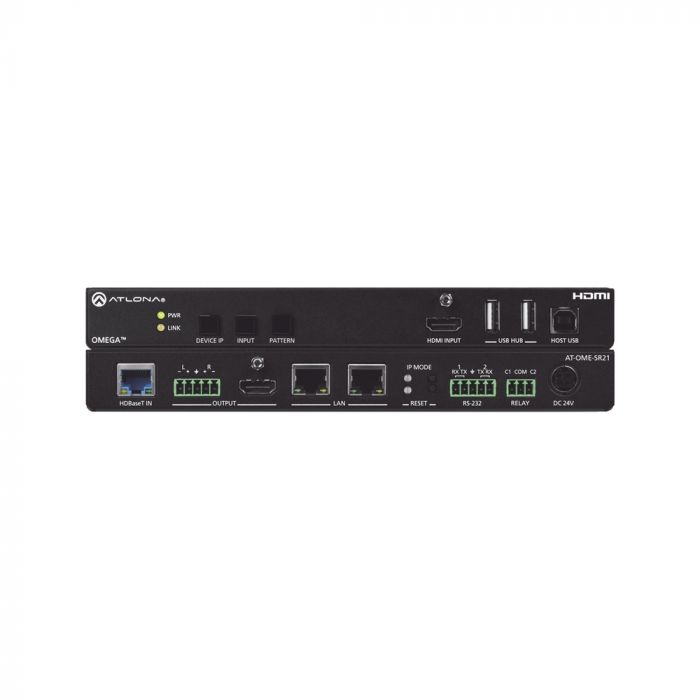

The Atlona AT-OME-SR21 is an HDBaseT receiver and 4K/UHD scaler with a local HDMI input. Part of the Omega Series of integration products for modern AV communications and collaboration, the OME-SR21 receives HDBaseT for video up to 4K/60 4:2:0, plus embedded audio, control, Ethernet, and USB over distances up to 330 feet (100 meters). The HDMI input supports video up to UHD/60 4:4:4. The OME-SR21 is HDCP 2.2 compliant and features 4K/60 upscaling and downscaling with frame rate conversion. Additionally, it receives USB over HDBaseT and includes a USB 2.0 hub for integration with PCs, cameras, microphones, speakers, DSPs, and touch or interactive displays. The OME-SR21 is ideal for 4K presentation applications with Omega, HDVS-200, or UHD-EX Series transmitters, as well as Atlona AV presentation switchers with HDBaseT outputs, local HDMI sources, and the Gain Series amplifiers.
The OME-SR21 combines the benefits of 4K/UHD scaling, auto-switching for HDBaseT and HDMI inputs, integrated display control, USB extension(1), and more. It incorporates many popular integration convenience features, while delivering excellent performance and value for 4K presentation and video conferencing applications. The OME-SR21 can remotely power an Atlona HDBaseT transmitter through Power over Ethernet (PoE). For additional integration convenience, the OME-SR21 features audio de-embedding, integrated two-port Ethernet switch, contact closure
ports for controlling a motorized screen or display lift, internal video test patterns for setup and troubleshooting, and remote management with AMS (Atlona Management System).
Applications
- Complete system integration for video conferencing The OME-SR21 and an Omega Series switcher/transmitter provide a compact, yet comprehensive and costeffective integration solution. USB extension makes this combination ideal for soft codec and web-based conferencing applications, with the ability to integrate with PCs, cameras, speakerphones, and microphones.
- Larger system applications The OME-SR21 is ideal for extending AV and control, from a switcher in an equipment rack to a remote display. Built-in 4K scaling optimizes content for 4K and HD displays.
The OME-SR21 combines the benefits of 4K/UHD scaling, auto-switching for HDBaseT and HDMI inputs, integrated display control, USB extension(1), and more. It incorporates many popular integration convenience features, while delivering excellent performance and value for 4K presentation and video conferencing applications. The OME-SR21 can remotely power an Atlona HDBaseT transmitter through Power over Ethernet (PoE). For additional integration convenience, the OME-SR21 features audio de-embedding, integrated two-port Ethernet switch, contact closure
ports for controlling a motorized screen or display lift, internal video test patterns for setup and troubleshooting, and remote management with AMS (Atlona Management System).
Applications
- Complete system integration for video conferencing The OME-SR21 and an Omega Series switcher/transmitter provide a compact, yet comprehensive and costeffective integration solution. USB extension makes this combination ideal for soft codec and web-based conferencing applications, with the ability to integrate with PCs, cameras, speakerphones, and microphones.
- Larger system applications The OME-SR21 is ideal for extending AV and control, from a switcher in an equipment rack to a remote display. Built-in 4K scaling optimizes content for 4K and HD displays.
Technical Information
| Features | |
|---|---|
| Product type | AV matrix switcher |
| HDCP | Yes |
| HDCP version | 2.2 |
| Firmware upgradeable | Yes |
| Ethernet LAN data rates | 100 Mbit/s |
| Supported resolutions | 4096×2160@60/50/30/25/24Hz, 3840×2160@60/50/30/25/24Hz, 1080p@60/59.9/50/30/29.97/25/24/23.98Hz, 1080i@30/29.97/25Hz, 720p@60/59.94/50Hz, 576p@50Hz, 576i@25Hz, 480p@60/59.96Hz, 480i@30Hz |
| Maximum resolution | 4096 x 2160 pixels |
| Design | |
| Housing material | Metal |
| Housing colour | Black |
| LED indicators | Yes |
| Certification | CE, FCC, UL |
| Display | |
| Built-in display | No |
| Ports & interfaces | |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 2 |
| USB ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 3 |
| RS-232 ports | 2 |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 1 |
| USB connector type | USB Type-B |
| Audio (L/R) out | 1 |
| DC-in jack | Yes |
| HDMI version | 2.0 |
| Power | |
| Power consumption (max) | 17.6 W |
| Power supply location | Rear |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output power | 2.7 W |
| Output voltage | 24 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Technical details | |
| Harmonized System (HS) code | 85299097 |
| Logistics data | |
| Harmonized System (HS) code | 85299097 |
| Weight & dimensions | |
| Width | 8.62' (219 mm) |
| Depth | 5.98' (152 mm) |
| Height | 1.02' (26 mm) |
| Weight | 31.4 oz (890 g) |
| Marca | Otros |
|---|---|
| MPN: | AT-OME-SR21 |
