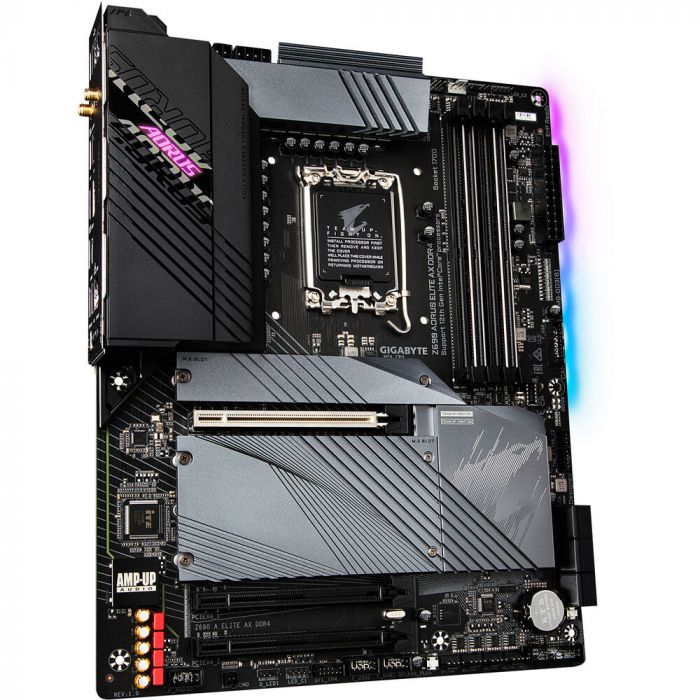

Gigabyte Z690 A ELITE AX DDR4 tarjeta madre lga 1700 eatx hdmi
Precio especial $6,310.00 IVA incluido + Envio $150 MXN
Antes $7,320.00
Disponible 0 Pzas
Antes $7,320.00
Disponible 0 Pzas
Agotado
pub
MX0000093923
Key Feature
- Supports 12th Gen Intel® Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Direct 16+1+2 Digital VRM Design with 70A Power Stage* and Tantalum Polymer Capacitor
- Shielded Memory Routing to Avoid Interference
- Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
- Onboard WIFI 6 802.11ax 2T2R & BT5 with AORUS Antenna
- AMP-UP Audio with ALC1220 and WIMA Audio Capacitors
- Fast 2.5GbE LAN with Bandwidth Management
- 4x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Enlarged Thermal Guards
- SuperSpeed USB 3.2 Gen2x2 TYPE-C® delivers up to 20Gb/s transfer speeds
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
SPECIFICATION
Gigabyte Z690 A ELITE
CPU
| Chipset |
Intel Z690
|
| CPU Socket |
LGA 1700
|
Back Panel I/O
| USB |
1 x USB-C (USB 3.2 Gen 2x2)
2 x USB-A (USB 3.1/3.2 Gen 2) 3 x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 4 x USB-A (USB 2.0) |
| Thunderbolt |
None
|
| Display |
1 x HDMI 2.0
1 x DisplayPort 1.2 |
| Audio |
1 x S/PDIF
2 x 1/8' / 3.5 mm |
| Ethernet / Controller |
1 x Realtek 2.5Gigabit
|
| Wi-Fi Antenna |
2 x Connector
|
Memory
| Memory Slots |
4 x 288-Pin
|
| Memory Support |
DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3666, 3733, 3800, 3866, 4000, 4133, 4266, 4300, 4400, 4500, 4600, 4700, 4800, 4933, 5000, 5133, 5333 MHz
|
| Maximum Capacity |
128 GB
|
| Channel Architecture |
Dual Channel
|
| ECC Support |
Non-ECC, ECC (Non-ECC Mode) Unbuffered
|
Storage Expansion
| SATA |
6 x SATA III
|
| M.2 |
3 x M Key 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1 x M Key 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2, SATA (Unspecified)) |
| U.2 |
None
|
| Optane Memory Support |
Yes
|
| RAID Support |
RAID 0, 1, 5, 10
|
Internal I/O
| Expansion Slots |
1 x PCIe 5.0 x16
2 x PCIe 3.0 x16 (x4 mode) |
| USB |
1 x 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2 x 2.0 Header (Supports 4 USB-A Port) |
| Multi-GPU Support |
2-Way, Quad-GPU AMD CrossFireX
|
| Air Cooling |
1 x 4-Pin CPU
4 x 4-Pin System |
| Liquid Cooling |
1 x 4-Pin Pump
|
| Power Connectors |
1 x 24-Pin Mainboard
1 x 8-Pin ATX 1 x 4-Pin ATX |
| Security |
TPM Header
|
| LED Header |
4 x RGB
|
| Diagnostics |
Clear CMOS, Flash BIOS, Reset
|
| Add-On |
2 x Thunderbolt Card Header
|
BIOS
| ROM |
256 Mb
|
Front Panel I/O
| Front Panel I/O |
AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2
|
Audio
| Audio Codec |
Realtek ALC1220-VB (2-Channel)
|
Wireless
| Bluetooth |
5.2
|
| Wi-Fi |
Wi-Fi 6 (802.11ax)
|
Software
| OS Compatibility |
Windows 10
*As of November, 2021: Check with manufacturer for the most up-to-date compatibility |
Physical
| Form Factor |
ATX
|
| Dimensions |
9.6 x 12.0' / 24.4 x 30.5 cm
|
Packaging Info
| Package Weight |
4.77 lb
|
| Box Dimensions (LxWxH) |
13.4 x 10.7 x 3.3'
|
| Marca | Gigabyte |
|---|---|
| MPN: | Z690 A ELITE AX DDR4 |
