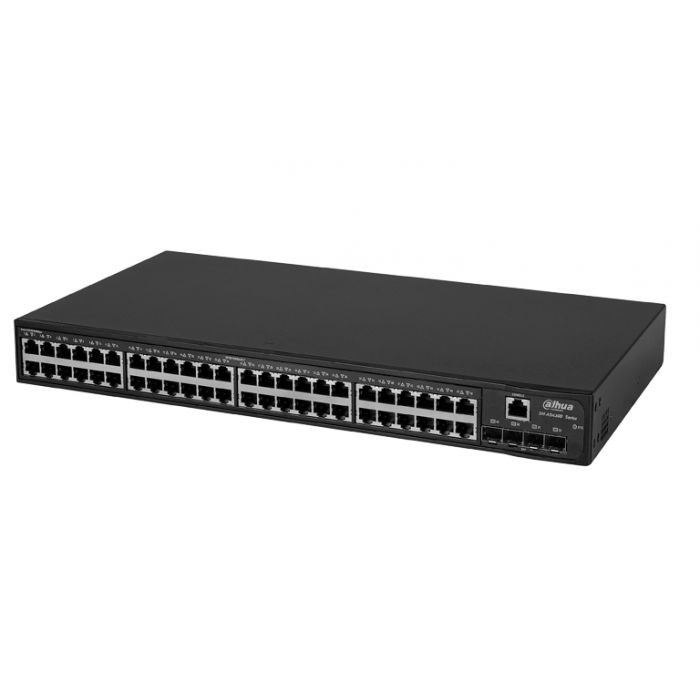

Dahua DH-AS4300-48GT4GF as4300-48gt4gf - switch gigabit de 48 puertos administrable/ capa 2/ 10/100/1000 base-t/ 4 x sfp 1gbps/ carcasa metalica/ switching 104g/ tasa reenvio paquetes 77.4 mbps/
Precio especial $24,934.00 IVA incluido + Envio $150 MXN
Antes $28,923.00
Disponible 8 Pzas
Antes $28,923.00
Disponible 8 Pzas
sku: DH-AS4300-48GT4GF
pub
MX0000093307
DH-AS4300-48GT4GF
| Hardware | |
| Included Power Adapter | Yes |
| PoE | No |
| Ethernet Port | 48 × RJ-45 10/100/1000 Mbps |
| Optical Port | 4 × SFP 100 Mbps/1 Gbps |
| Ethernet Port Speed | 10/100/1000 Mbps |
| Optical Port Uplink Speed | 100 Mbps/1 Gbps |
| Description of Function Slots | Port 1-48:48 × RJ-45 10/100/1000 Mbps; Port 49-52:4 × SFP 100 Mbps/1 Gbps |
| Management port | 1 × Console port |
| Power Supply | 100–240 VAC, 50/60 Hz, 2.0 A |
| Operating Temperature | –5 °C to +45 °C (+23 °F to +113 °F) |
| Operating Humidity | 5%–95% (RH) |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Humidity | 5%–95% (RH) |
| Fanless Design | Yes |
| Power Consumption | Idling: 18 W Full load: 41 W |
| Performance | |
| Layer | L2+ |
| Management Type | Yes |
| MTBF | 115.68 years |
| Switching Capacity | 104 Gbps |
| Packet Forwarding Rate | 77.4 Mpps |
| Packet Buffer Size | 24 Mbit |
| Jumbo Frame | 10K Byte |
| MAC Table Size | 8K |
| VLAN Number | 4K |
| Dynamic ARP | 128 |
| Communication Standard | 802.3x; 802.3ad; 802.1p; 802.1q; 802.1x; 802.1d; 802.1w; 802.1s |
| Features | |
| Ring Network Protocol | STP/RSTP/MSTP PVST |
| Routing | Static routing IPV6 unitcast routing |
| VLAN Function | Port-based VLAN MAC-based VLAN |
| Link Aggregation | Static link aggregation Dynamic link aggregation |
| IEEE 802.3x Flow Control | Yes |
| Multicast | IGMP Snooping PIM Snooping |
| Reliability | LLDP |
| ARP | ARP, Gratuitous ARP Dynamic ARP Inspection ARP anti-attack ARP source suppression ARP Detection |
| DHCP Function | DHCP Client DHCP Relay |
| Security | 802.1X, centralized MAC address authentication Port isolation Dynamic ARP detection, preventing man-in-the-middle attack and ARP denial-of-service IP/Port/MAC binding |
| QoS/ACL | Packet filtering (Layer 2 to Layer 4) Source MAC-, destination MAC-, Source IP (IPv4/IPv6)-, destination IP (IPv4/IPv6)-, TCP/UDP port number-, VLAN-based traffic classification Time-based ACL Two-way ACL policy (ingress and egress) |
| IPv6 | ND IPv6-Ping IPv6-Tracert IPv6-Telnet |
| Equipment Management | Load update files and update using FTP Configure through CLI, Telnet, and Console port SNMPv1/v2/v3 NTP Ping and Tracert LLDP Port loopback detection |
| General | |
| Statics Protection | Air discharge: 8 kV Contact discharge: 6 kV |
| Lighting Protection | Common mode: 1 kV Differential mode: 0.5 kV |
| Net Weight | 3.5 kg (7.72 lb) |
| Gross Weight | 4.5 kg (9.92 lb) |
| Product Dimensions | 440 mm × 230 mm × 44 mm (17.32' × 9.06' × 1.73') (L × W × H) |
| Packaging Dimensions | 542mm × 366mm × 106mm (21.34' × 14.40' × 4.17') (L × W × H) |
| Casing Material | Sheet metal |
| Installation | Desktop mount; rack mount |
| Certifications | CE; FCC |
| Marca | Dahua |
|---|---|
| MPN: | DH-AS4300-48GT4GF |
