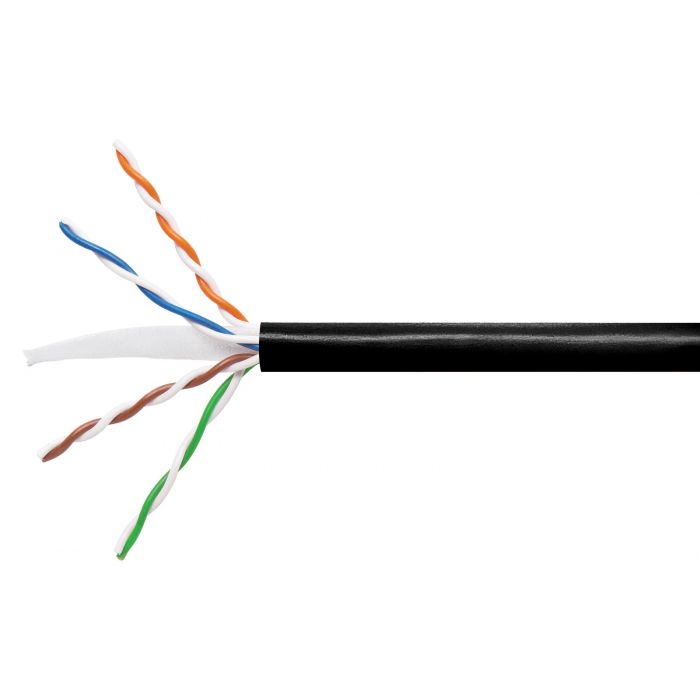

Commscope 760008888 | 1571A BK 4/24 R1000 gigaspeed xl 1571 category 6 u/utp cable, outdoor, black jacket, 4 pair count, 1000 ft (305 m) length, reel

Precio especial $13,230.00 IVA incluido + Envio $150 MXN
Antes $15,347.00
Disponible 143000 Pzas
sku: 1571A BK 4/24 R1000
pub
MX0000093073
Precios sujetos a cambios sin previo aviso
Pagos 100% seguros
Entrega Aprox.
Envio Nacional | Condicion: Nuevo
Logo

* Se vende por pie (ft)

760008888 | 1571A BK 4/24 R1000

  • Portfolio: SYSTIMAX®
  • Product Type: Twisted pair cable
  • Environmental Space: Buried
  • Cable Type: U/UTP (unshielded)
  • Jacket Color: Black
  • Product Number: 1571A
  • Packaging Type: Reel
  • Pairs, quantity: 4
  • Jacket Material: PE
  • Cable Length: 304.8 m | 1000 ft

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio SYSTIMAX®
Product Type Twisted pair cable
Product Brand GigaSPEED XL®

General Specifications

Product Number 1571A
ANSI/TIA Category 6
Cable Component Type Horizontal
Cable Type U/UTP (unshielded)
Conductor Type, singles Solid
Conductors, quantity 8
Jacket Color Black
Pairs, quantity 4
Separator Type Bisector | Tape separator
Transmission Standards ANSI/TIA-568.2-D | CENELEC EN 50288-6-1 | ISO/IEC 11801 Class E

Dimensions

Cable Length 304.8 m | 1000 ft
Diameter Over Jacket, nominal 6.604 mm | 0.26 in
Jacket Thickness 0.635 mm | 0.025 in
Conductor Gauge, singles 24 AWG



Electrical Specifications

Characteristic Impedance 100 ohm
dc Resistance Unbalance, maximum 5 %
dc Resistance, maximum 9.38 ohms/100 m | 2.859 ohms/100 ft
Delay Skew, maximum 45 ns
Dielectric Strength, minimum 1500 Vac | 2500 Vdc
Mutual Capacitance at Frequency 6.0 nF/100 m @ 1 kHz
Nominal Velocity of Propagation (NVP) 65 %
Operating Frequency, maximum 250 MHz
Operating Voltage, maximum 80 V
Remote Powering Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A
Safety Voltage Rating 300 V
Segregation Class b

Material Specifications

Conductor Material Bare copper
Insulation Material Polyolefin
Jacket Material PE
Separator Material Polyolefin

Mechanical Specifications

Pulling Tension, maximum 11.34 kg | 25 lb

Environmental Specifications

Installation temperature -30 °C to +70 °C (-22 °F to +158 °F)
Operating Temperature -40 °C to +70 °C (-40 °F to +158 °F)
EN50575 CPR Cable EuroClass Fire Performance Fca
Environmental Note UV resistant for outdoor and/or direct burial installations
Environmental Space Buried
Safety Standard ANSI/ICEA S-107-704-2012

Packaging and Weights

Cable weight 43.157 kg/km | 29 lb/kft
Packaging Type Reel

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
Más información
MarcaOtros
MPN:1571A BK 4/24 R1000
