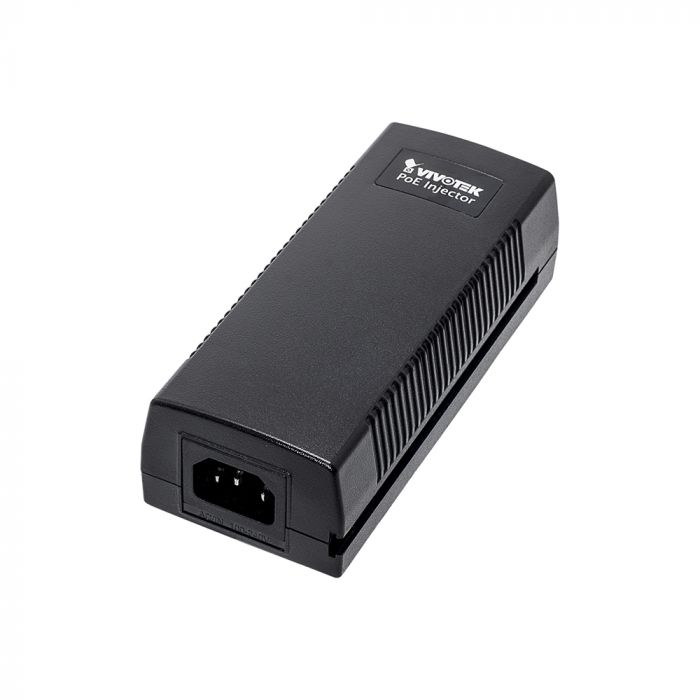

Vivotek AP-FIC-010A-015 inyector poe 1xfe ieee 8023af 154w interior
Precio especial $341.00 IVA incluido + Envio $150 MXN
Antes $396.00
Disponible 58 Pzas
Antes $396.00
Disponible 58 Pzas
sku: AP-FIC-010A-015
pub
MX0000092554
| Informacion tecnica | |
|---|---|
| Technical Specifications | |
| Model | AP-FIC-010A-015 |
| IP Camera Compatibility | |
| Video Resolution | Megapixel/D1/VGA |
| Video Compression | MJPEG/MPEG-4/H.264/H.265 |
| Compatible Camera List | VIVOTEK Network Cameras * Only IEEE 802.3af PoE Cameras |
| Ethernet | |
| Fast Ethernet (RJ45) | 1 |
| Standards | |
| IEEE 802.3 10-BASE-T (Ethernet) | Supported |
| IEEE 802.3u 100-BASE-TX (Fast Ethernet) | Supported |
| IEEE 802.3af Power over Ethernet | Supported |
| Transmission Media | |
| 10Base T | Cat. 3, 4, 5 UTP/STP |
| 100Base TX | Cat. 5, 5e UTP/STP *It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard. |
| PoE Function | |
| Number of PoE Port | 1 |
| Max. PoE Output Power/Per Port | 54VDC/15.4W |
| 802.3af Standard Compatible | Yes |
| Over Current Protection | Supported |
| Circuit Shorting Protection | Supported |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE PD Auto Detection | Supported |
| General | |
| LED Indicators | Power, PoE |
| Power Input | 100~240V AC / 50~60Hz |
| Power Consumption | 19 W |
| Dimensions | 146 (L) x 64 (W) x 42 (H) mm |
| Weight | 0.2 kg |
| Operating Temperature | 0°C ~ 50°C (32°F ~ 122°F) |
| Storage Temperature | -20°C ~ 70°C (-4°F ~ 158°F) |
| Humidity | Operating: 10~90% (Non-condensing) Storage: 10~90% (Non-condensing) |
| Safety Certifications | CE, C-Tick, FCC, VCCI, LVD |
| Accessories | |
| Included Accessories | Power cord, QIG |
| Marca | Vivotek |
|---|---|
| MPN: | AP-FIC-010A-015 |
