Impinj IPJ-R700-341 r700 rain rfid reader 4-port fccgx
Precio especial $40,225.00 IVA incluido + Envio $150 MXN
Antes $46,661.00
Disponible 48 Pzas
Antes $46,661.00
Disponible 48 Pzas
sku: IPJ-R700-341
pub
MX0000092393
*Solicite ayuda en chat si hay dudas sobre el producto

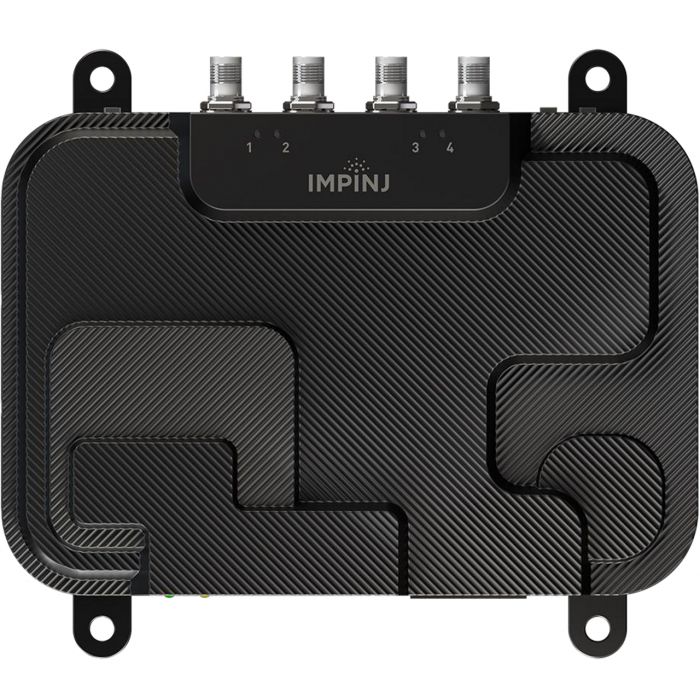

Impinj R700 RAIN RFID Reader
The Impinj R700 RAIN RFID Reader is designed to support global enterprise RAIN deployments that need high performance and reliability. The Impinj R700 reader delivers industry-leading performance, enterprise reliability and security, and modern developer tools. IoT developers can easily build and deploy custom enterprise applications with a Linux OS, REST API, and native support for industry-standard data formats and protocols, such as MQTT. The Impinj R700 delivers increased support for on-reader applications – including 10x the processing power. Plus, when combined with tags based on Impinj M700 series tag chips, the Impinj R700 advances RAIN RFID performance at dock doors, conveyors, and store exits.
Impinj IPJ-R700-341 Specifications
- 4 monostatic ports (Reverse Polarity TNC)
- Linux based OS with 1 GB Flash; 1G RAM
- Multicolor LEDs: System Status, Inventory, Firmware Upgrade, Antenna Activity and Network Activity
- GPIO: 3 inputs, 2 outputs, optically isolated
- 10/100/1000 BaseT Ethernet (RJ45) w/ POE support; 3 USB Host Ports (Type A), 1 Micro Device
- Support for POE and POE+ (Power Over Ethernet)
- US (only) Reader: 902 MHz to 928 MHz
- Small Footprint and Rugged Construction
- LLRP Host Interface Protocol
| ELECTRICAL: | |
|---|---|
| Air Interface Protocol: | EPCglobal UHF Class 1 Gen 2 v2 (ISO 18000-63) |
| Operating Frequency: | UHF (865 - 928 MHz), region dependent |
| Transmit Power: | +30 dBm (PoE), +33 dBm (PoE+) |
| Max Receive Sensitivity: | -92 dBm |
| Max Read Distance: | Not published |
| Max Read Rate: | Up to 1,100 reads per second |
| Data Interface: | Ethernet (RJ45 ), USB |
| GPIO: | 3 out, 2 in optically isolated |
| Power Source: | PoE (802.3af), PoE+ (802.3at) with LLDP for power negotiation |
| MECHANICAL: | |
| Antenna Ports: | 4 RP-TNC female ports (connects to RP-TNC male), expandable to 32 antennas with Impinj R700 Antenna Hub |
| Dimensions (Without Brackets): | 213.36 x 149.86 x 30.48 mm (8.4 x 5.9 x 1.2 in) |
| Dimensions (With Bracket): | 213.36 x 187.96 x 30.48 mm (8.4 x 7.4 x 1.2 in) |
| Weight: | 0.96 kg (2.12 lbs) |
| ENVIRONMENT: | |
| IP Rating: | IP 50 |
| Operating Temperature: | -4°F to 122°F (-20°C to 50°C) |
| APPLICATION INTERFACE: | |
| Host API: | Impinj IoT device interface or REST API |
| Demo Software: | ItemTest |
| Marca | Otros |
|---|---|
| MPN: | IPJ-R700-341 |
