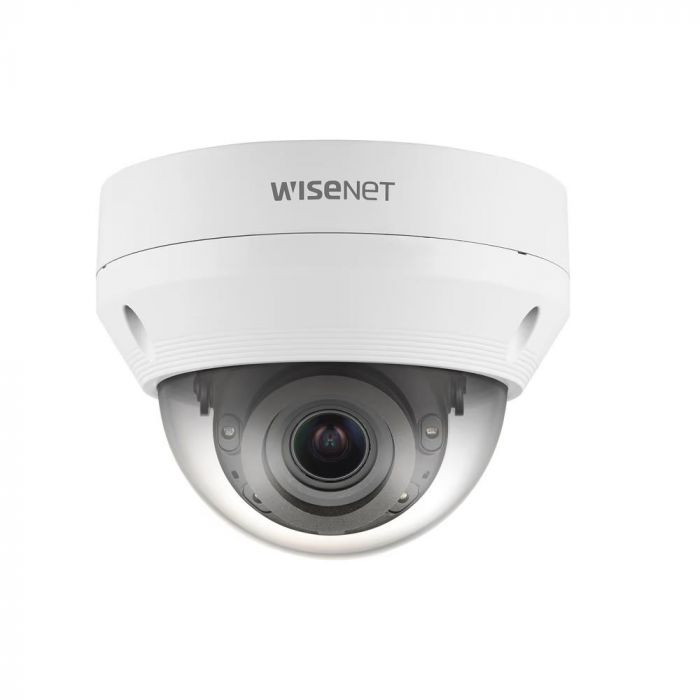

Hanwha Techwin Wisenet QNV-8080R cámara ip tipo domo antivandálica 5 megapíxel lente motorizado 32 - 10mm ir 30m wdr 120db exterior ip66 h265 & wisestream
Precio especial $12,108.00 IVA incluido + Envio $150 MXN
Antes $14,045.00
Disponible 15 Pzas
Antes $14,045.00
Disponible 15 Pzas
sku: QNV-8080R
pub
MX0000092257
H.265 + WiseStream
Mediante WiseStream, la tecnología de compresión de vídeo de Hanwha Techwin, la serie Wisenet X reduce el almacenamiento de datos hasta un 75% en comparación con la actual tecnología H.264, cuando se combina con la compresión H.265. Los costes del sistema se reducen enormemente sin comprometer la calidad de las imágenes.Lente Varifocal para mejor visualización a mayor distancia.
La serie Q de Wisenet, le ofrece lentes varifocales de 3.2 - 10 mmpara tener un mayor alcance de visualización cuando se requiere distinguir objetos a distancia. El alcance del lente se puede apreciar en el video.Detección de Movimiento
Detección de Sabotaje
Detección de Desenfoque
Detección de Dirección
Linea Virtual
Entrada / Salida
Características principales:
- Sensor de imagen: 1/2.8 CMOS Scan Progresivo.
- Iluminación mínima: Color: 0.095Lux, B/N: 0Lux con IR encendido.
- Día / Noche real con filtro ICR.
- Lente motorizado: 3.2 - 10 mm.
- Distancia de IR: 30 m IR inteligente.
- Funciones: WDR real (120dB).
Compresión de vídeo y resolución máxima:
- Resolución máxima: 5 Megapíxel (2592 x 1944)
- Compresión: H.265, H.264, MJPEG.
- Almacenamiento: Soporta microSD de hasta 128GB (no incluida).
- ONVIF: Profile S/G, SUNAPI (HTTP API).
Características físicas y eléctricas:
- Temperatura de operación: -10 a 55 °C, humedad menor a 90%.
- Alimentación: PoE (802.3af) / 9.5 W.
- Tipo de uso: Exterior / IP66 / IK10
- Dimensiones: Ø 137 x 106.1 mm.
- Peso: 700 g.
Nota: En condiciones de alta humedad agregar la tira absorbente que se incluye como accesorio en el equipo.
3 años de garantía.
QNV-8080R
Max. 5Megapixel (2592 x 1944) resolution 3.2~10mm(3.1x) motorized varifocal lens 0.15Lux (Color), 0Lux (B/W, IR LED on) Max. 30fps@5MP (H.265 / H.264) H.265, H.264, MJPEG codec support, Multiple streaming Day & Night, WDR (120dB) Tampering, Motion detection, Defocus detection Micro SD / SDHC / SDXC memory slot (Max. 128GB) Hallway view, WiseStream II support IR Viewable length 30m IP66, IK10, PoE
Technical Information
| Performance | |
|---|---|
| Languages support | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish |
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Design | |
| IK code | IK10 |
| Form factor | Dome |
| Product colour | White |
| Mounting type | Ceiling |
| Protection features | Vandal proof |
| LED indicators | Yes |
| International Protection (IP) code | IP66 |
| Housing material | Aluminum |
| Camera | |
| Adjustment shutter speed | Manual |
| Minimum illumination | 0.15 lx |
| Tilt angle range | 0 - 67° |
| Pan range | 0 - 350° |
| White balance | ATW, AWC, Indoor, Manual, Outdoor |
| Camera shutter type | Electronic |
| Lens viewing angle, horizontal | 100.3° |
| Lens viewing angle, vertical | 72.3° |
| Lens viewing angle, diagonal | 133.1° |
| Progressive scan | Yes |
| Image sensor | |
| Number of effective pixels (H x V) | 2592 x 1944 pixels |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 1/2.8' |
| Lens system | |
| Maximum aperture number | 1.6 |
| Focal length range | 3.2 - 10 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Video | |
| Noise reduction | Yes |
| Privacy masking | Yes |
| Flip & mirror | Yes |
| Gain control type | Manual |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Back Light Compensation (BLC) | Yes |
| Video compression formats | H.264, H.265, M-JPEG |
| Maximum resolution | 2592 x 1944 pixels |
| Supported graphics resolutions | 640 x 360, 640 x 480 (VGA), 720 x 480, 768 x 576, 800 x 448, 800 x 600 (SVGA), 1280 x 960, 1920 x 1080 (HD 1080), 2592 x 1944 |
| Video streaming | Yes |
| Total megapixels | 5 MP |
| Network | |
| Bluetooth | No |
| Ethernet interface type | 10 Gigabit Ethernet, 100 Gigabit Ethernet |
| Networking standards | IEEE 802.1x |
| Quality of Service (QoS) support | Yes |
| Number of users | 6 user(s) |
| Streaming method | Multicast, Unicast |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| Storage | |
| Maximum memory card size | 128 GB |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Technical details | |
| Video compression formats | H.264, H.265, M-JPEG |
| Type | IP security camera |
| Form factor | Dome |
| Placement supported | Outdoor |
| Product colour | White |
| Mounting type | Ceiling |
| Protection features | Vandal proof |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Progressive scan | Yes |
| Security | |
| Alert notification type | |
| Video motion detection | Yes |
| IP address filtering | Yes |
| Active tampering alarm | Yes |
| Material | |
| Housing material | Aluminum |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 8.9 W |
| Power consumption (typical) | 6.6 W |
| Indication | |
| LED indicators | Yes |
| Certificates | |
| International Protection (IP) code | IP66 |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 55 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Weight & dimensions | |
| Height | 4.18' (106.1 mm) |
| Diameter | 5.39' (13.7 cm) |
| Weight | 24.7 oz (700 g) |
| Other features | |
| Video compression formats | H.264, H.265, M-JPEG |
| Marca | Otros |
|---|---|
| MPN: | QNV-8080R |
