Lg 55VM5J 55VM5J-h signage display digital flat panel 55" 500 cd/m² full hd black web os 24/7
Precio especial $29,055.00 IVA incluido + Envio $150 MXN
Antes $33,704.00
Disponible 4 Pzas
Antes $33,704.00
Disponible 4 Pzas
sku: 55VM5J
pub
MX0000092184
*La siguiente ficha tecnica en en referencia al modelo 55VM5J-H , antes ofertar contacta al chat por dudas para su adquisicion.

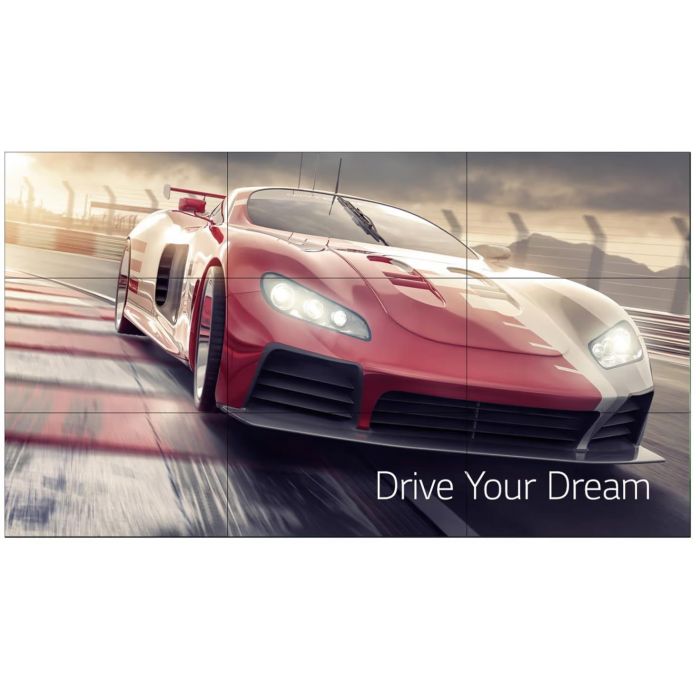

Seamless Large Screens with Extreme-Narrow Bezel
The ultra slim bezel, with its 1.74mm BtoB (Panel Bezel to Panel Bezel), drastically reduces bezel interference and delivers immersive and seamless content on assembled video wall screens. Image Gap Reduction The VM5J-H includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.
Higher Viewing Angle Large screens are usually positioned higher than human-eye level. Wide half luminance angle (40°) enables effective picture quality for video walls. The viewing angle of the VM5J-H is high enough to display vivid colors throughout the screen without any color distortion.
Wider Viewing Angle LG IPS panel technology enables stable and smooth control of liquid crystals, and allows the screen to be viewed from virtually any angle. Therefore, the VM5J-H captivates the attention of more viewers with lifelike colors, regardless of their viewing position.
Easy Color Adjustment Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.
Simple White Balance Adjustment In conventional video walls, white balance was adjustable only in “full-white” mode, but the VM5J-H allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.
High Performance and Great Scalability Thanks to its built-in SoC and webOS smart signage platform, the VM5J-H can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK (Software Development Kit), it is even easier for SIs to build and optimize their web apps.
Flexible Content Creation Four different videos can be played simultaneously via web apps, and various animation effects, such as scaling or rotating, are added to content using CSS (Cascading Style Sheets) transition effects. Real-time streaming is also available, providing the flexibility to organize and diversify content free from capacity limits.
Intuitive Menu Structure The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-and-error when exploring desired functions and managing displays.
Dedicated GUI for Portrait Orientation The conventional GUI (Graphic User Interface) was designed based on landscape-oriented consumer TV usage, so OSD (On Screen Display) wasn’t well-suited for screens in portrait mode. The OSD of the VM5J-H, however, consists of a long range menu with bigger font sizes and a 9:16 ratio, creating a comfortable and efficient business environment.
Conformal Coating Video wall in various places can’t avoid exposure to environments with dust, and humidity, which may lead to hampered performance over time. Conformal coating on the major circuit board (power board) significantly reduces these risks from such environments by protecting video wall from salt, dust, iron powder, humidity, etc. EMC Class B Certified The VM5J-H is certified as EMC Class B, which requires electronic equipment made for use in residential environments as well as commercial, industrial, or business environments. Therefore, it is suitable for up-close uses such as corporate meeting rooms, board rooms, etc.
Real-Time LG ConnectedCare Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients’ businesses.
Daisy Chain Capability A LAN daisy chain allows you to control and monitor video walls and even update their firmwares at once. Also, through UHD daisy chain using HDMI and DisplayPort, you can easily set up a UHD video wall without the need of DisplayPort MST.
IP5x Certified Design The IP5x Dust-Proof Certification ensures that the product is protected from dust, eliminating the risk of performance degradation
Technical Information
| Display | |
|---|---|
| Display number of colours | 1.07 billion colors |
| Panel type | IPS |
| Touchscreen | No |
| Display diagonal | 55' |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 500 cd/m² |
| HD type | Full HD |
| Response time | 8 ms |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 500000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Panel life | 60000 h |
| Native aspect ratio | 16:9 |
| Native refresh rate | 60 Hz |
| Haze rate | 28% |
| RGB colour space | NTSC |
| Ports & interfaces | |
| Remote (IR) input | 1 |
| USB port | Yes |
| HDMI version | 2.2 |
| RS-232C | Yes |
| DisplayPorts quantity | 1 |
| Ethernet LAN | Yes |
| HDMI ports quantity | 3 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB version | 2.0 |
| USB ports quantity | 1 |
| HDMI input ports quantity | 2 |
| HDMI output ports quantity | 1 |
| Audio | |
| Built-in speaker(s) | No |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Bezel width (top) | 0.0980' (2.49 mm) |
| Bezel width (side) | 0.0689' (1.75 mm) |
| Bezel width (bottom) | 0.0291' (0.74 mm) |
| Product colour | Black |
| Panel mounting interface | 600 x 400 mm |
| Certification | FCC Class 'B' / CE / KC ErP - EU Only |
| VESA mounting | Yes |
| Wall mountable | Yes |
| Performance | |
| Purpose | Universal |
| Operating hours (hours/days) | 24/7 |
| International Protection (IP) code | IP5X |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
| Open Pluggable Specification (OPS) | Yes |
| Panel life | 60000 h |
| Power | |
| Heat dissipation | 648 BTU/h |
| Power consumption (off) | 0.5 W |
| Power consumption (typical) | 160 W |
| Power consumption (standby) | 105 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Computer system | |
| Computer system | Yes |
| Operating system installed | Web OS |
| Internal memory | 8 GB |
| Built-in processor | No |
| Weight & dimensions | |
| Width | 47.7' (1212.2 mm) |
| Depth | 3.42' (86.9 mm) |
| Height | 26.9' (683 mm) |
| Weight | 41.4 lbs (18.8 kg) |
| Display width | 47.7' (1212.2 mm) |
| Display depth | 3.42' (86.9 mm) |
| Display height | 26.9' (683 mm) |
| Display weight | 41.4 lbs (18.8 kg) |
| Packaging data | |
| Package width | 53.3' (1353 mm) |
| Package depth | 10.4' (263 mm) |
| Package height | 33.7' (855 mm) |
| Package weight | 68.3 lbs (31 kg) |
| Batteries included | Yes |
| Remote control included | Yes |
| Cables included | AC, DisplayPort, LAN (RJ-45) |
| Packaging content | |
| Batteries included | Yes |
| Remote control included | Yes |
| Cables included | AC, DisplayPort, LAN (RJ-45) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Certificates | |
| Certification | FCC Class 'B' / CE / KC ErP - EU Only |
| Technical details | |
| VESA mounting | Yes |
| Panel type | IPS |
| Sustainability certificates | ENERGY STAR |
| Thin Client | |
| Operating system installed | Web OS |
| Internal memory | 8 GB |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Features | |
| Harmonized System (HS) code | 85285210 |
| Wall mountable | Yes |
| Other features | |
| Panel type | IPS |
| Bezel width (top) | 0.0980' (2.49 mm) |
| Bezel width (side) | 0.0689' (1.75 mm) |
| Bezel width (bottom) | 0.0291' (0.74 mm) |
| Marca | Lg |
|---|---|
| MPN: | 55VM5J |
