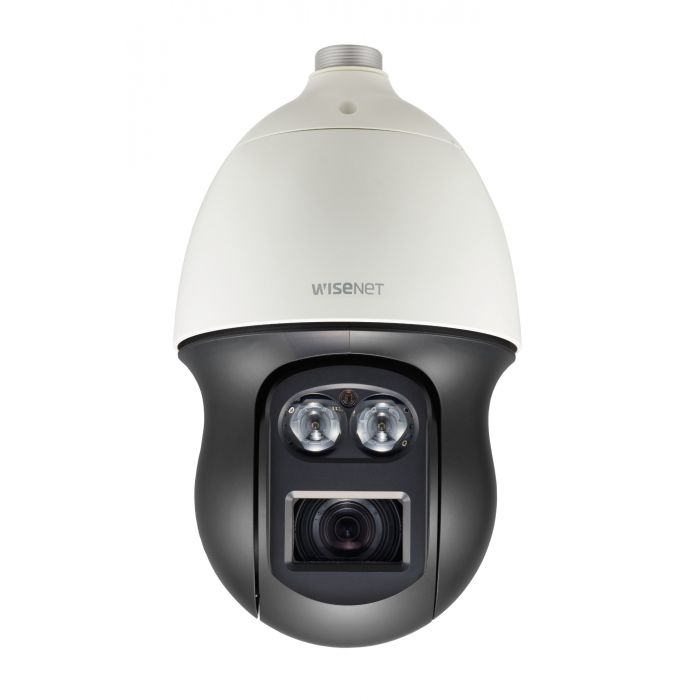

Hanwha XNP-6550RH security camera dome ip indoor & outdoor 1920 x 1080 pixels ceiling
Precio especial $75,583.00 IVA incluido + Envio $150 MXN
Antes $87,676.00
Disponible 0 Pzas
Antes $87,676.00
Disponible 0 Pzas
Agotado
pub
MX0000092074
XNP-6550RH 2M 55x Network IR PTZ Dome Camera
Technical Information
| Performance | |
|---|---|
| Infrared (IR) cut-off filter | Yes |
| Remote viewing | Yes |
| PTZ modes | Preset sequence |
| PTZ protocols | PELCO-D |
| Fog proof | Yes |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Indoor & outdoor |
| Auto-tracking | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Design | |
| IK code | IK10 |
| Fog proof | Yes |
| Form factor | Dome |
| Product colour | Black, Ivory |
| Mounting type | Ceiling |
| Protection features | Vandal proof |
| International Protection (IP) code | IP66 |
| Housing material | Aluminum, Plastic |
| Camera | |
| Pan preset speed | 400 °/sec |
| Minimum illumination | 0.002 lx |
| Tilt angle range | -5 - 90° |
| Tilt speed | 250 °/sec |
| Pan range | 0 - 360° |
| Pan speed | 250 °/sec |
| White balance | ATW, AWC, Indoor, Manual, Mercury lamp, Outdoor, Sodium lamp |
| Camera shutter type | Electronic |
| Camera shutter speed | 2 - 1/12000 s |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 58.6° |
| Lens viewing angle, vertical | 34.8° |
| Progressive scan | Yes |
| Image sensor | |
| Number of effective pixels (H x V) | 1945 x 1097 pixels |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 1/2.8' |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 6.5 |
| Auto focus | Yes |
| Closest focusing distance | 196.9' (5 m) |
| Minimum aperture number | 1.6 |
| Zoom capability | Yes |
| Optical zoom | 55x |
| Digital zoom | 32x |
| Focal length range | 4.75 - 261.4 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 500 m |
| LED type | IR |
| Video | |
| Noise reduction | Yes |
| Text caption overlay | Yes |
| Privacy masking | Yes |
| Flip & mirror | Yes |
| Image stabilizer | Yes |
| Highlight Compensation (HLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
| Back Light Compensation (BLC) | Yes |
| Noise reduction technology | 3D noise reduction |
| Video compression formats | AVC, H.264, H.265, M-JPEG, MPEG4 |
| Maximum resolution | 1920 x 1080 pixels |
| Video formats supported | AVC, H.264, H.265, M-JPEG, MPEG4 |
| Supported graphics resolutions | 320 x 240, 640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080) |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Total megapixels | 2.16 MP |
| Audio | |
| Sample rate | 16 kHz |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Audio system | 2-way |
| Audio formats supported | AAC-LC, ADPCM, G.711, G.726 |
| Audio detection | Yes |
| Network | |
| Ethernet interface type | Fast Ethernet |
| Quality of Service (QoS) support | Yes |
| Number of users | 20 user(s) |
| Streaming method | Multicast, Unicast |
| Ethernet LAN | Yes |
| Supported network protocols | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/ v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Storage | |
| Maximum memory card size | 512 GB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Ports & interfaces | |
| RS-485 ports | 1 |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Composite video out | 1 |
| Connectivity technology | Wired |
| Technical details | |
| Video compression formats | AVC, H.264, H.265, M-JPEG, MPEG4 |
| Type | IP security camera |
| Form factor | Dome |
| PTZ control | Yes |
| Placement supported | Indoor & outdoor |
| Product colour | Black, Ivory |
| Mounting type | Ceiling |
| Protection features | Vandal proof |
| Auto-tracking | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Progressive scan | Yes |
| Security | |
| Alert notification type | |
| Intelligent Video Surveillance (IVS) system features | Crossing line, Face detection, Missing object |
| Video motion detection | Yes |
| Security algorithms | 802.1x RADIUS, EAP-TLS |
| IP address filtering | Yes |
| Active tampering alarm | Yes |
| Material | |
| Housing material | Aluminum, Plastic |
| Software | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra |
| Management features | |
| Web browser | Yes |
| Web-based management | Yes |
| Power | |
| Power source type | AC, PoE |
| Power consumption (max) | 90 W |
| Power consumption (Power over Ethernet (PoE)) | 60 W |
| AC input voltage | 24 V |
| Certificates | |
| International Protection (IP) code | IP66 |
| Operational conditions | |
| Operating temperature (T-T) | -50 - 55 °C |
| Storage temperature (T-T) | -50 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra |
| Weight & dimensions | |
| Width | 9.33' (236.9 mm) |
| Depth | 9.33' (236.9 mm) |
| Height | 16.1' (407.7 mm) |
| Diameter | 9.33' (23.7 cm) |
| Weight | 15.7 lbs (7.1 kg) |
| Packaging content | |
| Number of cameras | 1 |
| Other features | |
| Video compression formats | AVC, H.264, H.265, M-JPEG, MPEG4 |
| Marca | Otros |
|---|---|
| MPN: | XNP-6550RH |
