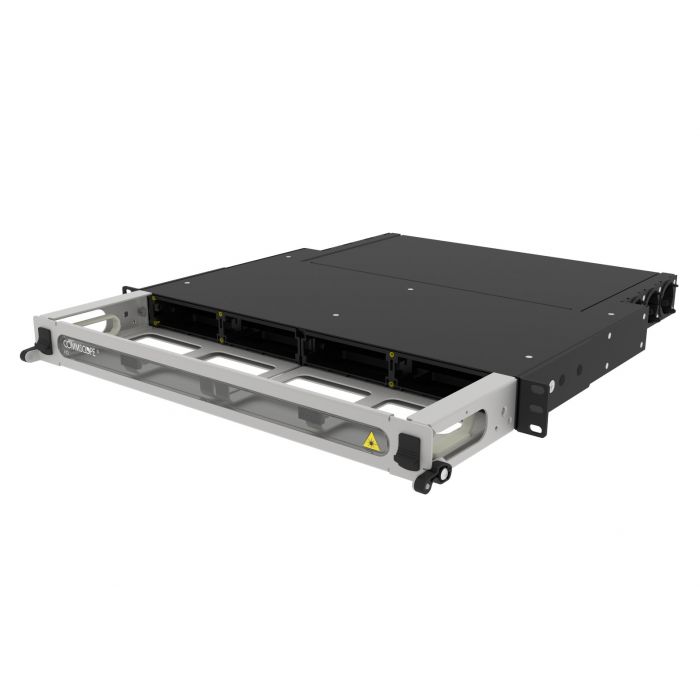

Commscope 760209940 | HD-1U high density 1u modular cassette sliding panel, accepts (4) g2 modules or mpo panels, providing up to 48 duplex lc ports, 32 ports
Precio especial $8,602.00 IVA incluido + Envio $150 MXN
Antes $9,978.00
Disponible 28 Pzas
Antes $9,978.00
Disponible 28 Pzas
sku: HD-1U
pub
MX0000091995
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Fiber patch panel |
| Product Series | HD |
General Specifications
| Application | Accepts four G2 modular cassettes |
| Color | Black | Silver |
| Intelligence Type | iPatch® ready |
| Interface, front | Unloaded |
| Rack Type | EIA 19 in |
| Rack Units | 1 |
| Shelf Movement | Sliding |
Dimensions
| Height | 44.45 mm | 1.75 in |
| Width | 482.6 mm | 19 in |
| Depth | 541.78 mm | 21.33 in |
| Material Thickness | 0.9 mm | 0.035 in |
Material Specifications
| Material Type | Steel |
Environmental Specifications
| Flammability Rating | UL 94 V-0 |
Packaging and Weights
| Packaging quantity | 1 |
| Weight, net | 5.625 kg | 12.4 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
| Marca | Otros |
|---|---|
| MPN: | HD-1U |
