Vivotek VC8201-M33 camara tipo pinhole
Precio especial $479.00 IVA incluido + Envio $150 MXN
Antes $556.00
Disponible 0 Pzas
Antes $556.00
Disponible 0 Pzas
Agotado
pub
MX0000091980
- Admite hasta 2 unidades de cámara.
- 2 opciones de cámara:1MP WDR o cámara Fisheye de 5MP.
- Para unidades de cámara de montaje empotrado.
- Micrófono incorporado.
- Conexión máxima de cable de 8 metros.
- Tipo de compresión H.264 y MJPEG en tiempo real.
- PoE integrado compatible con IEEE 802.3af.
- Reducción de ruido 3D.

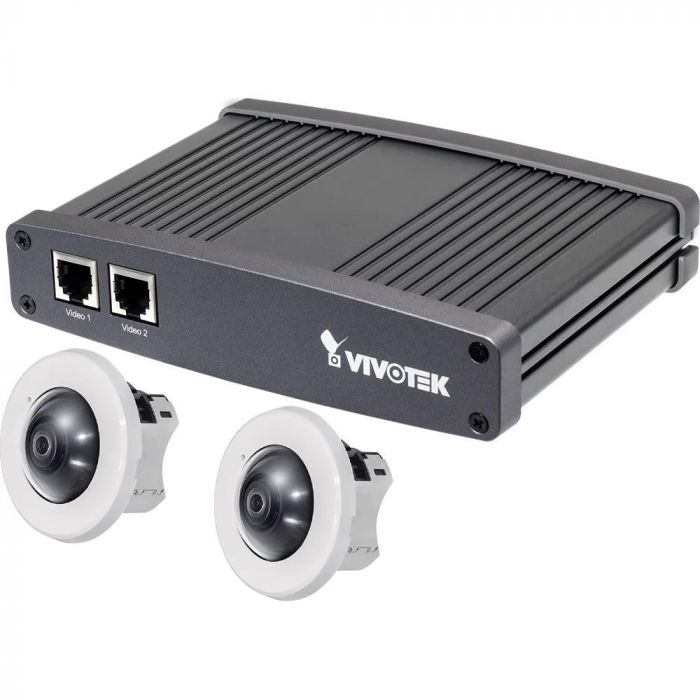

El innovador sistema VC8201 ejemplifica un enfoque innovador para las soluciones de front-end de vigilancia que separa el núcleo de procesamiento de video y las unidades de cámara. La unidad central físicamente independiente maneja las tareas de procesamiento de video, como el almacenamiento, la compresión y la interfaz con la red, y puede conectarse a una o a dos unidades de cámaras independientes.
Este enfoque de cámara/núcleo dividido proporciona una serie de ventajas sobre los diseños convencionales, incluida la capacidad de admitir varios tipos de cámara en una sola instalación, una apariencia de cámara más discreta, una instalación más sencilla, una mayor flexibilidad de implementación, reemplazo o actualizaciones de cámaras fáciles.
*Datos en ingles
Video Core
- Supports up to 2 camera units
- Maximum cable distance of 26.2’ from the camera unit (16.2’ cable included)
- Real-time H.264 and MJPEG compression
- Built-in IEEE 802.3af compliant PoE
- 3D noise reduction
Camera Units
- 5MP sensor and fisheye lens provide a 360° surround view without blind spots
- Recessed mount installation
- Built-in microphone
Vivotek VC8201-M33
System Information
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 256 MB |
| RAM | 512 MB |
| Onboard Storage | SD/SDHC/SDXC Card Slot |
Video
| Compression | H.264 & MJPEG |
| Video Source | Up to 2 CU8171 Camera Units |
| Maximum Streams | 3 Simultaneous streams per camera unit |
| Video Streaming | Adjustable resolution, quality, and bit rate Configurable video cropping for bandwidth saving |
| Image Settings | Adjustable image size, quality and bit rate Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks Scheduled profile settings, 3D Noise Reduction |
Audio
| Audio Capability | Audio input |
| Compression | GSM-AMR, G.711 |
| Interface | From camera unit |
Network
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X |
| Interface | 10Base-T/100 BaseTX Ethernet (RJ-45) |
| ONVIF | Supported, specification available at www.onvif.org |
| Video Motion Detection | Five-window video motion detection |
Alarm and Event
| Alarm Triggers | Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection |
| Alarm Events | Event notification using digital output, HTTP, SMTP, FTP and NAS server File upload via HTTP, SMTP, FTP and NAS server |
General
| Connectors | RJ-45 connector for Network/PoE connection 2 x RJ-12 connector for camera unit connection 12 VDC power input 2 x Digital input 2 x Digital output |
| LED Indicator | System power and status indicator |
| Power Input | 12 VDC IEEE 802.3af PoE |
| Power Consumption | Maximum 9.3 W (12 VDC) Maximum 10.8 W (PoE) |
| Certifications | CE, LVD, FCC Class B, VCCI, C-Tick |
| Operating Temperature | Starting Temperature: 32 to 122°F (0 to 50°C) Working Temperature: 14 to 122°F (-10 to 50°C) |
System Requirements
| Operating System | Microsoft Windows 7/Vista/XP/2000 |
| Web Browser | Mozilla Firefox 7~10 (streaming only) Internet Explorer 7.x or 8.x |
| Other Players | VLC: 1.1.11 or above QuickTime: 7 or above |
Physical
| Dimensions | 5.7 x 4.1 x 1.3' (14.5 x 10.5 x 3.2 cm) |
| Weight | 12.7 oz (360 g) |
Camera Unit
| Image Sensor | 1/2.5' Progressive CMOS in 2560 x 1920 |
| Maximum Resolution | 15 fps @ 1696 x 1696 |
| Focal Length | f = 1.27 mm |
| Aperture | F2.0 |
| Field of View | 180° (Horizontal) 180° (Vertical) 180° (Diagonal) |
| Shutter Time | 1/5 to 1/32,000 second |
| WDR Technology | WDR Enhanced |
| Minimum Illumination | 0.66 lux @ F2.0, 50 IRE (color) |
| Pan/Tilt | ePTZ: 12x digital zoom |
| S/N Ratio | Above 62 dB |
| Dynamic Range | 57 dB |
| Audio Capability | Built-in microphone |
| Operating Temperature | Starting Temperature: 32 to 104°F (0 to 40°C) Working Temperature: 14 to 104°F (-10 to 40°C) |
| Dimensions | 2.4 x 3.2' (6.0 x 8.1 cm) |
| Weight | 1.8 oz (51 g) |
| Marca | Vivotek |
|---|---|
| MPN: | VC8201-M33 |
