Vertiv U32-01201720-030-0-42307 ups exm 30kva 208v 3ph runtime 8 min 21kw
Antes $86,640,276.00
Disponible 0 Pzas

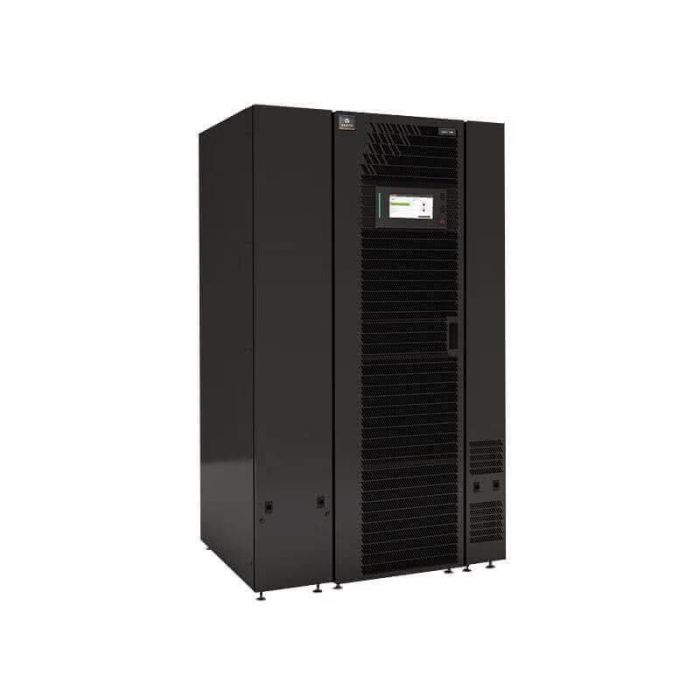

UPS Liebert eXM de 30 kVA
• Voltaje de entrada del sistema de 208 / 120V, 3 fases, 4 hilos más tierra
• Voltaje de salida del sistema de 208 / 120V, 3 fases, 4 hilos más tierra
• Sistema UPS de 30kVA
• Voltaje de salida nativo de 208V
• Configuración single input
• Banco de baterías interno para un tiempo de respaldo de 8 minutos a 21 kW
• Una (1) tarjeta IntelliSlot Unity Dual Protocol; P / N: IS-UNITY-DP; Supervisión y configuración de productos y sensores ambientales de Vertiv a través de interfaz de usuario web independiente o integración con Trellis TM, Liebert Nform, LIFE TM Services. Admite sistemas de gestión de terceros que utilizan SNMP, Modbus o BACnet.
• Kits de anclaje sísmico incluidos para la unidad principal Liebert EXM
• Arquitectura sin transformador: Eficiencia de hasta el 95% en modo de doble conversión
• Clasificación del factor de potencia de unidad: ofrece más potencia utilizable por kVA
• Cargar soporte de factor de potencia: admite cargas de 0,5 a la unidad sin reducción de potencia
• Modo de optimización energética (Eco-Mode)
• Clasificación 65kAIC: proporciona calificación de interrupción y etiquetado de 65 kA
• Convertidor de entrada de IGBT corregido de factor de potencia activo
• Inversor transistorizado PWM (IGBT)
• Interruptor de derivación estático de servicio continuo
Benefits
- Efficiency Winning operating efficiencies that remain high across multiple load scenarios.
- Transformer-free design saves space, capital, weight and shipping costs.
- Optimized ancillaries provide small footprints for better use of space and lower installation costs.
- Matching battery cabinets to meet extended runtime.
- Bypass Cabinet option allows maintenance without shutting down the critical load.
- Distribution Panel Board option to add more circuits
- UPSs can be paralleled to obtain more capacity or add system level redundancy.
- DCIM and BMS ready.
- Meet rapid deployment schedules
Features
- Unity Power Factor ensures more power is provided in a smaller footprint, thus increasing system capacity while minimizing cabling and installation costs.
- Industry leading efficiency rating: 97% for double conversion mode, and 99% for eco mode.
- Optimized ancillaries provide small footprints for better use of space and lower installation costs.
- Lithium-ion battery compatible (480V models)
- Comprehensive, easy to use touchscreen control panel.
- ENERGY STAR qualified.
- UL924 listed for Emergency Lighting.
- Native 208V or 480V
- Integrated Albér battery monitoring option can prevent pending battery issues, the most common cause of UPS failures.
- Configure to Delivery option in 4 Days (10-40kVA USA)
The Liebert EXM UPS is based on a reliable, double conversion power topology that uses an efficient transformer-free design. Excellent efficiencies of 97% are generated and can be enhanced to 99% using our unique Eco Mode. A unity power factor delivers more capacity in a smaller footprint. Available in a fixed capacity or a scalable, redundant configuration from 10-200kVA/kW, each utilizes a modular construction design with optimized ancillary cabinets designed to save the customer footprint and cost. The new touchscreen control panel ensures Status At A Glance convenience, flexible views and multiple security options. Intelligent controls and communications integrate with Liebert Nform, SiteScan and the Trellis Platform as well as 3rd party BMS and DCIM systems. LIFE Services provide 24x7 remote monitoring by our expert staff to improve availability and lower labor costs.
- PRODUCT OVERVIEW
- Power Rating
- 10-200kVA/kW
- Input Voltage
- 208V Input
- Output Voltage
- 208V Output
- Efficiency
- 99% Efficiency
| Marca | Vertiv |
|---|---|
| MPN: | U32-01201720-030-0-42307 |
